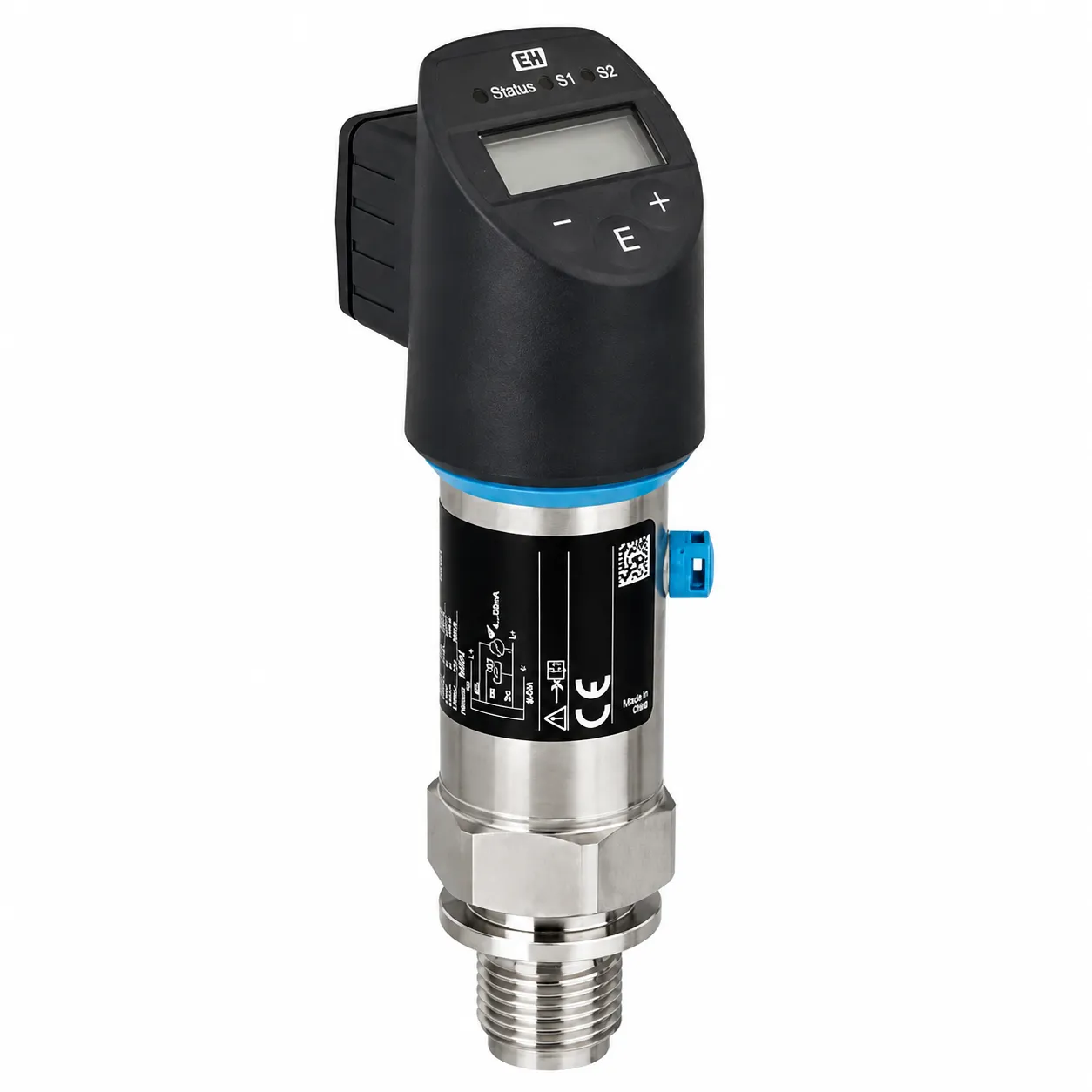

Absolute and gauge pressure Ceraphant PTP31B | Endress Hauser E+H

Cost-effective pressure switch with welded metal sensor for measurement in gases, steams or liquids

Automation Components

Specs at a glance

Measuring cell +400 mbar….+400 bar (+6 psi…+6000 psi)

Field of application

The Ceraphant PTP31B is a price-attractive pressure switch with piezoresistive sensor for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant for up to +400 bar. The IO-Link capability allows easy integration and parametrization of the device.

Benefits

Integrated switching electronics for decentral and economic process monitoring and control
Function check and information on-site thanks to LEDs and digital display
Overload-resistant sensor up to 400bar
Small flush mounted process connections
IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems.

Spare parts & accessories

	Description	Category	Order Code
1	Valve Plug ISO4400 M16, PTP/PTC3xB	further parts	71336104
2	Valve plug ISO4400 NPTF1/2, PTP/PTC3xB	further parts	71336105
3	Flat gasket 18,5×23,9×1,5 FKM, 5 pieces	further parts	52009800
4	Sealing kit PMPx1, PTP31B, FKM, 2 pcs.	further parts	71286350
5	M12-female plug connector, cable side		52006263
6	M12-female plug connec., 100deg,5m cable		52010285
7	M12-female plug connec.,90deg,cable side		71114212
8	Weld-in adapter G1/2, 316L		52002643
9	Weld-in adapter G1/2, 316L, 3.1		52010172
10	Weld-in adapter G1/2, 316L, A DIN 3852		71389241
11	Weld-in adapter G1/2,316L, 3.1,A DIN3852		71389243
