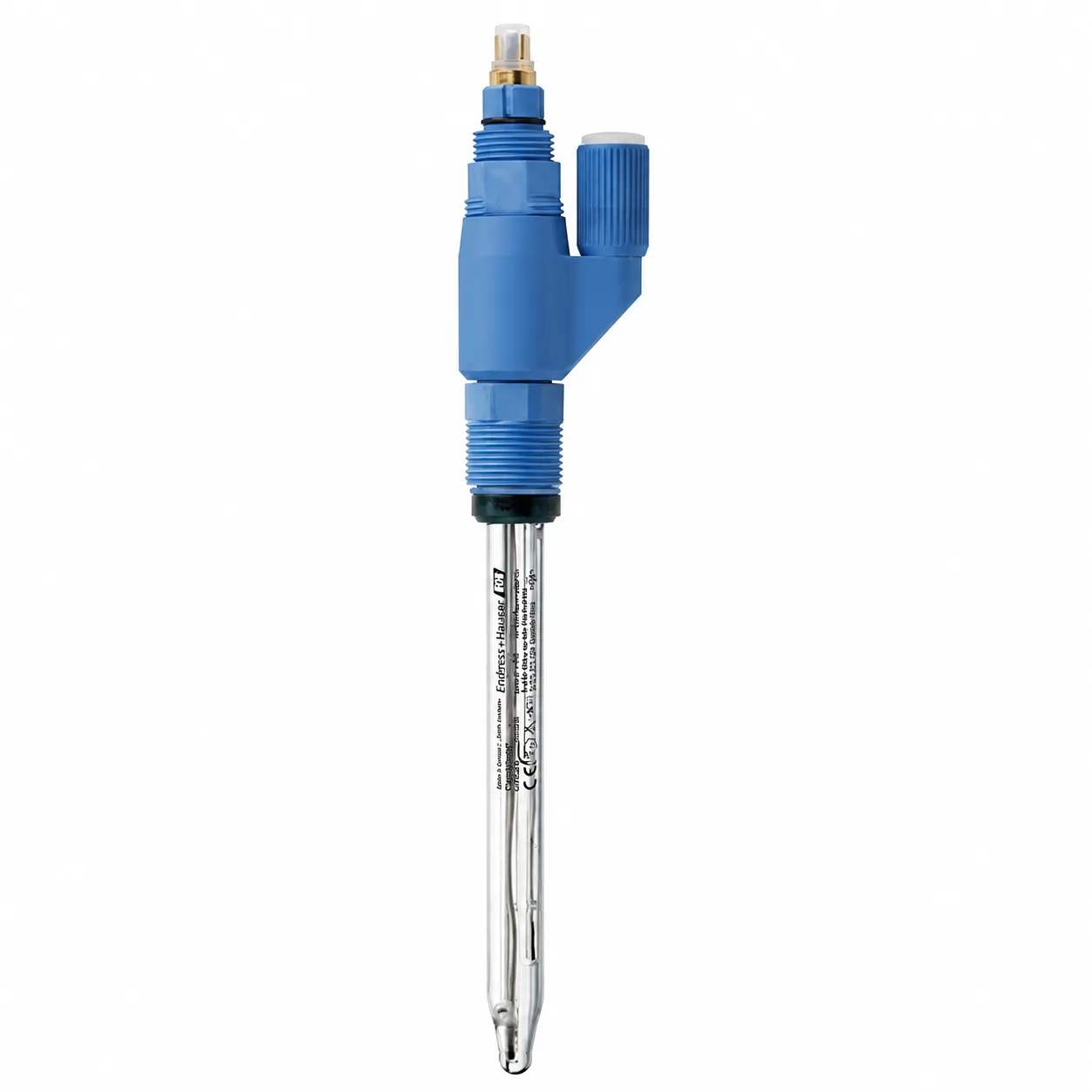

Analog pH sensor Ceraliquid CPS41 | Endress Hauser E+H

Glass electrode for applications with fast changing medium compositions or lowconductivity

Automation Components

Specs at a glance

Measuring range pH 0-14
Process temperature max. 135°C (274°F)
Process pressure max. 10bar (145psi)

Field of application

Ceraliquid CPS41 is the analog high performer for pH measurement in harsh chemical applications and media with low conductivity or a considerable content of organic solvents. The sensor is designed for fast response guaranteeing you high process safety even in applications with quickly changing medium compositions.

Benefits

Resistant to poisoning due to constant refilling of KCl bridge electrolyte and separate reference lead
Applicable at very low conductivities (= 0.1 µS/cm) thanks to liquid KCl electrolyte
Suitable for cleaning in place (CIP) and sterilization in place (SIP)
Perfectly suited for quickly changing media: Combination of liquid KCl electrolyte and ceramic diaphragm enables fast response time

Spare parts & accessories

	Description	Category	Order Code
1	Kit CPSxx protective caps	further parts	71538217
2	Memoclip label memosens cable		71038229
3	KCL-Electrolyte solution CPY4		CPY4-
4	Technical buffer solution CPY20		CPY20-
5	Elektrolyte reservoir CPY7B		CPY7B-
