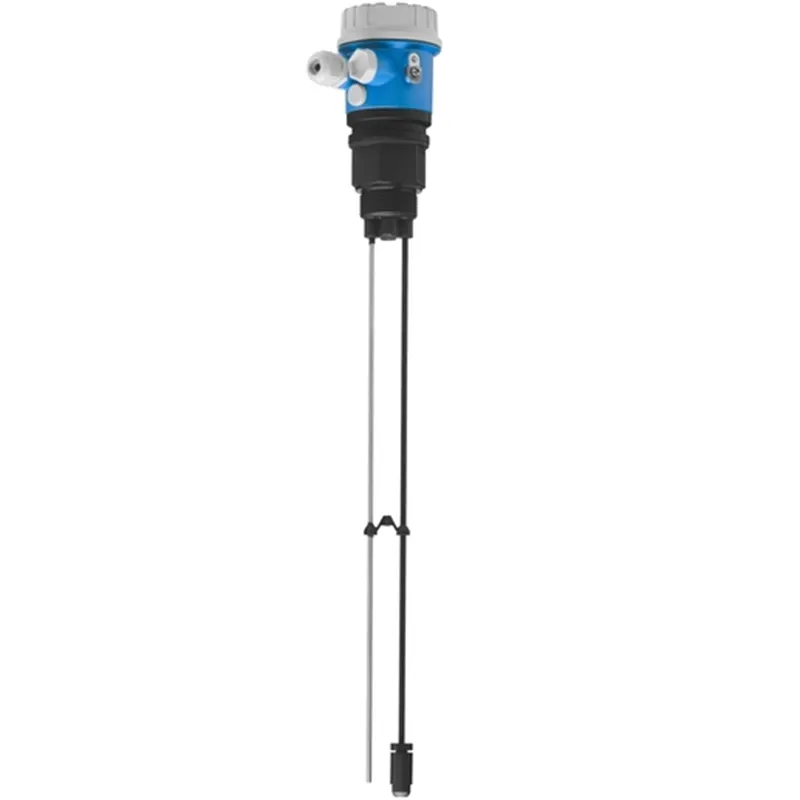

Capacitance Level measurement Liquicap FMI21 | Endress Hauser E+H

For continuous level measurement in conductive liquids

Automation Components

Specs at a glance

Accuracy < 1%
Process temperature -40 °C … 100 °C (-40 °F … 212 °F)
Process pressure / max. overpressure limit Vacuum … 10 bar (Vacuum … 145 psi)

Max. measurement distance 2.5 m (8 ft)
Main wetted parts Probe rods: 316L/1.4404 / PP Option: carbon fibre PP coated

Field of application

Liquicap FMI21 is a simple and cost-effective rod probe for continuous level measurement for conductive liquids. High quality non-corrosive materials (carbon fibre, stainless steel) make it suitable even for aggressive liquids (e.g. acids and alkalis). Used in conjunction with the Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.

Benefits

Safe and reliable function regardless of tank geometry
No calibration necessary (factory preconfiguration)
High quality, non-corrosive materials (carbon fibre, stainless steel) for use in aggressive liquids

No moving parts in tank
Cost-effective solution for continuous level measurement
Optimized storage by simply shortening the probe rods on site

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Cover F16 high, transparent, gasket	Cover	20	52025605
2	Cover F16 grey, PBTP, gasket	Cover	20	52025606
3	O-ring 71.0×3.55 EPDM, 5 pieces	Sealing	21	52004137
4	Electronics FEI20	Electronic	30	52025603
5	Digital display, holder	Display	40	52025604
6	Spacer probe rods, 5 pcs.	Miscellaneous	55	52025607
7	Sealing ring G1-1/2, 48×55 FA, 5 pcs.	further parts	57	52014047
8	Shorting kit FMI21			52024300
9	Protection cover F16 housing			71127760
10	Mounting nut G1-1/2, PC			52014146
