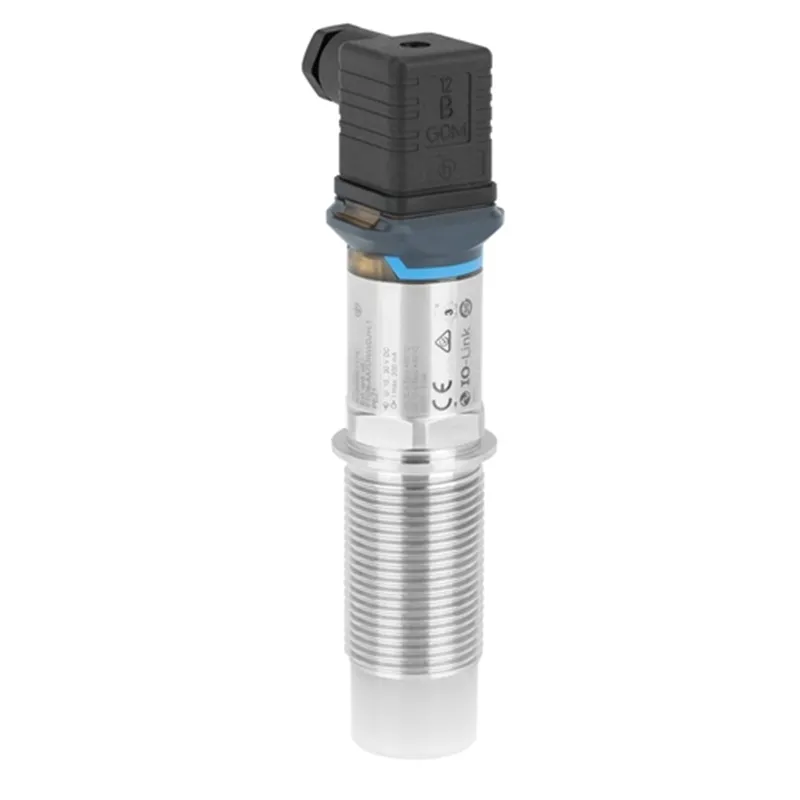

Capacitance Point level detection Nivector FTI26 | Endress Hauser E+H

For all types of powdered and fine-grained solids especially in the food industry

Automation Components

Specs at a glance

Process temperature -20°C…+80°C (-4°F…+176°F)

Field of application

The Nivector FTI26 is a cost-efficient point level switch for solids in the food industry and powder applications in all industries. The capacitance device convinces with the best build-up performance in class and a high sensitivity. All industry compliant certificates are available. In addition, the FTI26 is industry 4.0 ready with IO-Link communication.

Benefits

Easy installation even in tight conditions or where access is restricted thanks to the compact design

Fulfillment of all relevant hygienic requirements (3A, EHEDG, FDA, EG1935/2004); cleanable (IP69)

IO-Link reduces costs and complexity with an easy configuration of the devices via engineering tools

Best build-up performance in class and high sensitivity
No individual adjustment to each medium necessary
LED signalization for on-site function check

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Valve Plug ISO4400 M16, 4-pole	further parts		71280307
2	Valve plug ISO4400 NPTF1/2, 4-pole	further parts		71280349
3	Test magnet			71267011
4	Protector G1-1/2, PBT-GF, FTI26			71395785
5	Protector R1-1/2, PBT-GF, FTI26			71395862
6	Protector NPT1-1/2, PBT-GF, FTI26			71416936
7	Hygienic process adapter G1>Clamp-2			71444431
8	Hygienic weld-in adapter G1, FTI26			71444432
9	Locking nuts G1, plastic PA			71395801
10	Ex-protection cover			71395803
11	Cable M12-plug to 90o M12-fem.plug,LED			52018763
12	M12-female plug connector, cable side			52006263
