Guided radar measurement Time-of-Flight Levelflex FMP53 | Endress Hauser E+H

For the highest hygiene requirements in the food and life sciences industry

Automation Components

Specs at a glance

Accuracy Rod probe:+/- 2 mm (0.08 in)
Process temperature -20…+150 °C (-4…+302 °F)
Process pressure / max. overpressure limit Vacuum…16 bar (Vacuum…232 psi)

Max. measurement distance Rod: 6 m (20 ft) Min DK>1.6
Main wetted parts Rod probe: 304, 304L, 316L, PEEK

Field of application

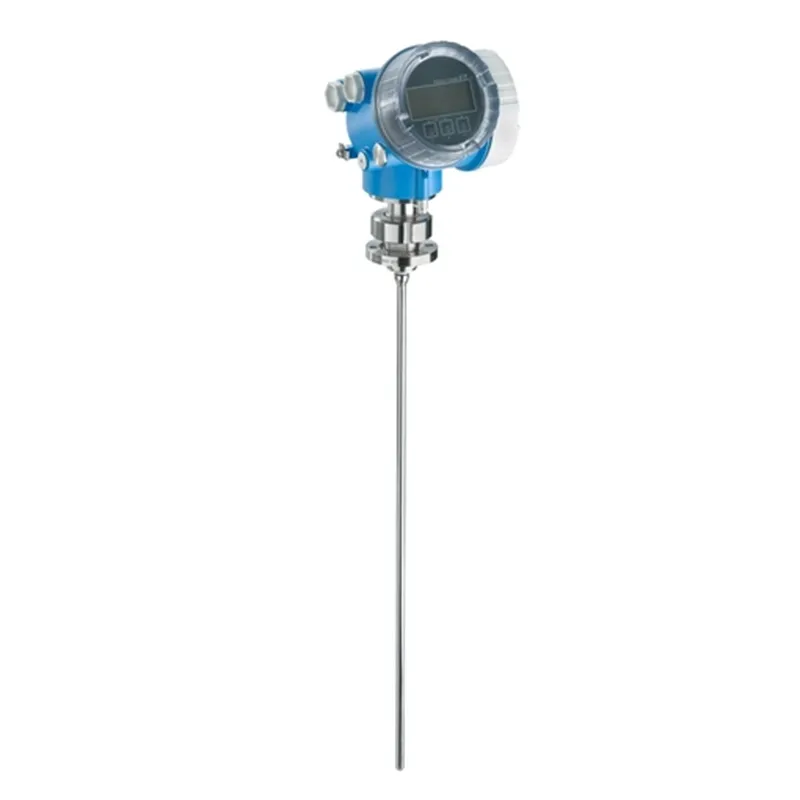

Levelflex FMP53 for continuous level measurement for hygienically sensitive applications in the food and life sciences industry. FMP53 meets the hygiene requirements according to ASME BPE and USP Class VI. The unique in situ validation without dismantling from the process is a cost saving advantage. FMP53 guided radar offers maximum reliability even in case of moved surface and foam, for changing medias and in case of filling via spray head.

Benefits

Reliable measurement even for changing product and process conditions

HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

Highest reliability due to new Multi-Echo Tracking evaluation
Hardware and software developed according to IEC 61508 up to SIL3
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

World’s easiest proof test for SIL and WHG saves time and costs

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Housing filter Brass/Ni GT19/20, 1 set	Filter	19	71115175
2	Set housing securing clamps	Housing/housing accessories	17	71115176
3	Cover GT18 316L, Terminal, OVP, HNBR	Cover	20	71185516
4	Cover GT19 PBT, EPDM	Cover	20	71110293
5	Cover GT19 PBT, Terminal, OVP, EPDM	Cover	20	71185518
6	Cover GT20 Alu, sight glass, HNBR	Cover	20	71110297
7	Cover GT20 Alu, HNBR	Cover	20	71110299
8	Cover GT19 PBT, sight glass, EPDM	Cover	25	71110292
9	Cover GT19 PBT, Terminal Ex, EPDM	Cover	20	71110295
10	Cover GT20 Alu, Terminal Ex, HNBR	Cover	25	71110301
11	Cover GT20 Alu, Terminal Ex d, HNBR	Cover	25	71110302
12	Cover GT20 Alu, Terminal, OVP, HNBR	Cover	25	71185517
13	Sealing set GT18/GT19/GT20, EPDM, HNBR	Sealing	65	71110303
14	Plug M12, IP66/68 NEMA4X/6P, ProToF	further parts		71450381
15	Electronics Levelflex FMP5x	Electronic	30	XPF0001-
16	Electronics Levelflex FMP5x	Electronic	30	XPF0001-
17	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
18	I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2	I/O module	34	71187812
19	I/O module 2-wire, 4-20mA, HART, Ex, V2	I/O module	34	71108594
20	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
21	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
22	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
23	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
24	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
25	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
26	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
27	I/O mod. Level, 2-wr.2×4-20mA,HART,Ex,V2	I/O module	34	71207474
28	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
29	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
30	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
31	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
32	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
33	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
34	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
35	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
36	I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2	I/O module	34	71207473
37	I/O module, 2-wr.,4-20mA,HART,PFS,Ex,V1	I/O module	34	71108599
38	Terminal set 4-wire, I/O module	Terminals	37	71110279
39	Terminal set 2-wire, I/O module	Terminals	37	71110280
40	Display module, SD02, push buttons	Display	40	XPD0024-
41	Display module, SD03, Touch Control	Display	40	XPD0025-
42	Transmitter electronics FHX50	further parts		71197334
43	M12-female plug connector, VA	further parts		71296840
44	Cable FHX50, FHX50B, 5m	further parts		71206552
45	Cable FHX50, FHX50B, 10m	further parts		71206554
46	Cable FHX50, FHX50B, 20m	further parts		71206555
47	Cable FHX50, FHX50B, 30m	further parts		71206556
48	Rod Probe FMP53 w/o process connection	Sensoric	55	XPF0009-
49	Dairy fitting DIN11851 DN40 PN40	Flange	52	71043426
50	Dairy fitting DIN11851 DN40 PN40, 3.1	Flange	52	71043444
51	Dairy fitting DIN11851 DN50 PN40	Flange	52	71043427
52	Dairy fitting DIN11851 DN50 PN40, 3.1	Flange	52	71043445
53	Adapter NEUMO BioControl DN25 PN16	Flange	52	71043428
54	Adapter NEUMO BioControl DN25 PN16, 3.1	Flange	52	71043446
55	Tri-Clamp ISO2852 DN25-38 1..1-1/2″	Flange	52	71043429
56	Tri-Clamp ISO2852 DN25-38 1..1-1/2″, 3.1	Flange	52	71043447
57	Tri-Clamp ISO2852 DN40-51 2″	Flange	52	71043430
58	Tri-Clamp ISO2852 DN40-51 2″, 3.1	Flange	52	71043448
59	Tri-Clamp ISO2852 DN70-76.1 3″	Flange	52	71043438
60	Tri-Clamp ISO2852 DN70-76.1 3″, 3.1	Flange	52	71043449
61	Adapter SMS 2″ PN25, 316L	Flange	52	71043439
62	Adapter SMS 2″ PN25, 316L, 3.1	Flange	52	71043450
63	Adapter SMS 1-1/2″ PN25, 316L	Flange	52	71043440
64	Adapter SMS 1-1/2″ PN25, 316L, 3.1	Flange	52	71043451
65	Aseptic coupling DIN11864-1 A DN25 tube	Flange	52	71043425
66	Aseptic coupl.DIN11864-1 A DN25 tube,3.1	Flange	52	71043443
67	Aseptic coupling DIN11864-1A DN50 pipe	Flange	52	71114466
68	Adapter NEUMO BioControl DN50 PN16, 3.1	Flange	52	71114467
69	Adapter NEUMO BioControl DN80 PN16, 3.1	Flange	52	71114468
70	Variv N DN40-162 PN16 316L 3.1	Flange	52	71114469
71	Sealing kit FMP43,FMP53 Kalrez, 2 pieces	Sealing	57	71043452
72	Sealing kit FMP43, FMP53 EPDM, 2 pieces	Sealing	57	71043453
73	Sealing FMP53 FKM, 2 pieces, sensor body	Sealing	58	71182816
74	Sealing kit FMP53 FKM, FDA, 2 pieces	Sealing	57	71157692
75	O-ring 9.25x 1.78 EPDM, 5 pcs.	Sealing	57	71184308
76	O-Ring 15,54×2,62 FKM, FDA, 5 pcs.	Sealing	57	71337274
77	O-Ring 15,54×2,62 FFKM,FDA, 1 pc	Sealing	57	71567760
78	Sealing kit FMP53 UVJ, Kalrez, 2 pieces	Sealing	57	71315399
79	Sealing kit FMP53 UVJ, EPDM, 2 pieces	Sealing	57	71315421
80	HF-Coaxcable FMP53 L=3m/9ft, plug	further parts		71116351
81	HF-Coaxcable FMP53 L=6m/19ft, plug	Cable/cable accessories	70	71116352
82	Spare parts set – retrofit kit FHX50	further parts		71248380
83	Spare RFID TAG	further parts		XPRFID-
84	Overvoltage protection (OVP10),1-Channel			71128617
85	Overvoltage protection (OVP20),2-Channel			71128619
86	Bluetooth module (BT10)			71377355
87	Mountingset for remote sensor			71102216
88	Weather prot. cover GT18/GT19/GT20, 316L			71162242
89	Protective cover FMP43/53			71041379
90	Weld-in adapter M24 D65, 316L			71041381
91	Weld-in adapter M24 D65, 316L, 3.1			71041383
92	Calibration kit FMP53			71041382
93	Screw in flange FAX50			FAX5
