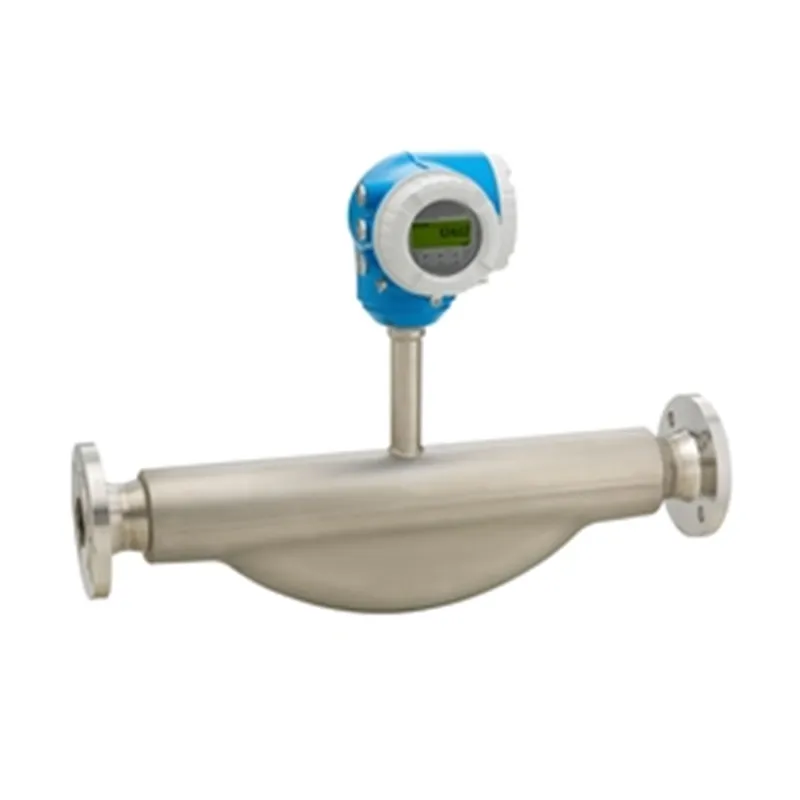

Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter
Promass F has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and harsh environments, it is suited for the broadest range of applications. With its compact transmitter Promass F 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
| Description | Category | Drawing No | Order Code | |
| 1 | ISEM electronic module, Promass 300/500 | Electronic | 33 | XPD0028- |
| 2 | I/O module, slot 1, 300/500 | I/O module | 34 | XPD0037- |
| 3 | I/O module, slot 2/3/4, 300/500 | I/O module | 35 | XPD0038- |
| 4 | Display module, 300/500/DKX001 | Display | 50 | XPD0031- |
| 5 | Kit power supply, AC 100…240V, Ex | Power supply | 31 | 71323007 |
| 6 | Kit power supply, DC 24V, Ex | Power supply | 31 | 71323008 |
| 7 | Kit power sup.,AC100…240V/DC 24V,N-haz | Power supply | 31 | 71323009 |
| 8 | Kit T-DAT, 100/300/400/500 | Memory | 39 | 71185788 |
| 9 | Kit module cartridge, 300/500, Ex | Electronic (periphery) | 37 | 71323010 |
| 10 | Kit module cartridge, 300/500, Non-haz | Electronic (periphery) | 37 | 71323011 |
| 11 | Kit ISEM ribbon cable, 300/500 | Connection (electrical) | 46 | 71323005 |
| 12 | Kit conn.terminal option A,300/500,N-haz | Terminal module | 45 | 71323073 |
| 13 | Kit conn.terminal option B, 300, Non-haz | Terminal module | 45 | 71323074 |
| 14 | Kit conn.terminal option C,300/500,N-haz | Terminal module | 45 | 71327818 |
| 15 | Kit conn.terminal option A, 300/500, Ex | Terminal module | 45 | 71323075 |
| 16 | Kit conn.terminal option B, 300/500, Ex | Terminal module | 45 | 71323076 |
| 17 | Kit conn.terminal option C, 300/500, Ex | Terminal module | 45 | 71327819 |
| 18 | Kit terminal, transm.,remote display,300 | Terminals | 49 | 71323079 |
| 19 | Kit cover, sight glass, Alu,Non-haz/Exde | Cover | 20 | 71323016 |
| 20 | Kit cover,glass, Alu, -50oC,Non-haz/Exde | Cover | 20 | 71323017 |
| 21 | Kit cover, blind, Alu, Non-haz/Exde | Cover | 21 | 71323018 |
| 22 | Kit cover, blind, Alu,-50oC,Non-haz/Exde | Cover | 21 | 71323019 |
| 23 | Kit cover, sight glass, Alu, Exd | Cover | 20 | 71323020 |
| 24 | Kit cover, sight glass, Alu, -50oC, Exd | Cover | 20 | 71323021 |
| 25 | Kit cover, blind, Alu, Exd | Cover | 21 | 71323022 |
| 26 | Kit cover, blind, Alu, -50oC, Exd | Cover | 21 | 71323023 |
| 27 | Kit cover, sight glass, cast, Ex | Cover | 20 | 71323024 |
| 28 | Kit cover, sight glass, cast, -50oC, Ex | Cover | 20 | 71323025 |
| 29 | Kit cover, blind, cast, Ex | Cover | 21 | 71327102 |
| 30 | Kit cover, blind, cast, -50oC, Ex | Cover | 21 | 71327103 |
| 31 | Kit cover gasket, sight glass/blind | Sealing | 70 | 71323026 |
| 32 | Kit cover gasket,sight glass/blind,-50oC | Sealing | 70 | 71323027 |
| 33 | Kit cover,sight glass,polycarbonate,hyg. | Cover | 20 | 71587949 |
| 34 | Kit cover,blind/electronic compart.,hyg. | Cover | 21 | 71587950 |
| 35 | Kit cover gasket, hygienic | Sealing | 70 | 71587951 |
| 36 | Kit cover, electr.compart., Alu, Non-haz | Cover | 22 | 71323028 |
| 37 | Kit cover,electronic, Alu,- 50oC,Non-haz | Cover | 22 | 71323029 |
| 38 | Kit cover gasket,electr.compart.,Non-haz | Sealing | 74 | 71323030 |
| 39 | Kit cover gasket,electr., -50oC, Non-haz | Sealing | 74 | 71323031 |
| 40 | Kit cover, electronic compart., Alu, Ex | Cover | 22 | 71323032 |
| 41 | Kit cover, electr.compart., Alu,-50oC,Ex | Cover | 22 | 71323033 |
| 42 | Kit cover, electronic compart., cast, Ex | Cover | 22 | 71323034 |
| 43 | Kit cover, electr.compart.,cast,-50oC,Ex | Cover | 22 | 71323035 |
| 44 | Kit cover gasket, electronic compart.,Ex | Sealing | 74 | 71323036 |
| 45 | Kit cover gasket,elect.compart.,-50oC,Ex | Sealing | 74 | 71323037 |
| 46 | Kit cover, remote display, Alu | Cover | 28 | 71323044 |
| 47 | Kit cover, remote display, Alu, -50oC | Cover | 28 | 71323045 |
| 48 | Kit cover, remote display, cast | Cover | 28 | 71323046 |
| 49 | Kit cover, remote display, cast, -50oC | Cover | 28 | 71323047 |
| 50 | Kit cover gasket, remote display | Sealing | 76 | 71323048 |
| 51 | Kit cover gasket, remote display, -50oC | Sealing | 76 | 71323049 |
| 52 | Kit interface gaskets, 300/500 | Sealing | 71 | 71323071 |
| 53 | Kit interface gaskets, 300/500, -50oC | Sealing | 71 | 71323072 |
| 54 | Kit interface gaskets, Promass 300, hyg. | Sealing | 71 | 71368491 |
| 55 | Kit interf.gaskets,Promass300,hyg.,-50oC | Sealing | 71 | 71368492 |
| 56 | Kit protect.cover option A,300/500,N-haz | Miscellaneous | 11 | 71368488 |
| 57 | Kit protective cover optionB,300,Non-haz | Miscellaneous | 11 | 71368489 |
| 58 | Kit protective cover option A,300/500,Ex | Miscellaneous | 11 | 71323081 |
| 59 | Kit protective cover option B,300/500,Ex | Miscellaneous | 11 | 71323082 |
| 60 | Kit plug M12, RJ45, L= 80mm | further parts | 71450719 | |
| 61 | Kit plug M12, RJ45, L= 175mm | further parts | 71450720 | |
| 62 | Spare RFID TAG | further parts | XPRFID- | |
| 63 | Spare IEC TAG | further parts | XPSPEC- | |
| 64 | Kit weather protection cover, 300/500 | 87 | 71343505 | |
| 65 | Kit wireless antenna extended range | 71351317 | ||
| 66 | Transmitter Promass 300, 8X3BXX | 8X3BXX- | ||
| 67 | Remote Display DKX001 | DKX001- | ||
| 68 | Connection Cable for Remote Display | DKX002- | ||
| 69 | Promass sensor, heating jacket, DK8003 | DK8003- |
