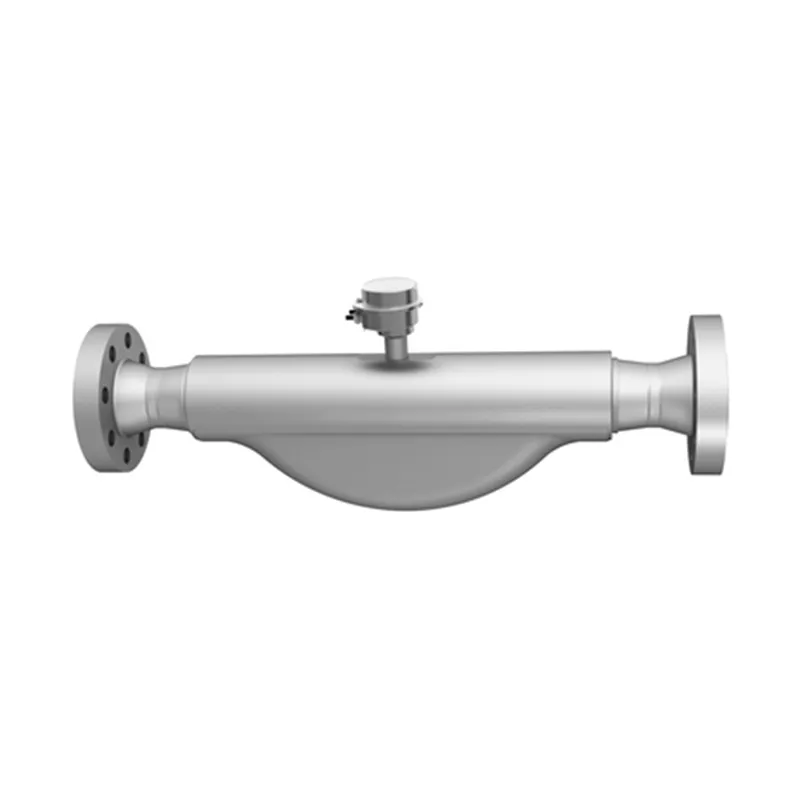

Proline Promass O 100 Coriolis flowmeter | Endress Hauser E+H

The robust high-pressure flowmeter with an ultra-compact transmitter

Automation Components

Specs at a glance

Max. measurement error Mass flow (liquid): ±0.1 (standard), 0.05 % (option) Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 800 000 kg/h (0 to 29 400 lb/min)
Medium temperature range –40 to +205 °C (–40 to +401 °F)
Max. process pressure PN 250, Class 1500
Wetted materials Measuring tube: 25Cr duplex (Super Duplex), 1.4410 (UNS S32750) Connection: 25Cr duplex (Super Duplex), 1.4410 (F53) Measuring tube: 1.4539 (904L) Connection

Field of application

Promass O is designed for premium accuracy of liquids and gases at the highest process pressures in the oil and gas industry. The sensor is fully suitable for offshore conditions and resistant to stress corrosion cracking. Promass O 100 delivers full performance on the smallest footprint with its ultra-compact transmitter and thus enables seamless system integration. Heartbeat Technology enables process safety at all times.

Benefits

Maximum safety – highest resistance to stress corrosion cracking
Fewer process measuring points – multivariable measurement (flow, density, temperature)

Space-saving installation – no in/outlet run needs
Space-saving transmitter – full functionality on the smallest footprint
Time-saving local operation without additional software and hardware – integrated web server

Integrated verification – Heartbeat Technology

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Electronic Promass/Cubemass 100	Electronic	30	XPD0005-
2	Display module, 4-wire, 100	Display	50	XPD0023-
3	Kit Ex-i barrier	Electronic (periphery)	47	71185785
4	Kit connection terminal for Ex-i barrier	Terminals	45	71185787
5	Kit T-DAT, 100/300/400/500	Memory	39	71185788
6	Kit cover, compact, Alu	Cover	21	71185789
7	Kit cover, compact, stainless 1.4404	Cover	21	71185792
8	Kit cover,ultra compact,stainless 1.4404	Cover	21	71185794
9	Kit cover, sight glass, compact, Alu	Cover	20	71266334
10	Kit cover, sight glass, compact, 1.4404	Cover	20	71266336
11	Kit cover,sight glass,ultra comp.,1.4404	Cover	20	71266338
12	Kit housing gaskets, compact, Alu	Sealing	70	71185795
13	Kit housing gaskets, compact, stainless	Sealing	70	71185797
14	Kit hous.gaskets,ultra compact,stainless	Sealing	70	71185799
15	Kit 10 cable glands M20x1.5 Ex	Adapter housing/cable entry	15	50098036
16	Kit 2 cable glands M20x1.5 INOX Ex	Adapter housing/cable entry	15	71069285
17	Kit 10 ext. M20x1.5/G 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098041
18	Kit 2 cable glands G1/2″ INOX Ex	Adapter housing/cable entry	15	71185802
19	Kit 10 ext. M20x1.5/NPT 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098042
20	Kit 2 cable glands NPT1/2″ INOX Ex	Adapter housing/cable entry	15	71185800
21	Kit securing clamp, screw	Housing/housing accessories	12	71276494
22	Spare RFID TAG	further parts		XPRFID-
23	Spare IEC TAG	further parts		XPSPEC-
