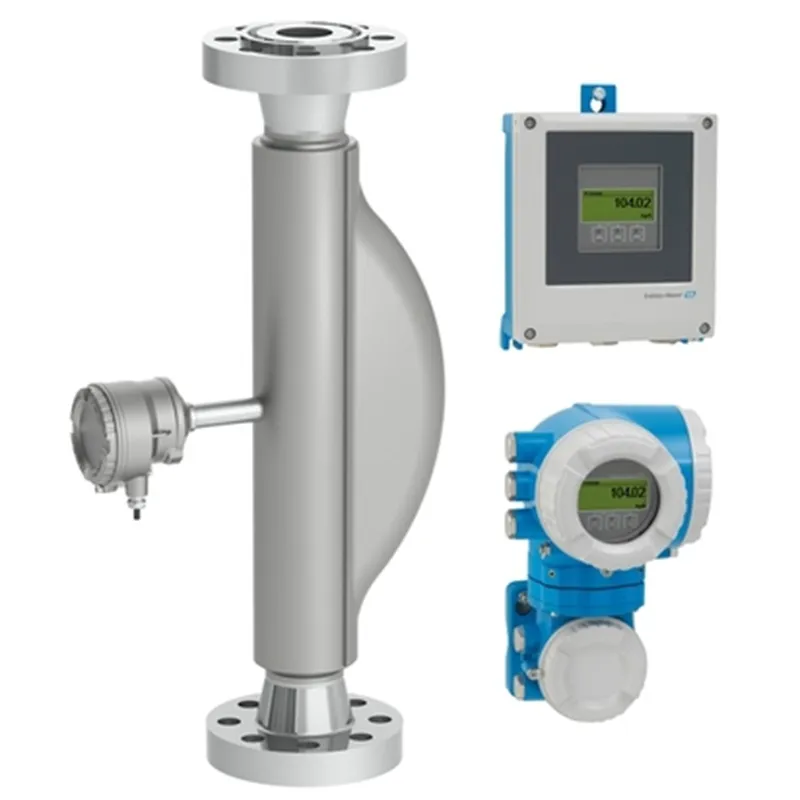

Proline Promass O 500 Coriolis flowmeter | Endress Hauser E+H

Robust high-pressure flowmeter, as remote version with up to 4 I/Os

Automation Components

Specs at a glance

Max. measurement error Mass flow (liquid): ±0.10 % (standard), 0.05 % (option) Volume flow (liquid): ±0.10 % Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 2 200 000 kg/h (0 to 80 850 lb/min)
Medium temperature range –40 to +205 °C (–40 to +401 °F)
Max. process pressure PN 250, Class 1500
Wetted materials Measuring tube: 25Cr duplex (Super Duplex), 1.4410 (UNS S32750) Connection: 25Cr duplex (Super Duplex), 1.4410 (F53)

Field of application

Promass O is designed for premium accuracy of liquids and gases at the highest process pressures in the oil and gas industry. The sensor is fully suitable for offshore conditions and resistant to stress corrosion cracking. With its innovative remote transmitter Promass O 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables safe processes.

Benefits

Maximum safety – highest resistance to stress corrosion cracking
Fewer process measuring points – multivariable measurement (flow, density, temperature)

Space-saving installation – no in-/outlet run needs
Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet

Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	ISEM electronic module, Promass 300/500	Electronic	33	XPD0028-
2	I/O module, slot 1, 300/500	I/O module	34	XPD0037-
3	I/O module, slot 2/3/4, 300/500	I/O module	35	XPD0038-
4	I/O module, slot 2/3/4, 300/500	I/O module	35	XPD0038-
5	Display module, 300/500/DKX001	Display	50	XPD0031-
6	Kit power supply, AC 100…240V, Ex	Power supply	31	71323007
7	Kit power supply, DC 24V, Ex	Power supply	31	71323008
8	Kit power sup.,AC100…240V/DC 24V,N-haz	Power supply	31	71323009
9	Kit main elec. extender, 500 dig., Ex	Electronic (periphery)	47	71323012
10	Kit main elec.extender,500 dig., Non-haz	Electronic (periphery)	47	71323013
11	Kit ISEM extender, 500 digital, Ex	Electronic (sensor)	36	71323015
12	Kit T-DAT, 100/300/400/500	Memory	39	71185788
13	Kit module cartridge, 300/500, Ex	Electronic (periphery)	37	71323010
14	Kit ISEM ribbon cable, 300/500	Connection (electrical)	46	71323005
15	Kit ISEM ribbon cable, 500 digital	Connection (electrical)	46	71323006
16	Kit conn.terminal option A, 300/500, Ex	Terminal module	45	71323075
17	Kit conn.terminal option B, 300/500, Ex	Terminal module	45	71323076
18	Kit conn.terminal option C, 300/500, Ex	Terminal module	45	71327819
19	Kit terminal option A, 500 dig., Non-haz	Terminal module	45	71323077
20	Kit terminal option B, 500 dig., Non-haz	Terminal module	45	71323078
21	Kit terminal option C, 500 dig., Non-haz	Terminal module	45	71327820
22	Kit connection board, Promass 500, Ex	Electronic (sensor)	44	71323268
23	Kit connec.board, Promass 500, Ex, -50oC	Electronic (sensor)	44	71323269
24	Kit cover, sight glass, Alu,Non-haz/Exde	Cover	20	71323016
25	Kit cover,glass, Alu, -50oC,Non-haz/Exde	Cover	20	71323017
26	Kit cover, sight glass, Alu, Exd	Cover	20	71323020
27	Kit cover, sight glass, Alu, -50oC, Exd	Cover	20	71323021
28	Kit cover, sight glass, cast, Ex	Cover	20	71323024
29	Kit cover, sight glass, cast, -50oC, Ex	Cover	20	71323025
30	Kit cover gasket, sight glass/blind	Sealing	70	71323026
31	Kit cover gasket,sight glass/blind,-50oC	Sealing	70	71323027
32	Kit cover, electronic compart., Alu, Ex	Cover	22	71323032
33	Kit cover, electr.compart., Alu,-50oC,Ex	Cover	22	71323033
34	Kit cover, electronic compart., cast, Ex	Cover	22	71323034
35	Kit cover, electr.compart.,cast,-50oC,Ex	Cover	22	71323035
36	Kit cover gasket, electronic compart.,Ex	Sealing	74	71323036
37	Kit cover gasket,elect.compart.,-50oC,Ex	Sealing	74	71323037
38	Kit cover, wall mount, Alu, Ex	Cover	23	71323038
39	Kit cover, wall mount, Alu, -50oC, Ex	Cover	23	71323039
40	Kit cover, wall mount, cast, Ex	Cover	23	71323040
41	Kit cover, wall mount, cast, -50oC, Ex	Cover	23	71323041
42	Kit cover gasket, wall mount, Ex	Sealing	75	71323042
43	Kit cover gasket, wall mount, -50oC, Ex	Sealing	75	71323043
44	Kit cover, alu, 400, 500 digital	Cover	20	71384170
45	Kit cover, polycarbonate	Cover	20	71408508
46	Kit 10 cover seals, alu, 400,500 digital	Sealing	70	71278078
47	Kit 10 cover seals, polycarbonate	Sealing	70	71278077
48	Kit cover, remote, Alu	Cover	24	71228796
49	Kit cover, remote, Alu, -50oC	Cover	24	71323050
50	Kit housing gaskets, remote, Alu	Sealing	73	71323051
51	Kit housing gaskets, remote, Alu, -50oC	Sealing	73	71323052
52	Kit cover, remote, stainless 1.4301	Cover	24	71323053
53	Kit cover, remote,stainless 1.4301,-50oC	Cover	24	71323054
54	Kit housing gaskets, remote, stainless	Sealing	73	71323057
55	Kit hous.gaskets, remote,stainless,-50oC	Sealing	73	71323058
56	Kit cover,ultra compact,stainless 1.4301	Cover	24	71185793
57	Kit cover, ultra compact, 1.4301, -50oC	Cover	24	71323060
58	Kit hous.gaskets,ultra compact,stainless	Sealing	73	71185799
59	Kit housing gasket, ultra compact, -50oC	Sealing	73	71323062
60	Kit cover, remote, cast, Ex	Cover	24	71323063
61	Kit cover, remote, cast, -50oC, Ex	Cover	24	71323064
62	Kit housing gaskets, remote, cast, Ex	Sealing	73	71323065
63	Kit housing gaskets,remote,cast,-50oC,Ex	Sealing	73	71323066
64	Kit interface gaskets, 300/500	Sealing	71	71323071
65	Kit interface gaskets, 300/500, -50oC	Sealing	71	71323072
66	Kit protective cover option A,300/500,Ex	Miscellaneous	11	71323081
67	Kit protective cover option B,300/500,Ex	Miscellaneous	11	71323082
68	Kit securing clamp, screw	Housing/housing accessories	13	71276494
69	Kit plug M12, RJ45, L= 80mm	further parts		71450719
70	Spare RFID TAG	further parts		XPRFID-
71	Spare IEC TAG	further parts		XPSPEC-
72	Kit display protection, 400, 500 digital		82	71228792
73	Kit weather prot.cover, 400/800/500 dig.		87	71343504
74	Kit weather protection cover, 300/500		87	71343505
75	Pipe mounting kit, 400/800/500 digital			71346427
76	Pipe Mounting kit,Transmitter 10/500			71346428
77	Kit wireless antenna extended range			71351317
78	Transmitter Promass 500, 8X5BXX			8X5BXX-
79	Promass 500, sensor cable set			DK8012-
80	Sensor cable set, Promass 500			DK8013-
