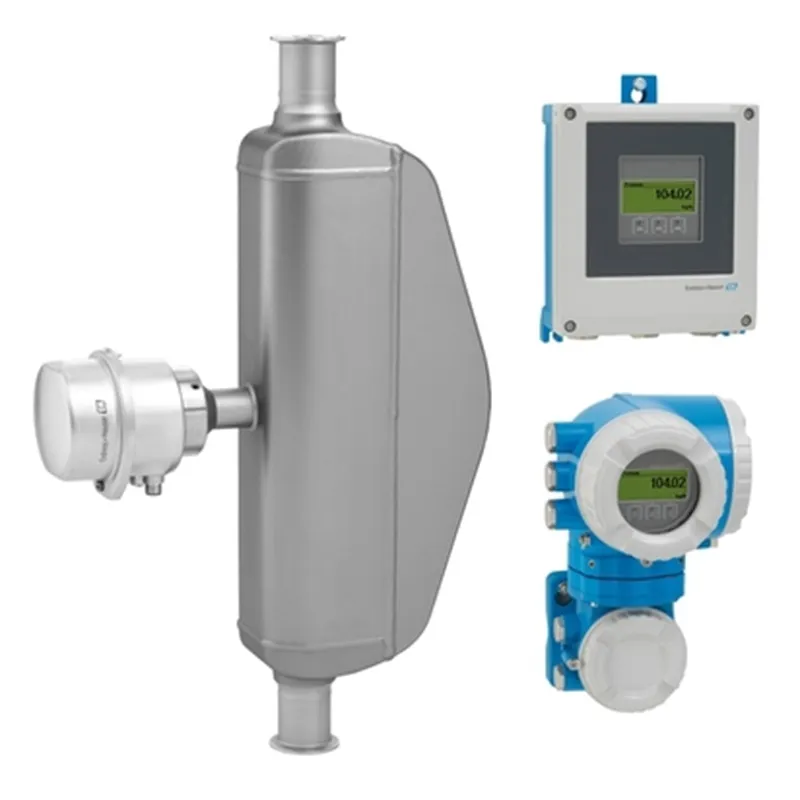

Easy-to-clean device with self-drainable single-tube system, as remote version with up to 4 I/Os
Promass S is at the forefront in hygienic design and dedicated to applications in the food and beverage industry requiring optimal cleanability. The self‐drainable single-tube system ensures careful treatment of fluids. With its innovative remote transmitter Promass S 500 maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables process safety at all times.
| Description | Category | Drawing No. | Order Code | |
| 1 | ISEM electronic module, Promass 300/500 | Electronic | 33 | XPD0028- |
| 2 | I/O module, slot 1, 300/500 | I/O module | 34 | XPD0037- |
| 3 | I/O module, slot 2/3/4, 300/500 | I/O module | 35 | XPD0038- |
| 4 | I/O module, slot 2/3/4, 300/500 | I/O module | 35 | XPD0038- |
| 5 | Display module, 300/500/DKX001 | Display | 50 | XPD0031- |
| 6 | Kit power supply, AC 100…240V, Ex | Power supply | 31 | 71323007 |
| 7 | Kit power supply, DC 24V, Ex | Power supply | 31 | 71323008 |
| 8 | Kit power sup.,AC100…240V/DC 24V,N-haz | Power supply | 31 | 71323009 |
| 9 | Kit main elec. extender, 500 dig., Ex | Electronic (periphery) | 47 | 71323012 |
| 10 | Kit main elec.extender,500 dig., Non-haz | Electronic (periphery) | 47 | 71323013 |
| 11 | Kit ISEM extender, 500 digital, Ex | Electronic (sensor) | 36 | 71323015 |
| 12 | Kit T-DAT, 100/300/400/500 | Memory | 39 | 71185788 |
| 13 | Kit module cartridge, 300/500, Ex | Electronic (periphery) | 37 | 71323010 |
| 14 | Kit ISEM ribbon cable, 300/500 | Connection (electrical) | 46 | 71323005 |
| 15 | Kit ISEM ribbon cable, 500 digital | Connection (electrical) | 46 | 71323006 |
| 16 | Kit conn.terminal option A, 300/500, Ex | Terminal module | 45 | 71323075 |
| 17 | Kit conn.terminal option B, 300/500, Ex | Terminal module | 45 | 71323076 |
| 18 | Kit conn.terminal option C, 300/500, Ex | Terminal module | 45 | 71327819 |
| 19 | Kit terminal option A, 500 dig., Non-haz | Terminal module | 45 | 71323077 |
| 20 | Kit terminal option B, 500 dig., Non-haz | Terminal module | 45 | 71323078 |
| 21 | Kit terminal option C, 500 dig., Non-haz | Terminal module | 45 | 71327820 |
| 22 | Kit connection board, Promass 500, Ex | Electronic (sensor) | 44 | 71323268 |
| 23 | Kit connec.board, Promass 500, Ex, -50oC | Electronic (sensor) | 44 | 71323269 |
| 24 | Kit cover, sight glass, Alu,Non-haz/Exde | Cover | 20 | 71323016 |
| 25 | Kit cover,glass, Alu, -50oC,Non-haz/Exde | Cover | 20 | 71323017 |
| 26 | Kit cover, sight glass, Alu, Exd | Cover | 20 | 71323020 |
| 27 | Kit cover, sight glass, Alu, -50oC, Exd | Cover | 20 | 71323021 |
| 28 | Kit cover gasket, sight glass/blind | Sealing | 70 | 71323026 |
| 29 | Kit cover gasket,sight glass/blind,-50oC | Sealing | 70 | 71323027 |
| 30 | Kit cover, electronic compart., Alu, Ex | Cover | 22 | 71323032 |
| 31 | Kit cover, electr.compart., Alu,-50oC,Ex | Cover | 22 | 71323033 |
| 32 | Kit cover gasket, electronic compart.,Ex | Sealing | 74 | 71323036 |
| 33 | Kit cover gasket,elect.compart.,-50oC,Ex | Sealing | 74 | 71323037 |
| 34 | Kit cover, wall mount, Alu, Ex | Cover | 23 | 71323038 |
| 35 | Kit cover, wall mount, Alu, -50oC, Ex | Cover | 23 | 71323039 |
| 36 | Kit cover gasket, wall mount, Ex | Sealing | 75 | 71323042 |
| 37 | Kit cover gasket, wall mount, -50oC, Ex | Sealing | 75 | 71323043 |
| 38 | Kit cover, alu, 400, 500 digital | Cover | 20 | 71384170 |
| 39 | Kit cover, polycarbonate | Cover | 20 | 71408508 |
| 40 | Kit 10 cover seals, alu, 400,500 digital | Sealing | 70 | 71278078 |
| 41 | Kit 10 cover seals, polycarbonate | Sealing | 70 | 71278077 |
| 42 | Kit cover, remote, Alu | Cover | 24 | 71228796 |
| 43 | Kit cover, remote, Alu, -50oC | Cover | 24 | 71323050 |
| 44 | Kit housing gaskets, remote, Alu | Sealing | 73 | 71323051 |
| 45 | Kit housing gaskets, remote, Alu, -50oC | Sealing | 73 | 71323052 |
| 46 | Kit cover, remote, stainless 1.4301 | Cover | 24 | 71323053 |
| 47 | Kit cover, remote,stainless 1.4301,-50oC | Cover | 24 | 71323054 |
| 48 | Kit housing gaskets, remote, stainless | Sealing | 73 | 71323057 |
| 49 | Kit hous.gaskets, remote,stainless,-50oC | Sealing | 73 | 71323058 |
| 50 | Kit cover,ultra compact,stainless 1.4301 | Cover | 24 | 71185793 |
| 51 | Kit cover, ultra compact, 1.4301, -50oC | Cover | 24 | 71323060 |
| 52 | Kit hous.gaskets,ultra compact,stainless | Sealing | 73 | 71185799 |
| 53 | Kit housing gasket, ultra compact, -50oC | Sealing | 73 | 71323062 |
| 54 | Kit interface gaskets, 300/500 | Sealing | 71 | 71323071 |
| 55 | Kit interface gaskets, 300/500, -50oC | Sealing | 71 | 71323072 |
| 56 | Kit protective cover option A,300/500,Ex | Miscellaneous | 11 | 71323081 |
| 57 | Kit protective cover option B,300/500,Ex | Miscellaneous | 11 | 71323082 |
| 58 | Kit securing clamp, screw | Housing/housing accessories | 13 | 71276494 |
| 59 | Kit plug M12, RJ45, L= 80mm | further parts | 71450719 | |
| 60 | Spare RFID TAG | further parts | XPRFID- | |
| 61 | Spare IEC TAG | further parts | XPSPEC- | |
| 62 | Kit display protection, 400, 500 digital | 82 | 71228792 | |
| 63 | Kit weather prot.cover, 400/800/500 dig. | 87 | 71343504 | |
| 64 | Kit weather protection cover, 300/500 | 87 | 71343505 | |
| 65 | Pipe mounting kit, 400/800/500 digital | 71346427 | ||
| 66 | Pipe Mounting kit,Transmitter 10/500 | 71346428 | ||
| 67 | Kit wireless antenna extended range | 71351317 | ||
| 68 | Transmitter Promass 500, 8X5BXX | 8X5BXX- | ||
| 69 | Promass 500, sensor cable set | DK8012- | ||
| 70 | Sensor cable set, Promass 500 | DK8013- | ||
| 71 | Promass sensor, heating jacket, DK8003 | DK8003- |
