Proline Prosonic Flow 93T ultrasonic flowmeter | Endress Hauser E+H

Proline Prosonic Flow 93T ultrasonic flowmeter | Endress Hauser E+H

The economical flowmeter for easy data transfer via USB stick without additional software

Request a Quote

Specs at a glance

  • Max. measurement error +/-2.0 %
  • Measuring range 0….452’389 m3/h
  • Medium temperature range DN 15…65 -40…+150°C (-40…+302°F) DN 50…300 -40…+170°C (-40…+338°F) DN 100…4000 -40…+80°C (-40…+176°F)
  • Max. process pressure No limit

Field of application

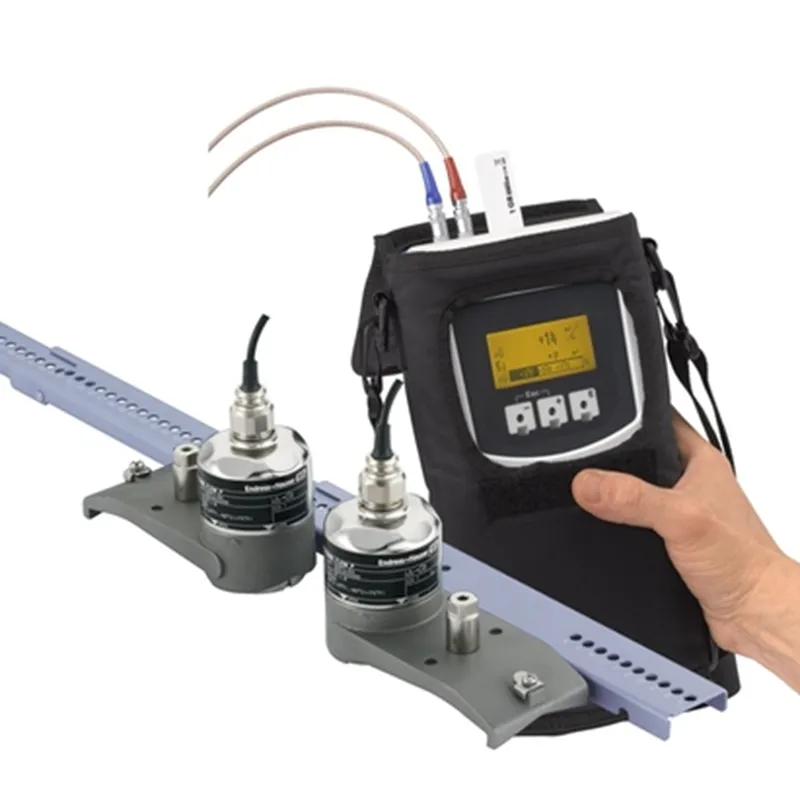

The portable ultrasonic flowmeter Prosonic Flow 93T is designed for temporary monitoring and test measurements with clamp on sensors. It is operated independently of the mains power using a battery. The Prosonic Flow 93T is ideal for conducting verification measurements at existing flow metering points.

Benefits

  • Automatic frequency scan for maximum measuring performance
  • Quick and secure installation – specially designed mounting kits
  • No additional leakage paths – external measurement from outside the pipe
  • Process transparency – diagnostic capability
  • Temporary monitoring of measuring points – portable flowmeter with rechargeable battery and current output
  • Verification of other flow devices – integrated data logger and current input
  • Automatic recovery of data

Spare parts & accessories

DescriptionCategoryDrawing No.Order Code
1Mains supply c.12VDC/2500mA+connec.LEMOElectronic (periphery)171076316
2Kit 1 Terminal 2 pol + 4 Bumpon 93TTerminals271094796
3Sensor pair-40…80oC Prosonic F DDU18further parts50091703
4Sensor pair0…170oC Prosonic F DDU 18further parts50091704
5Sensor 0…60oC Prosonic Flow DDU 20further parts71112217
6Prosonic Flow 93T portablefurther parts93TA1-
7Prosonic Flow 93T, flow sensor setfurther partsDK9PT-
8Prosonic Flow 93T, flow sensor setfurther partsDK9PT-
9Prosonic Flow 93T, flow sensor setfurther partsDK9PT-
10Prosonic Flow 91/93/93T,sensor cable setfurther partsDK9SS-
11Prosonic Flow W/P, sensor holder setfurther partsDK9SH-
12Prosonic Flow W/P, sensor holder setfurther partsDK9SH-
13Serviceinterface FXA193further partsFXA193-
14Prosonic Flow 93T portable, accessorieDK9ZT-
15Prosonic Flow 93T portable, accessorieDK9ZT-
16Prosonic Flow 93T portable, accessorieDK9ZT-
17Prosonic Flow 93T portable, accessorieDK9ZT-
18Prosonic Flow 93T portable, accessorieDK9ZT-
19Prosonic Flow 93T portable, accessorieDK9ZT-
20Prosonic Flow 93T portable, accessorieDK9ZT-
21Prosonic Flow 93T portable, accessorieDK9ZT-
22Prosonic Flow 93T portable, accessorieDK9ZT-
23Prosonic Flow 93T portable, accessorieDK9ZT-
24Prosonic Flow 93T portable, accessorieDK9ZT-
