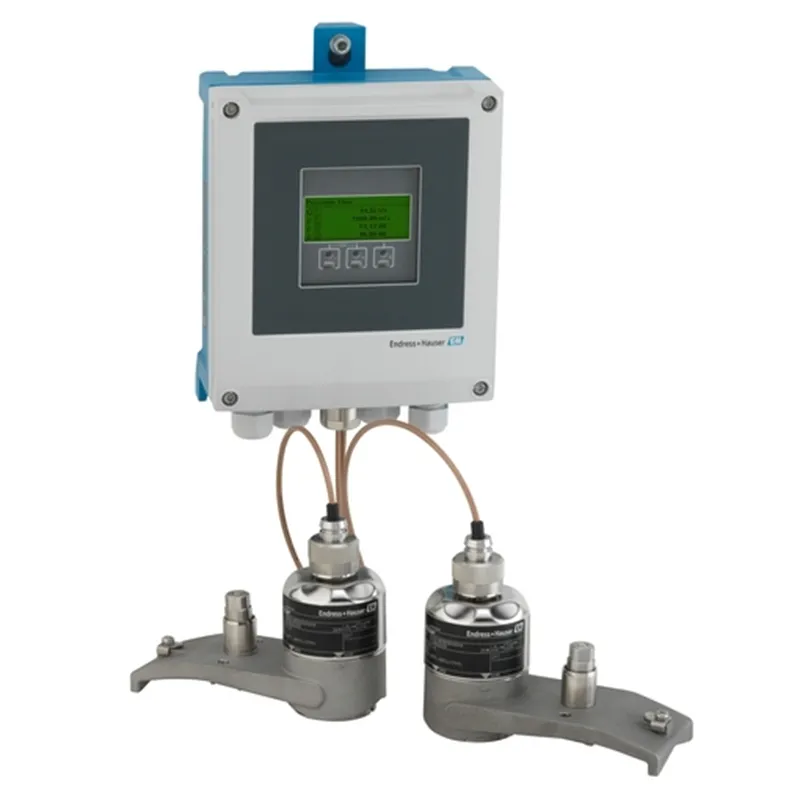

Proline Prosonic Flow W 400 ultrasonic clamp-on flowmeter | Endress Hauser E+H

Reliable, flexible, zero maintenance – noninvasive flow measurement, consistentl accurate, even in limited spaces

Automation Components

Specs at a glance

Max. measurement error Volume flow: ±3% o.r. for DN15 ±2% o.r. for DN25 to 200 ±2% o.r. above DN200

Measuring range 0 to 15 m/s (0 to 50 ft/s)
Medium temperature range –40 to +130 °C (–40 to +266 °F)
Max. process pressure N/A

Field of application

Prosonic Flow W 400 is the ultrasonic clamp-on flowmeter of choice for safe, cost-effective and maintenance-free measurement of conductive and non-conductive liquids. It measures flow noninvasively and bidirectionally, independent of pressure, density and conductivity, and without process interruption. FlowDC makes mounting as flexible as never before. The specified accuracy is maintained at an inlet run of only 2 x DN, even in the case of disturbed flow profiles.

Benefits

Flexible mounting – FlowDC reduces inlet runs to a minimum
Reliable measurement performance – proven sensors in combination with maintenance-free mounting system deliver long-term stable signals

Low capital investment – cost-effectiveness increases with the pipe diameter (up to DN 4000/160″)

User-friendly operation – the web server offers full remote access, while the device’s display offers convenient on-site interaction

Transparent process insights – Heartbeat Technology with its integrated diagnostics, verification and monitoring functions enable compliance and process safety at all times

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Electronics Prosonic Flow 400	Electronic	30	XPD0092-
2	Electronics Prosonic Flow 400	Electronic	30	XPD0092-
3	Display module, 4-wire, 400	Display	50	XPD0017-
4	Kit connection terminals, 400	Terminal module	45	71228789
5	Set Anschlusspr.+S-DAT,Prosonic 400, A1	Memory	40	71540053
6	Kit connec.board+S-DAT,Prosonic 400, A2	Memory	40	71634893
7	Kit T-DAT, 100/300/400/500	Memory	39	71185788
8	Kit cover, polycarbonate	Cover	20	71408508
9	Kit cover, alu, 400, 500 digital	Cover	20	71384170
10	Kit 10 cover seals, polycarbonate	Sealing	25	71278077
11	Kit 10 cover seals, alu, 400,500 digital	Sealing	25	71278078
12	Installation set, Prosonic Flow	further parts		DK9015-
13	Coupling medium, Prosonic Flow	further parts		DK9CM-
14	Spare RFID TAG	further parts		XPRFID-
15	Spare IEC TAG	further parts		XPSPEC-
16	Kit display protection, 400, 500 digital		82	71228792
17	Kit weather prot.cover, 400/800/500 dig.			71343504
18	Pipe mounting kit, 400/800/500 digital			71346427
19	Kit wireless antenna extended range			71351317
20	Transmitter Prosonic Flow 400, 9X4BXX			9X4BXX-
21	Sensor set, Prosonic Flow 400/800			DK9018-
22	Sensor holder set, Prosonic Flow			DK9014-
23	Sensor cable set, Prosonic Flow 400/800			DK9017-
24	Conduit adapter set, Prosonic Flow			DK9003-
