The standard sensor for highest demands in bulk solids level measurement

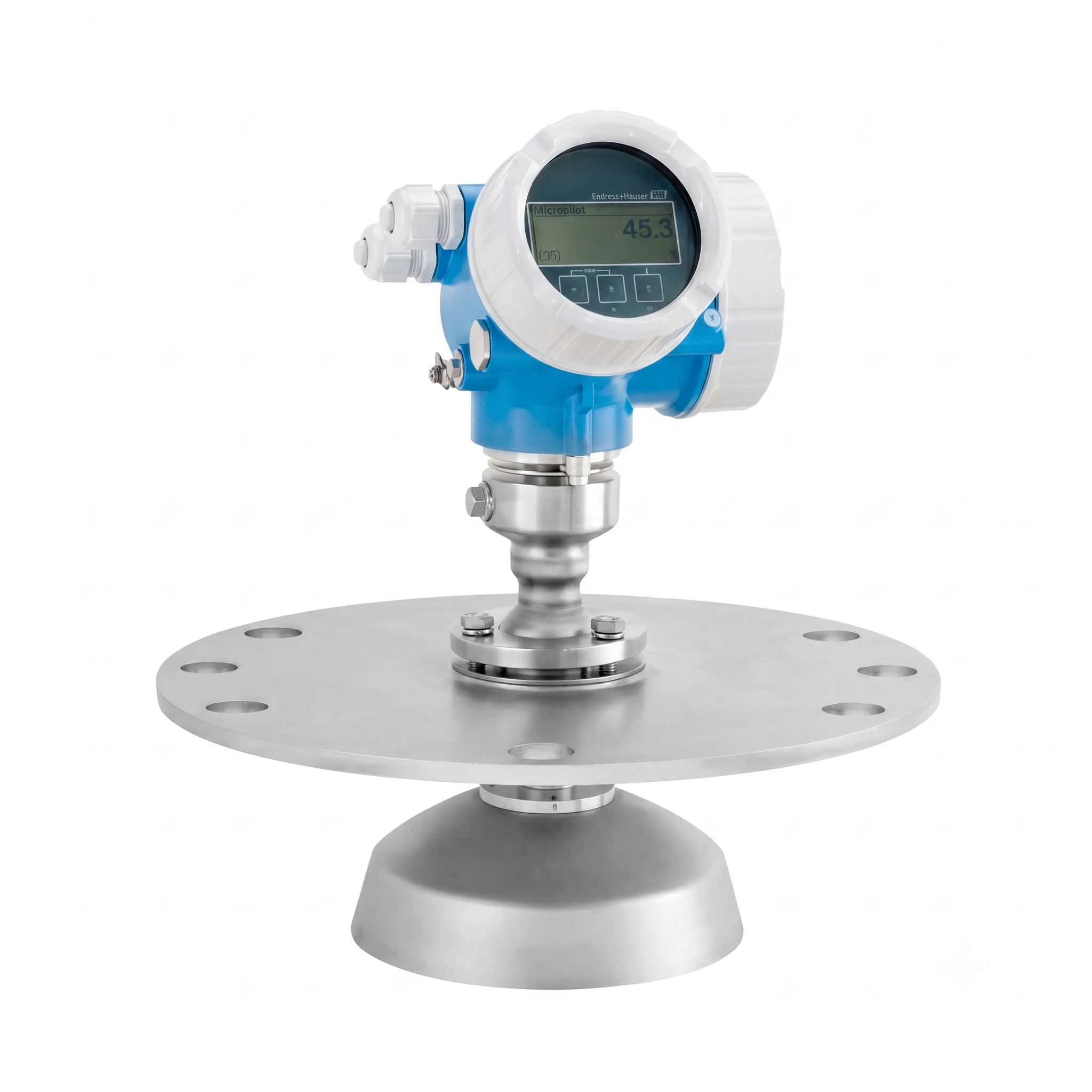

Micropilot FMR57 is the sensor for the highest demands in bulk solids and best suited for measurements in high silos, bunkers or stockpiles. The parabolic antenna facilitates very small emitting angles and thus the measurement in slim silos. Micropilot free space radar is used for continuous, non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.
| 序号 | 名称 / 描述 (Title) | 类别 (Category) | 订货号 (Order Code) |
| 1 | Housing filter 316L, GT18, 1 set | Filter | 71115174 |
| 2 | Housing filter Brass/Ni GT19/20, 1 set | Filter | 71115175 |
| 3 | Set housing securing clamps | Housing/housing accessories | 71115176 |
| 4 | Cover GT18 316L, HNBR | Cover | 71110281 |
| 5 | Cover GT18 316L, sight glass, HNBR | Cover | 71110282 |
| 6 | Cover GT19 PBT, EPDM | Cover | 71110293 |
| 7 | Cover GT19 PBT, sight glass, EPDM | Cover | 71110292 |
| 8 | Cover GT20 Alu, sight glass, HNBR | Cover | 71110297 |
| 9 | Cover GT20 Alu, HNBR | Cover | 71110299 |
| 10 | Cover GT18 316L, terminal Ex d, HNBR | Cover | 71110284 |
| 11 | Cover GT18 316L, terminal Ex, HNBR | Cover | 71110291 |
| 12 | Cover GT18 316L, Terminal, OVP, HNBR | Cover | 71185516 |
| 13 | Cover GT19 PBT, Terminal Ex, EPDM | Cover | 71110295 |
| 14 | Cover GT19 PBT, Terminal, OVP, EPDM | Cover | 71185518 |
| 15 | Cover GT20 Alu, Terminal Ex, HNBR | Cover | 71110301 |
| 16 | Cover GT20 Alu, Terminal Ex d, HNBR | Cover | 71110302 |
| 17 | Cover GT20 Alu, Terminal, OVP, HNBR | Cover | 71185517 |
| 18 | Sealing set GT18/GT19/GT20, EPDM, HNBR | Sealing | 71110303 |
| 19 | Blind plug M20, Alu, Ex d | further parts | 71679714 |
| 20 | Blind plug M20, 316L, Ex d | further parts | 71679712 |
| 21 | Electronics Micropilot FMR5x | Electronic | XPF0020- |
| 22 | Electronics Micropilot FMR5x | Electronic | XPF0020- |
| 23 | Electronics Micropilot FMR5x | Electronic | XPF0020- |
| 24 | Electronics Micropilot FMR5x | Electronic | XPF0020- |
| 25 | Electronics Micropilot FMR5x | Electronic | XPF0020- |
| 26 | Electronics Micropilot FMR5x | Electronic | XPF0020- |
| 27 | Electronics Micropilot FMR5x | Electronic | XPF0020- |
| 28 | I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2 | I/O module | 71187812 |
| 29 | I/O module 2-wire, 4-20mA, HART, Ex, V2 | I/O module | 71108594 |
| 30 | I/O module, 2-wr.,4-20mA,HART,PFS,Ex,V1 | I/O module | 71108599 |
| 31 | I/O mod. Level, 2-wr.2×4-20mA,HART,Ex,V2 | I/O module | 71207474 |
| 32 | I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2 | I/O module | 71207475 |
| 33 | I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2 | I/O module | 71207473 |
| 34 | I/O module, 2-wire, PA/FF, PFS, Ex, V2 | I/O module | 71164940 |
| 35 | Terminal set 4-wire, I/O module | Terminals | 71110279 |
| 36 | Terminal set 2-wire, I/O module | Terminals | 71110280 |
| 37 | Display module, SD02, push buttons | further parts | XPD0024- |
| 38 | Display module, SD03, Touch Control | further parts | XPD0025- |
| 39 | Cable FHX50, FHX50B, 5m | further parts | 71206552 |
| 40 | Cable FHX50, FHX50B, 10m | further parts | 71206554 |
| 41 | Cable FHX50, FHX50B, 20m | further parts | 71206555 |
| 42 | Cable FHX50, FHX50B, 30m | further parts | 71206556 |
| 43 | Transmitter electronics FHX50 | further parts | 71197334 |
| 44 | Spare parts set – retrofit kit FHX50 | further parts | 71248380 |
| 45 | Parabolic reflector 173×60, 316L | Antenna module | 71090287 |
| 46 | Parabolic reflector 236×88, 316L | Antenna module | 71090289 |

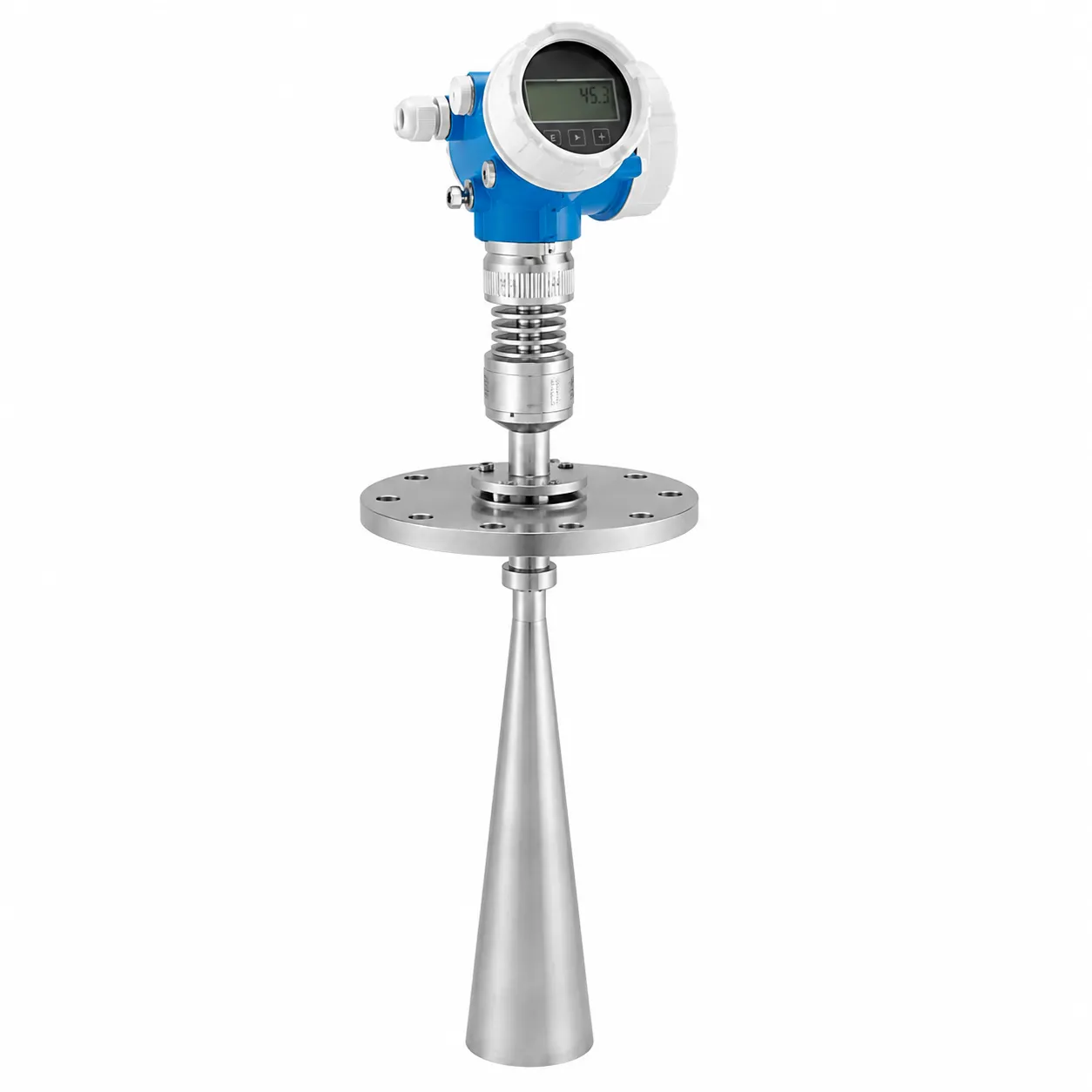

| 47 | Horn 80mm/3″, 316L | Antenna module | 71187603 |
| 48 | Horn 100mm/4″, length 430mm, 316L | Antenna module | 71187653 |
| 49 | Spare RFID TAG | further parts | XPRFID- |
| 50 | Overvoltage protection (OVP10),1-Channel | — | 71128617 |
| 51 | Overvoltage protection (OVP20),2-Channel | — | 71128619 |
| 52 | Weather prot. cover GT18/GT19/GT20, 316L | — | 71162242 |
| 53 | Bluetooth module (BT10) | — | 71377355 |
| 54 | Horn protection, 100mm (4″) horn | — | 71105889 |
| 55 | Horn protection, 80mm (3″) horn | — | 71105890 |
