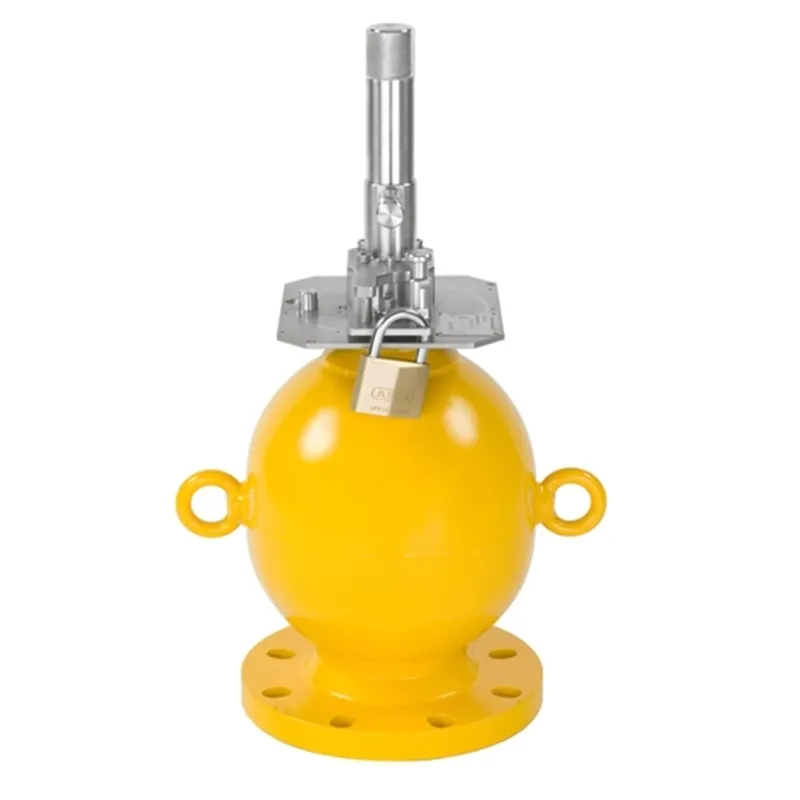

Radiometric Interface measurement Source Container FQG63 | Endress Hauser E+H

Lightweight radiation source container with flexible extension element

Automation Components

Specs at a glance

Process temperature max. 400°C (752°F)
Process pressure / max. overpressure limit Any (diptube)
Main wetted parts Non-contact

Field of application

The FQG63 source container is designed to hold the radioactive source during radiometric level, density and interface measurement. The radiation is damped in all directions as long as the source container is switched off. This guarantees highest safety for the personnel and a reliable measurement. If the source is switched on and lowered down into the process tank, it emits the radiation into all directions.

Benefits

Highest safety classification for the source supplied (DIN 25426/ISO 2919, typical classification C66646)

Reliable measurement due to lightweight container and almost spherical design which provides optimized screening

Flexible installation length up to 30m (98ft)
Manually operated and padlock, cylinder lock or locking bolt for fixing the switching position

Switch status easily identified
Compact device that is easy to mount; adapter and centering flange for existing vessel flanges

Spare parts & accessories

	Description	Category	Drawing No	Order Code
1	Padlock FQG61/62, option D, FQG63	Housing/housing accessories	22	71099273
2	Flexible Rope extension FQG63, FQG74	Miscellaneous	55	XPF0018-
3	Label “caution radiation” _SS			916497-0000
