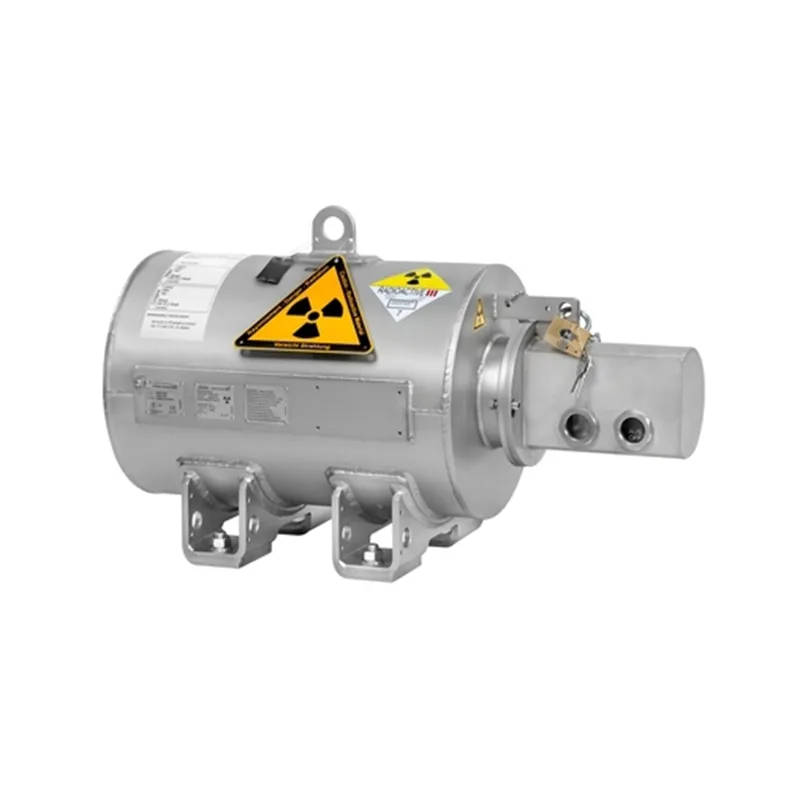

Radiometric Level and density Source Container FQG66 | Endress Hauser E+H

Radiation source container with sliding source support rod for manual or pneumatic on/off switching

Automation Components

Specs at a glance

Process temperature Any
Process pressure / max. overpressure limit Any
Main wetted parts Non-contact

Field of application

The FQG66 source container is designed to hold the radioactive source with highest activities during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.

Benefits

High safety level thanks to highest safety classification for the source supplied (DIN 25426/ISO 2919, typically classification C66646) and simple and easy source replacement

Extremely high shielding ensures that no control areas are generally required and that installation in accessed areas is possible

Additional metallic protective capsule with O-ring seal to protect the source against mechanical and chemical influences

Low space requirement and simple mounting and various angles of emission for optimum adaption to the application

Padlock for fixation the on/off switch position and to protect against theft

Easy identification of switch status through sight glasses on the cover or by remote display with proximity switches

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	O-ring cap FQG66, FVMQ	Sealing	21	71301286
2	Slide bearing set FQG66	Miscellaneous	52	71301296
3	Ball locking bolt FQG66, VA	Housing/housing accessories	53	71341171
4	Sight glass FQG66, seal	Miscellaneous	24	71301299
5	Padlock FQG6x	Housing/housing accessories	22	71301302
6	Ventilation screw FQG66, VA, 1piece	Filter	23	71301303
7	Proximity switch FQG61/FQG62/FQG66	Electro mechanic	33	71099277
8	Terminal box FQG66	Electro mechanic	31	71301298
9	Label “caution radiation” _SS			916497-0000
