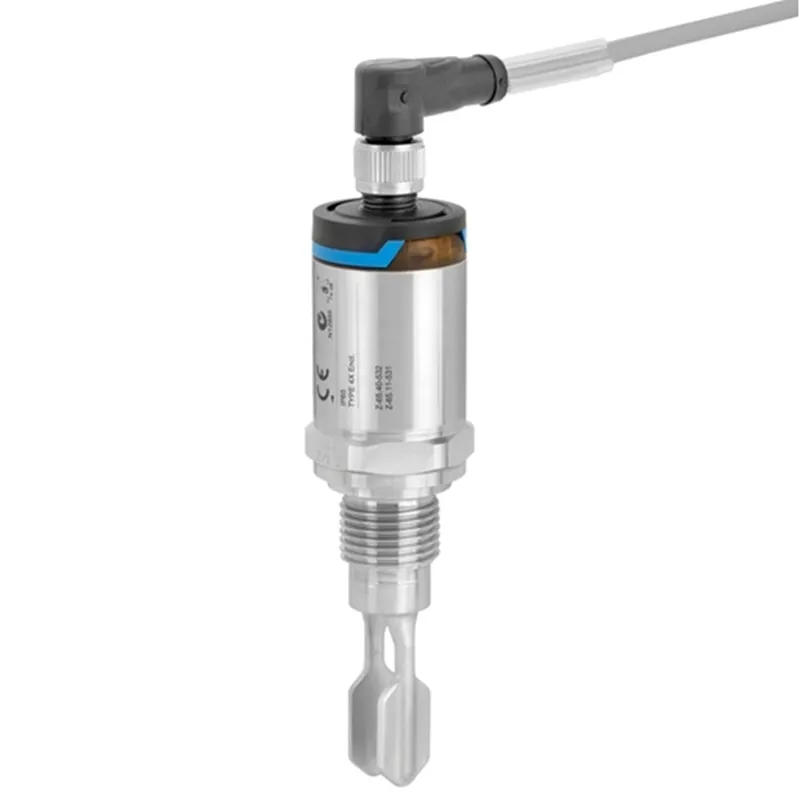

Vibronic Point level detection Liquiphant FTL31 | Endress Hauser E+H

Point level switch for liquids in compact design with stainless steel housing

Automation Components

Specs at a glance

Process temperature -40 °C … 150 °C (-40 °F … 302 °F)
Process pressure / max. overpressure limit Vacuum … 40 bar (Vacuum … 580 psi)

Min. density of medium >0,7g/cm³ (>0,5g/cm³ optional)

Field of application

Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill protection or pump dry-run protection in cleaning systems. The IO-Link capability allows easy parameter setting. Compact: – Smallest vibronic sensor in the market Safe: – Continuous self-monitoring -Reliable switching independent of media properties Easy: – No calibration – Plug & play – IO-Link connectivity

Benefits

Designed according to highest requirements to quality and environmental sustainability. The self-monitoring Liquiphant offers safe switching also in case of power supply loss.

Independent of changing media properties an accurate switching point is offered. IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools

A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles

No calibration is required, no specific know-how or tools (e.g. software) necessary

Robust design made of stainless steel (316L) assures highest durability
A modular design offers different process temperatures and the widest variety of process connections and accessories in the market to fit every application

No mechanically moved parts, free of maintenance

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Valve Plug ISO4400 M16, 4-pole	further parts		71280307
2	Valve plug ISO4400 NPTF1/2, 4-pole	further parts		71280349
3	Valve plug ISO4400 QUICKON, 4-pole	further parts		71280350
4	Pressure ring f.weld-in adapt.G3/4″ 316L	further parts		52027421
5	Sealing ring G1/2, 21×26, FA, 5 pcs.	further parts	57	71194296
6	Sealing ring G3/4, 27×32, FA, 5 pcs.	further parts	57	71185027
7	Sealing ring G1, 33×39 FA, 5 pcs.	further parts	57	52014048
8	Sealing ring 15,08×2,62 EPDM, 5 pcs	further parts		71529759
9	O-ring 14.9×2.7 VMQ, FDA, 5 pcs.	further parts		52021717
10	O-ring 14.9×2.7 VMQ, FDA, USP, 3 pcs.	further parts		71086117
11	O-ring 28.17×3.53 VMQ, FDA, 5 pcs.	further parts		52014472
12	O-ring 28.17×3.53 VMQ, FDA, USP, 3 pcs.	further parts		71086102
13	O-ring 28.17×3.53 EPDM, FDA, USP, 3 pcs.	further parts		71140668
14	Profile gasket 29x36x3.7, FDA, 5 pcs.	further parts		52014424
15	Profile gasket 29x36x3.7, FDA, USP, 5pcs	further parts		71075662
16	M12-female plug connector, cable side			52006263
17	M12-female plug connec., 100deg,5m cable			52010285
18	Cable M12-plug to 90o M12-fem.plug,LED			52018763
19	Socket wrench 32AF			52010156
20	Test magnet			71267011
21	Weld-in adapter G3/4, d=29, 316L			71258357
22	Weld-in adapter G3/4, d=29, 316L, 3.1			52028295
23	Weld-in adapter G3/4 d=50, 316L			71258355
24	Weld-in adapter G3/4 d=50, 316L, 3.1			52018765
25	Welding dummy for weld-in ad. G3/4,brass			71675415
26	Blind plug for weld-in adap. G3/4, 316L			71675412
27	O-Ring 15,08×2,62 FKM, 5 pcs			71675404
28	O-ring 15,08×2,62 EPDM, 5 pcs			71675405
29	Weld-in adapter G1, d=53, 316L			71258358
30	Weld-in adapter G1, d=53, 316L, 3.1			71093129
31	Weld-in adapter G1, d=60, 316L			52001051
32	Weld-in adapter G1, d=60, 316L, 3.1			52011896
33	Weld-in adapter G1, adjustable, 316L			52001221
34	Weld-in adapter G1, adjustable,316L, 3.1			52011898
35	Welding dummy for weld-in adap. G1,brass			71675410
36	Welding dummy for weld-in ad. RD52,brass			71675411
37	Blind plug for weld-in adap.G1, 316L.3.1			71675413
38	Blind plug for weld-in ad. RD52,316L,3.1			71675414
39	Profile gasket 29x36x3,7 FKM, 5 pcs			71675408
40	O-Ring 28,17×3,53 FKM, 5 pcs			71675402
