Two-wire field device for hazardous and non hazardous areas and hygienic applications in chemical, life sciences and food & beverage industries

一目了然的规格

Input One channel transmitter for Memosens and analog (pH, ORP, conductivity)
Output / communication 4 to 20 mA, HART (optional), additional second output possible; HART communication, also later activatable
(UL 50E) DIN-rail housing: IP20
Ingress protection Field housing: IP66/67 (IEC 60529) NEMA 4X

应用领域

Liquiline CM42B provides precise and reliable measurement of pH, ORP, conductivity or oxygen in demanding process applications. Benefit from its intuitive local operation and configuration and use its Bluetooth interface and the SmartBlue app to get a detailed measuring point overview on your mobile devices. The Bluetooth communication is secured by a unique concept. No need to worry about intruders. Different device versions allow for flexible adaptation to all installation requirements.

好处

Comfortable operation and configuration: The intuitive operating concept makes commissioning and configuration on-site easy and fast. Bluetooth connection and the SmartBlue app provide an overview of the measuring point on your smartphone or tablet.

Unique security: The Bluetooth connection features a unique security concept that prevents intrusion and enables sophisticated role management of the operating staff. You profit from external and internal security.

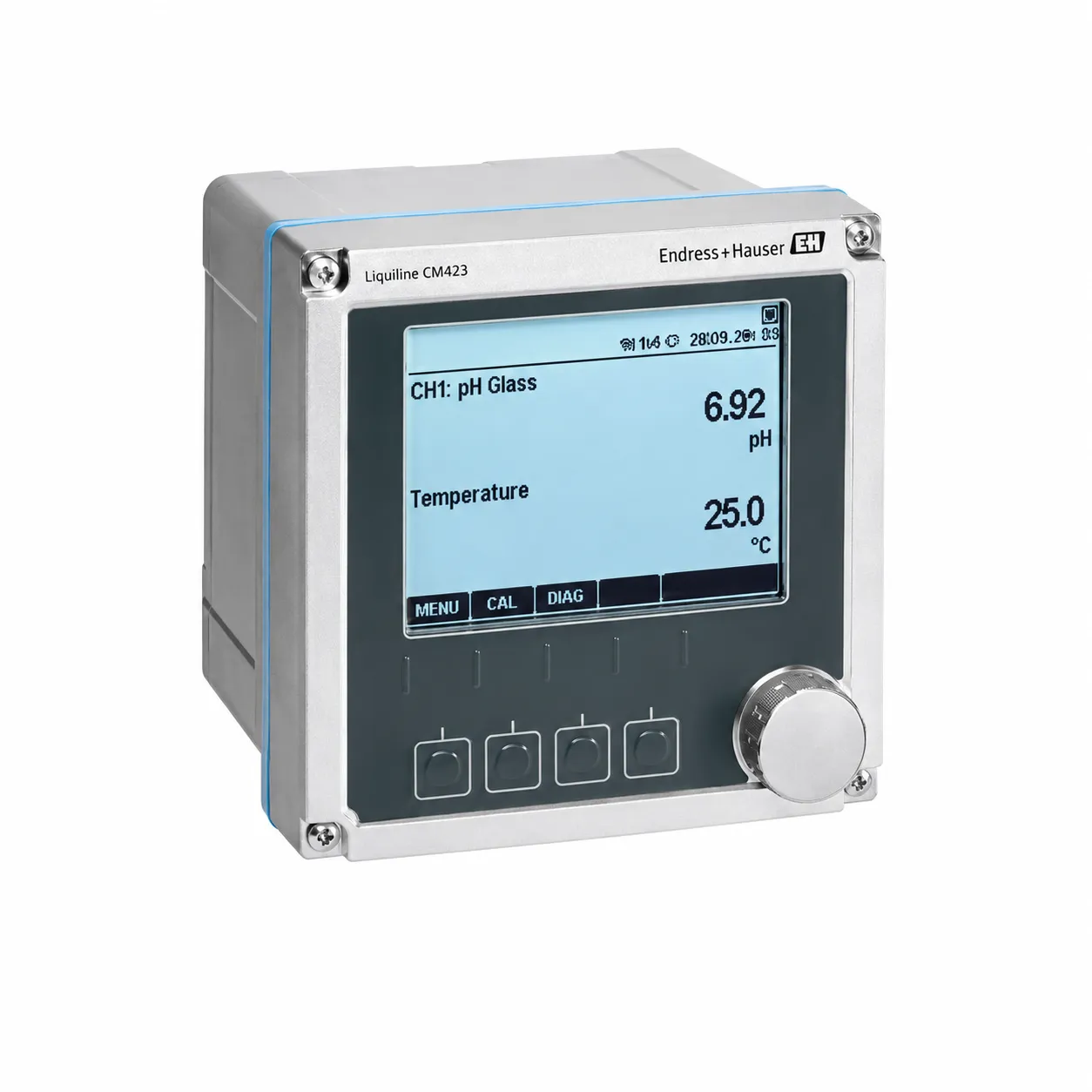

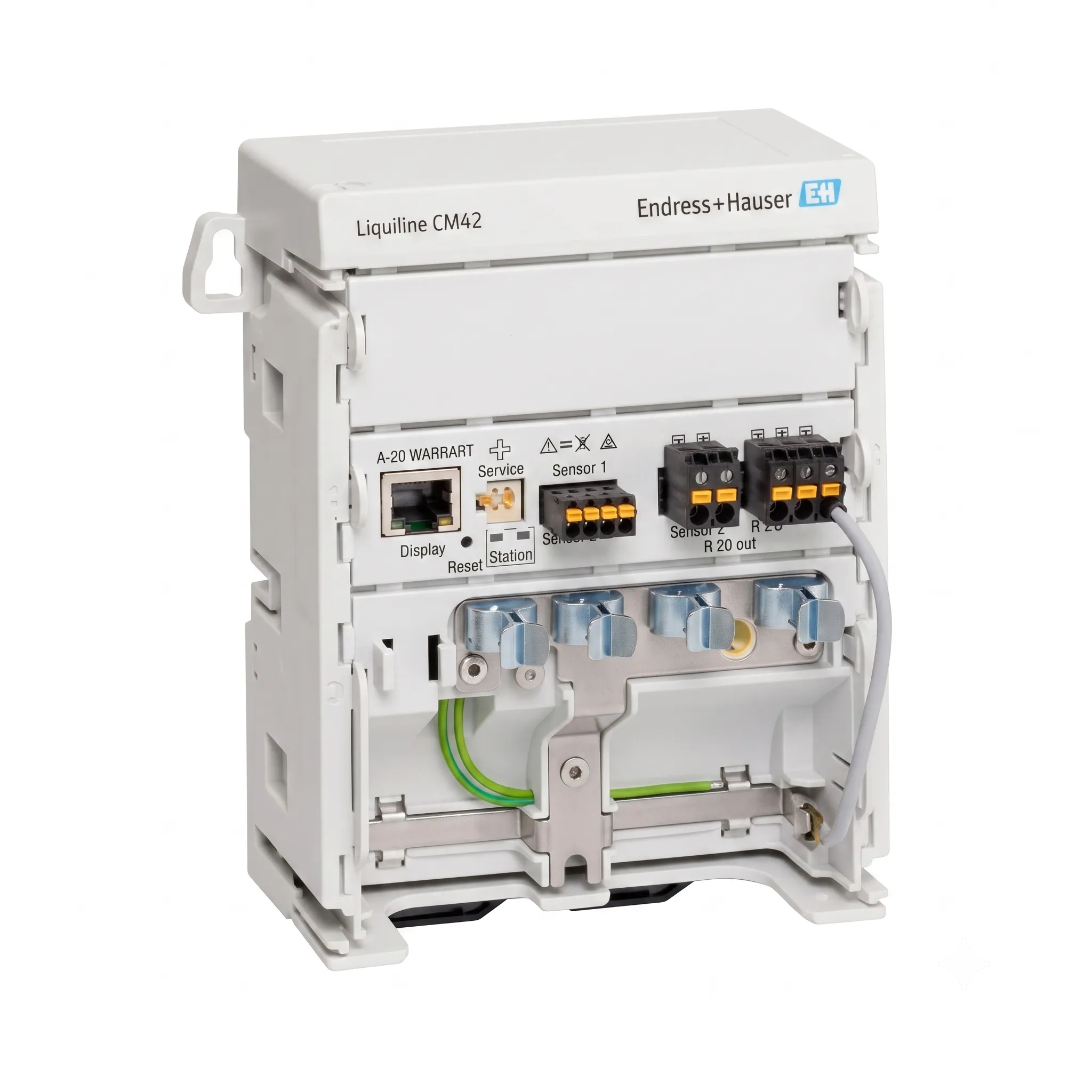

Suitable for all process environments: The transmitter is available as stainless steel, plastic or DIN-rail version. Simply select the suitable version to integrate it into a skid, use it in hygienic environments or apply it in hazardous areas.

Increased process safety and uptime: Memosens technology provides you with safe, digital data transmission and high availability of measured values. Plug & play of pre-calibrated sensors reduces process downtime for calibration.

Seamless system integration: Liquiline CM42B offers HCF-certified HART communication which makes integration into your process control system easy and secure.

备件及配件

	Title	类别	Drawing Number	订单代码
1	Kit CM42B Cable management module	其他零件	—	71693056
2	Kit CM42B Base module VICO1	其他零件	—	71667901
3	Kit CM42B Input analog CD cont. VSLC1	其他零件	—	71667903
4	Kit CM42B Input analog CD ind. VSLI1	其他零件	—	71667904
5	Kit CM42B Input analog pH/ORP VSPH1	其他零件	—	71667905
6	Kit CM42B Mainboard	其他零件	—	XPC0028-
7	Kit CM42B Cover + Display	其他零件	—	XPC0029-
8	IEC61406 Stainl.steel TAG	其他零件	—	71520947
9	IEC61406 Stainl.steel+NFC TAG	其他零件	—	71520949
10	IEC61406 Stainl.steel, stainl.steel TAG	其他零件	—	71520950
11	IEC61406 Stainl.steel+NFC, stainl.steel	其他零件	—	71520951
12	Pipe mounting kit CM442/CM444/CM448	—	—	71096920
13	Weather protection cover CYY101	—	—	CYY101-
