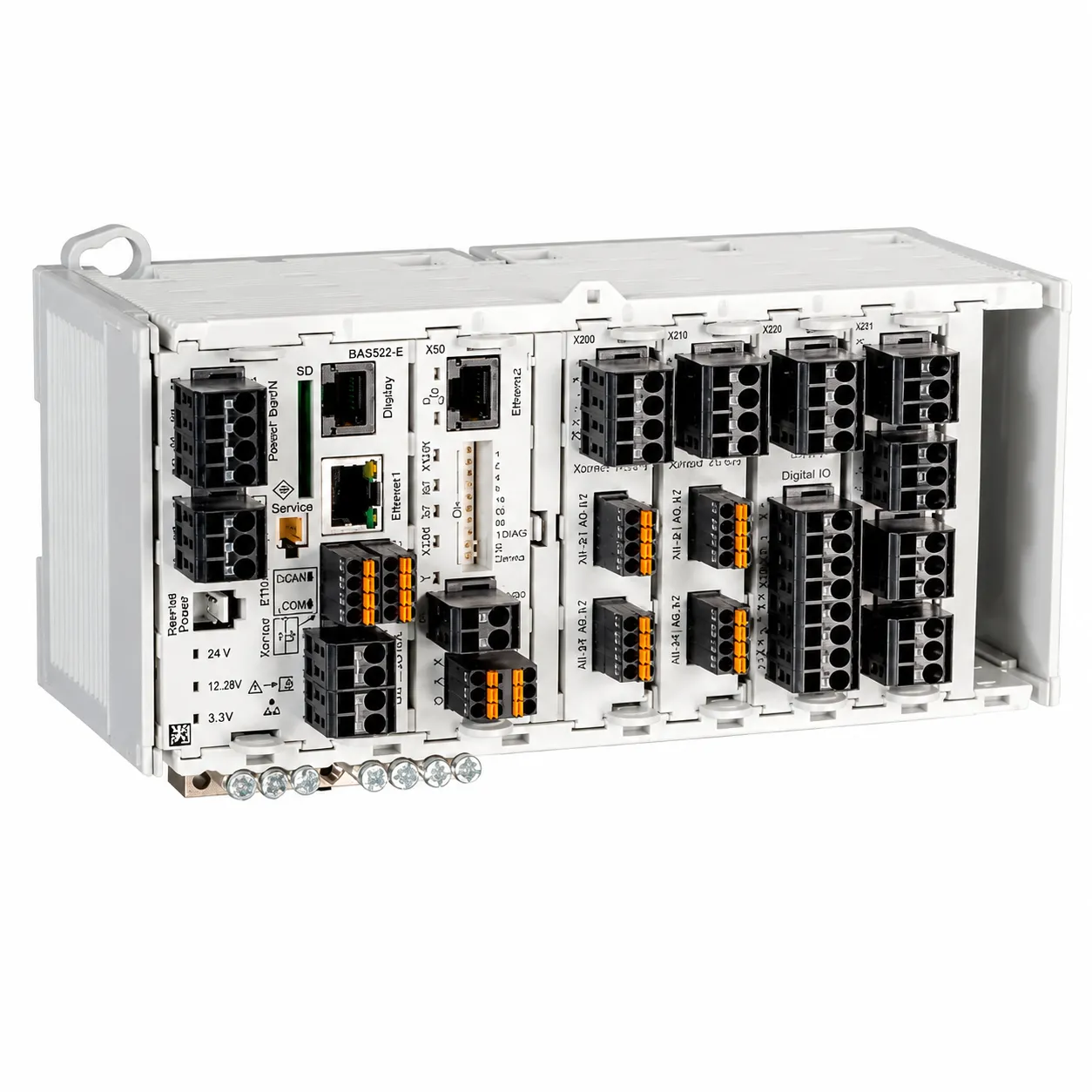

8-channel transmitter Liquiline CM448R | Endress Hauser E+H
8-channel transmitter Liquiline CM448R | Endress Hauser E+H - 图片 2

8-channel transmitter Liquiline CM448R | Endress Hauser E+H

Flexible multiparameter DIN-rail and cabinet device for all industries

请求报价

一目了然的规格

  • Input 1…8x Memosens digital input 2x 0/4..20mA Input optional 2..4x Digital input optional
  • Output / communication 2…8x 0/4…20 mA current outputs alarmrelay 4x relay ProfibusDP Modbus RS485 Modbus TCP Ethernet
  • Ingress protection IP20 transmitter IP66 optional Display

应用领域

Liquiline CM448R allows you to connect up to 8 Memosens sensors of your choice from over 12 measurement parameters. With its compact design, it fits into any cabinet – and even offers inputs, outputs, controllers, and math modules, e.g. for control of sensor cleaning. The transmitter belongs to the Liquiline platform with standardized system integration, operation, and spare parts. Heartbeat Technology helps you find the ideal balance between measurement point availability and maintenance costs.

好处

  • Saves space, saves money: Small footprint, 8 channels in one device, saves space in cabinets – perfect for skids.
  • High-speed installation: No cut-out in cabinet door, one-click DIN-rail mounting, minimized wiring.
  • Simple and safe commissioning: Saving configuration on SD card enables fast set-up on duplicate installations.
  • Easy to operate and service: Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, universal components fit all parameters.
  • Process control from a distance: Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser – even via Smartphone.
  • Higher availability, lower costs: Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.
  • Drive connectivity: Liquiline Edge Module CYY7 transfers process data to Netilion, independently of the fieldbus. This allows remote overview and the use of IIoT services. It’s available in new products or as upgrade to installed Liquiline platforms.

备件及配件

描述类别订单代码
1Kit base module BASE-E其他零件71141336
2Kit: base module BASE2-E其他零件71431302
3Kit: 1x set of terminals basic module其他零件71107452
4Kit: module ETH其他零件71272410
5Kit CM444R/8R Enclosure f. cabinet mount其他零件71222276
6Kit CM444R/8R DINrail powersupply 230VAC其他零件71222277
7Kit CM444R/8R DINrail powersupply 24 VDC其他零件71222279
8Kit CM44xR Internal cable f. 24 V supply其他零件71224563
9Kit CM44xR Covers for touch protection其他零件71222282
10Kit: external graph.display, cabinet其他零件71185295
11Kit: external graph. display, portable其他零件71185296
12Kit CM44xR Servicedisplay: Cable+Grommet其他零件71240608
13Kit module 2DS Ex-i其他零件71477718
14Kit: set 5end and blind cover其他零件71107455
15Kit : module AOR其他零件71111053
16Kit: module 4R其他零件71125376
17Kit: 1x set of terminals module 4R其他零件71155581
18Kit: module 2DS其他零件71135631
19Kit: module 2AO其他零件71135632
20Kit: 1x set of terminals module AOR其他零件71107453
21Kit: module 4AO其他零件71135633
22Kit: module 2AI其他零件71135639
23Kit: 1x set of terminals module 4AO其他零件71155582
24Kit: 1x set of terminals module 2xAI,485其他零件71155583
25Kit: module DIO其他零件71135638
26Kit: 1x set of terminals module DIO其他零件71219784
27Kit: module 485其他零件71135634
28Kit Module 485DP其他零件71575177
29Kit Module 485MB其他零件71575178
30备用RFID标签其他零件XPRFID-
31Spare IEC TAG其他零件XPSPEC-
32Kit Liquiline Edge Module CYY7其他零件CYY7-
33IEC61406 Stainl.steel TAG其他零件71520947
34IEC61406 Stainl.steel+NFC TAG其他零件71520949
35IEC61406 Stainl.steel, stainl.steel TAG其他零件71520950
36IEC61406 Stainl.steel+NFC, stainl.steel其他零件71520951
37Kit: module ETH71272410
38Kit : module AOR71111053
39Kit: module 2R71125375
40Kit: module 4R71125376
41Kit: module 2DS71135631
42Kit: module 2AO71135632
43Kit: module 4AO71135633
44Kit: module 2AI71135639
45Kit: module DIO71135638
46Kit: module 48571135634
47Kit Module 485DP71575177
48Kit Module 485MB71575178
49Upgrade Kit: Modul 485 DP + Profibus DP71140888
50Upgrade Kit: Modul 485 MB + Modbus RS48571140889
51Upgrade Kit: Modul 485 + Modbus TCP71140890
52Upgrade Kit: Modul 485 + EtherNet/IP71219868
53Upgrade Kit: Modul ETH + Modbus TCP71279809
54Upgrade Kit: Modul ETH + EtherNet/IP71279812
55Kit Liquiline Edge Module CYY7CYY7-
56Upgrade code: HART71128428
57Activation code EtherNet/IP + WebserverXPC0018-
58Upgrade code: Profibus DP module 48571135635
59Upgrade code:Modbus RS 485 module 48571135636
60Activation code Modbus TCP + WebserverXPC0020-
61Upgrade code: Modbus TCP f.module 48571135637
62Upgrade code: 2x 0/4..20mA Output71140891
63Activation code Webserver for BASE2XPC0021-
64Upgrade code: Feedforward control71211288
65Upgrade code: Measuring Range Switch71211289
66Activation code PROFINET+Webserver BASE2XPC0022-
67Upgrade code:EtherNet/IP f.module 48571219871
68Upgrade code Modbus TCP f.module ETH71279813
69Activation code HARTXPC0023-
70Upgrade code EtherNet/IP f module ETH71279830
71Activation code PROFIBUS DP 485 modulesXPC0024-
72Activation code ModbusRS485 485 modulesXPC0025-
73Activation code Liquiline inputs/outputsXPC0026-
74Activation codes additional functionsXPC0027-
75Upgrade code: Chemoclean Plus71239104
76Upgradecode Heartbeat Verifi.+Monitoring71367524
77Upgradecode Mathematic71367541
78Upgr.code:EtherNet/IP+Webserver BASE271449914
79Upgr.code Modbus TCP+Webserver BASE271449915
