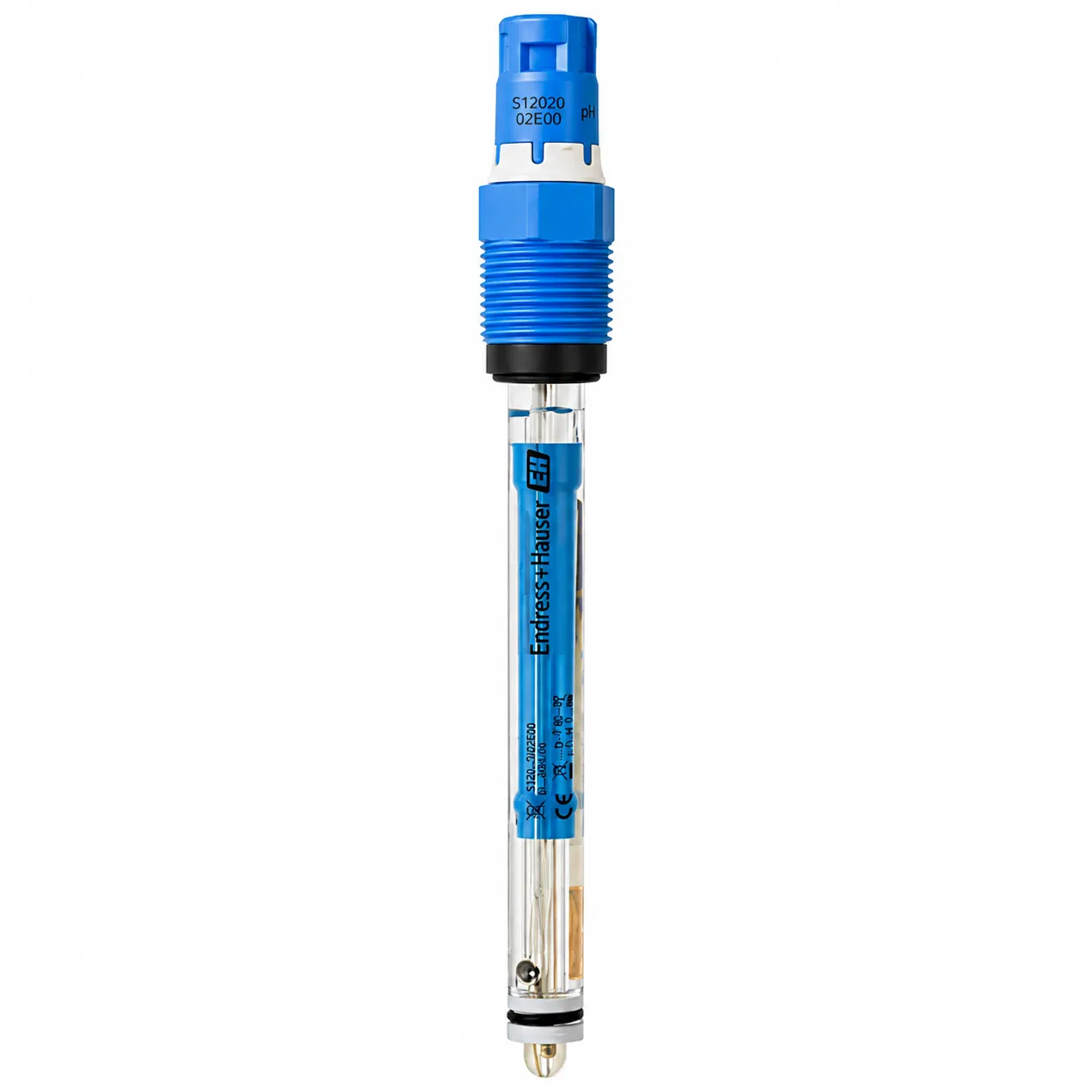

Digital combined pH/ORP sensor Memosens CPS16E | Endress Hauser E+H

Memosens 2.0 glass electrode for standard applications in process and water & wastewater industries

一目了然的规格

Measuring range ORP: –1 500 … 1 500 mV Application: A • pH: 1 to 12 Application B • pH: 0 to 14

Process temperature Application A: –15 to 80 °C (5 to 176 °F) Application B: 0 to 135 °C (32 to 275 °F)

Process pressure 0.8 to 17 bar (11.6 to 246,5 psi) absolute

应用领域

Memosens CPS16E is suitable for simultaneous pH and ORP measurement in applications with long-term stable conditions. Thanks to its pH and ORP elements, the sensor offers a better process overview and enables tighter process control. Memosens CPS16E features Memosens 2.0 digital technology, offering extended data storage for predictive maintenance. The pH/ORP sensor resists moisture and enables lab calibration which makes the operator’s daily tasks easier and maximizes process integrity.

好处

Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.

The additional platinum electrode enables constant monitoring of reference impedance and is a reliable indicator of the sensor quality.

Simultaneous measurement of pH, ORP and rH values (in rH mode) offers a better process overview and allows for a tighter process control.

Robust: Large PTFE ring junction and reference with ion trap prevent poisoning of the sensor.

Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 17 bar (246 psi).

Reduced operating costs: Lab calibration and fast sensor exchange on site minimize process downtime. Sensor regeneration in the laboratory extends the sensor lifetime.

Non-contact, digital signal transmission ensures reliable measurements resulting in maximum process safety.

备件及配件

	Title	类别	订单代码
1	Kit CPSxx protective caps	其他零件	71538217
2	Memoclip label Memosens sensor	—	71038228
3	Memoclip label memosens cable	—	71038229
4	KCL-Electrolyte solution CPY4	—	CPY4-
5	Technical buffer solution CPY20	—	CPY20-
6	Buffer solution CPY3	—	CPY3-
