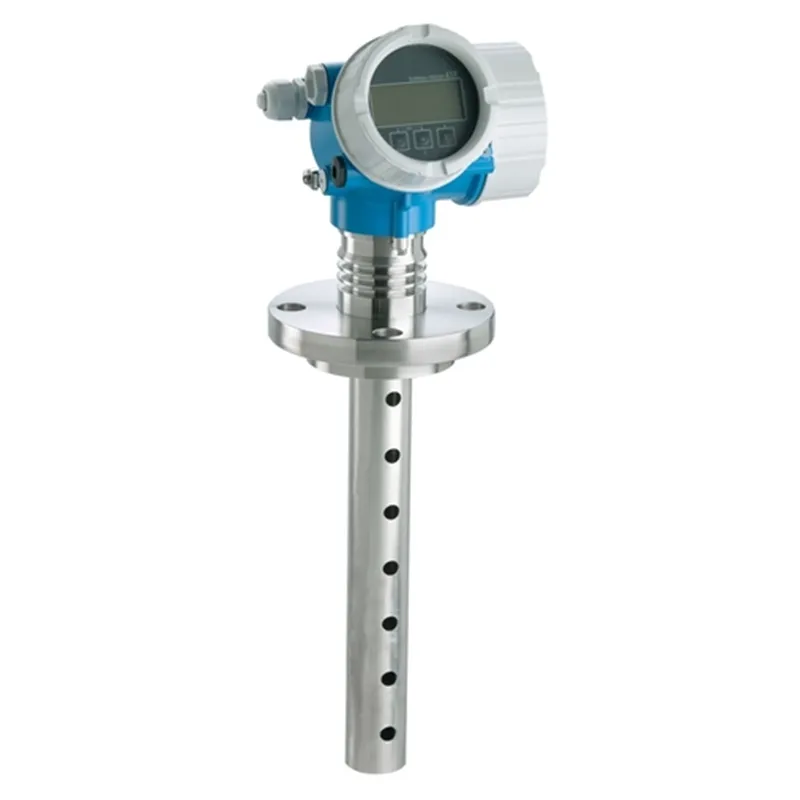

Guided radar measurement Time-of-Flight Levelflex FMP55 | Endress Hauser E+H

The Multiparameter device is the innovation in interface measurement

一目了然的规格

Accuracy Rod probe : +/- 2 mm (0.08 in) Rope probe: +/- 2 mm (0.08 in) Coaxial probe: +/- 2 mm (0.08 in)

Process temperature -40…+200 °C (-40…+392 °F)
Process pressure / max. overpressure limit Vacuum…40 bar (Vacuum…580 psi)

Max. measurement distance Rod: 4 m (13 ft) Min DK >1.4 Rope: 10 m (33 ft) Min DK >1.4 Coaxial: 6 m (20 ft) Min DK >1.4

Main wetted parts Rod probe: 316L, PTFE, PFA Rope probe: 316, 316L, PTFE, PFA Coaxial probe: 316L, PTFE, PFA

应用领域

Levelflex FMP55 guided radar with SensorFusion offers the worldwide first combination of the capacitance and guided radar measuring principle in one device. The instrument guarantees safe measured value acquisition even in emulsion layers and issues level and interface layer signals simultaneously. This makes the FMP55 Multiparameter the new standard in interface measurement especially in the oil & gas, chemical and petrochemical industry.

好处

Reliable measurement even for changing product and process conditions

HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

Highest reliability due to new Multi-Echo Tracking evaluation
Hardware and software developed according to IEC 61508 up to SIL3
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

Worlds easiest proof test for SIL and WHG saves time and costs

备件及配件

	描述	类别	Drawing No.	订单代码
1	Housing filter 316L, GT18, 1 set	Filter	19	71115174
2	Housing filter Brass/Ni GT19/20, 1 set	Filter	19	71115175
3	Set housing securing clamps	Housing/housing accessories	17	71115176
4	Cover GT18 316L, HNBR	Cover	20	71110281
5	Cover GT18 316L, sight glass, HNBR	Cover	20	71110282
6	Cover GT19 PBT, sight glass, EPDM	Cover	20	71110292
7	Cover GT19 PBT, EPDM	Cover	20	71110293
8	Cover GT20 Alu, sight glass, HNBR	Cover	20	71110297
9	Cover GT20 Alu, HNBR	Cover	20	71110299
10	Cover GT18 316L, terminal Ex d, HNBR	Cover	25	71110284
11	Cover GT18 316L, terminal Ex, HNBR	Cover	25	71110291
12	Cover GT18 316L, Terminal, OVP, HNBR	Cover	25	71185516
13	Cover GT19 PBT, Terminal Ex, EPDM	Cover	25	71110295
14	Cover GT19 PBT, Terminal, OVP, EPDM	Cover	25	71185518
15	Cover GT20 Alu, Terminal Ex, HNBR	Cover	25	71110301
16	Cover GT20 Alu, Terminal Ex d, HNBR	Cover	25	71110302
17	Cover GT20 Alu, Terminal, OVP, HNBR	Cover	25	71185517
18	Plug M12, IP66/68 NEMA4X/6P, ProToF	其他零件		71450381
19	Blind plug M20, Alu, Ex d	其他零件	14	71679714
20	Blind plug M20, 316L, Ex d	其他零件	14	71679712
21	Electronics Levelflex FMP5x	Electronic	30	XPF0001-
22	Electronics Levelflex FMP5x	Electronic	30	XPF0001-
23	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
24	I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2	I/O module	34	71187812
25	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
26	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
27	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
28	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
29	I/O module 2-wire, 4-20mA, HART, Ex, V2	I/O module	34	71108594
30	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
31	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
32	I/O mod.Level,2-wr2x4-20mA,HART,Ex,V1	I/O module	34	71108601
33	I/O mod. Level, 2-wr.2×4-20mA,HART,Ex,V2	I/O module	34	71207474
34	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
35	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
36	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
37	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
38	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
39	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
40	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
41	I/O module, 2-wr.,4-20mA,HART,PFS,Ex,V1	I/O module	34	71108599
42	I/O modLevel,4-wrDC,4-20mA,HART,Ex,V1	I/O module	34	71108604
43	I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2	I/O module	34	71207473
44	I/Omod.Level,4-wrAC,4-20mA,HART,Ex,V1	I/O module	34	71108605
45	I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2	I/O module	34	71207475
46	Terminal set 4-wire, I/O module	Terminals	37	71110279
47	Terminal set 2-wire, I/O module	Terminals	37	71110280
48	Transmitter electronics FHX50	其他零件		71197334
49	M12-female plug connector, VA	其他零件		71296840
50	Cable FHX50, FHX50B, 5m	其他零件		71206552
51	Cable FHX50, FHX50B, 10m	其他零件		71206554
52	Cable FHX50, FHX50B, 20m	其他零件		71206555
53	Cable FHX50, FHX50B, 30m	其他零件		71206556
54	Kit Display module,SD02,push buttons	Display	40	71109658
55	Kit Display module,SD03,Touch Control	Display	40	71162152
56	Display module, SD02, push buttons	Display	40	XPD0024-
57	Display module, SD03, Touch Control	Display	40	XPD0025-
58	HF-Coaxcable L=6m/18ft, plug	其他零件		71235564
59	Spare parts set – retrofit kit FHX50	其他零件		71248380
60	Probe FMP55 w/o process connection	Sensoric	55	XPF0013-
61	HF-Coax cable L=3m/9ft, plug	其他零件	70	71114823
62	备用RFID标签	其他零件		XPRFID-
63	Sealing set GT18/GT19/GT20, EPDM, HNBR	Sealing	65	71110303
64	Overvoltage protection (OVP10),1-Channel			71128617
65	Overvoltage protection (OVP20),2-Channel			71128619
66	Centering star PFA 37mm/16mm			71069065
67	Rope centering star, PEEK, 48-95mm, 1 pc			71373490
68	Rope centering star, PEEK, 48-95mm, 5 pc			71373492
69	Bluetooth module (BT10)			71377355
70	Mountingset for remote sensor			71102216
71	Weather protection cov.GT18/GT19/GT20			71132889
72	Weather prot. cover GT18/GT19/GT20, 316L			71162242
73	Centering star PFA 37mm/12mm			71157270
74	Screw in flange FAX50			FAX50-
