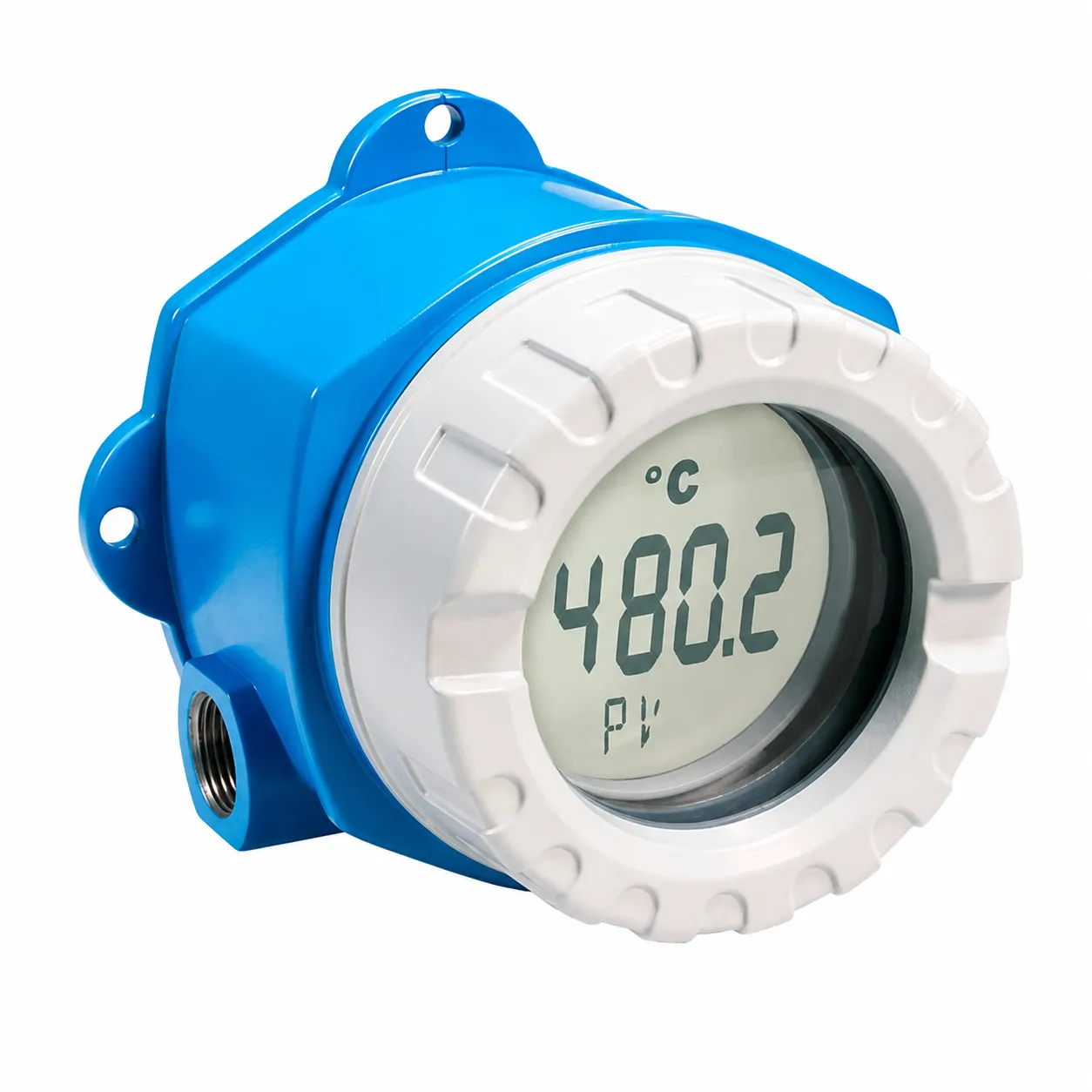

iTEMP TMT142B temperature transmitter | Endress Hauser E+H

HART® temperature field transmitter with one universal sensor input suitable for use in hazardous areas and with Bluetooth® communication

一目了然的规格

Accuracy (Pt100, -50…200 °C) <=0,1 K (Pt100, -58…392 °F)<=0,18 °F

应用领域

The single-channel iTEMP TMT142B transmitter with backlit display delivers highly reliable, accurate and long-term stable measurements in critical processes and hazardous areas. It offers secure remote operation via its integrated Bluetooth interface ( Endress+Hauser SmartBlue app), packaged in a robust single-chamber

field housing. It converts inputs from resistance sensors (RTD), thermocouple (TC), resistances (Ω) and voltage transmitters (mV) to a 4 to 20 mA signal and HART 7 communication.

好处

Certified for use in hazardous areas: CSA (IS, NI, XP and DIP), ATEX, INMETRO, NEPSI (Ex ia, Ex d, dust ignition-proof)
Reliable, long-term stable and accurate temperature measurement even under harsh environmental conditions thanks to a pressure encapsulated single-chamber housing and integrated overvoltage protection
Bluetooth interface: Save time and effort on commissioning, configuration and maintenance using the Endress+Hauser SmartBlue app
Predictive maintenance with advanced diagnostic functions andcondensed status notification according to NAMUR NE 107
Newly developed backlit display with large digits for clear process information under all ambient conditions

备件及配件

	描述	类别	订单代码
1	Spare Parts TMT142	其他零件	TMT142X-
2	Electronic TMT142E	其他零件	TMT142E-
3	Spare Parts TMT142	其他零件	TMT142X-
4	O-Ring 88×3 EPDM 70 PTFE-coated	其他零件	71158816
5	O-Ring 88×3 HNBR 70o Shore PTFE	其他零件	71502617
6	Housing TMT142G	其他零件	TMT142G-
7	Integrable Surge Arrester Module	其他零件	71386275
8	盖锁备件套件外壳	其他零件	51004948
9	O-Ring 18.77×1.78 HNBR 70o Shore PTFE	其他零件	71502941
10	Commubox FXA291 (Hardware)	其他零件	51516983
11	Commubox FXA195	其他零件	FXA195-
12	备用RFID标签	其他零件	XPRFID-
13	电缆接头 NPT1/2, D4.5-8.5 IP68		51006845
14	电缆接头 M20x1.5 ATEX/IECEx		71638066
15	Adapter NPT1/2/M20x1.5 cable entry		51004387
16	Adapter M20x1.5 exter./M24x1.5 intern.VA		51004915
17	Blanks (blind) NPT1/2, AlMgSiBi		51004490
18	Blanks (blind) NPT1/2 V4A		51006888
19	Blind plug M20x1.5 EEx-d+O-ring Alu		71525620
20	Blind plug G1/2″ Ex-d+O-ring Alu		71525621
21	Blind plug M20x1.5 Ex-d+O-ring V4A		71525622
22	Blind plug G1/2″ Ex-d+O-ring V4A		71525623
