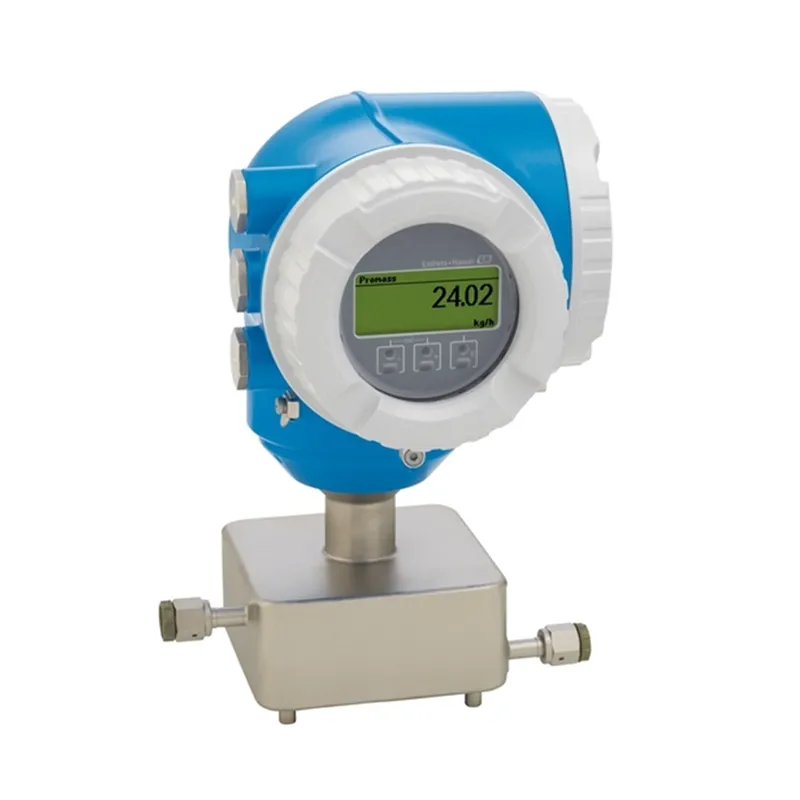

Proline Cubemass C 300 Coriolis flowmeter | Endress Hauser E+H

Compact sensor for smallest quantities with a compact, easily accessible transmitter

一目了然的规格

Max. measurement error Mass flow (liquid): ±0.10 % Volume flow (liquid): ±0.10 % Mass flow (gas): ±0.50 % Density (liquid): ±0.0005 g/cm3

Measuring range 0 to 1000 kg/h (0 to 37 lb/min)
Medium temperature range –50 to +205 °C (–58 to +401 °F)
Max. process pressure PN 40, Class 300, 10K, 400 bar (5800 psi)

Wetted materials Measuring tube: 1.4539 (904L) Connection: 1.4539 (904L); 1.4404 (316/316L)

应用领域

Cubemass C is the ideal sensor for the measurement of smallest flow rates in skids, test rigs and industrial robotics. Neither high pressure nor alternating flow conditions compromise its accuracy. With its compact transmitter Cubemass C 300 offers high flexibility in terms of operation and system integration: access from one side, remote display, improved connectivity options. Heartbeat Technology enables measurement reliability and compliant verification.

好处

Space-saving installation – compact single-tube design
Fewer process measuring points – multivariable measurement (flow, density, temperature)

Suitable for skids – lightweight sensor
Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet

Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology

备件及配件

	描述	类别	Drawing No.	订单代码
1	ISEM electronic module, Promass 300/500	Electronic	33	XPD0028-
2	I/O module, slot 1, 300/500	I/O module	34	XPD0037-
3	I/O module, slot 2/3/4, 300/500	I/O module	35	XPD0038-
4	Display module, 300/500/DKX001	Display	50	XPD0031-
5	Kit power supply, AC 100…240V, Ex	Power supply	31	71323007
6	Kit power supply, DC 24V, Ex	Power supply	31	71323008
7	Kit power sup.,AC100…240V/DC 24V,N-haz	Power supply	31	71323009
8	Kit T-DAT, 100/300/400/500	Memory	39	71185788
9	Kit module cartridge, 300/500, Ex	Electronic (periphery)	37	71323010
10	Kit module cartridge, 300/500, Non-haz	Electronic (periphery)	37	71323011
11	Kit ISEM ribbon cable, 300/500	Connection (electrical)	46	71323005
12	Kit conn.terminal option A,300/500,N-haz	Terminal module	45	71323073
13	Kit conn.terminal option B, 300, Non-haz	Terminal module	45	71323074
14	Kit conn.terminal option C,300/500,N-haz	Terminal module	45	71327818
15	Kit conn.terminal option A, 300/500, Ex	Terminal module	45	71323075
16	Kit conn.terminal option B, 300/500, Ex	Terminal module	45	71323076
17	Kit conn.terminal option C, 300/500, Ex	Terminal module	45	71327819
18	Kit terminal, transm.,remote display,300	Terminals	49	71323079
19	Kit cover, sight glass, Alu,Non-haz/Exde	Cover	20	71323016
20	Kit cover,glass, Alu, -50oC,Non-haz/Exde	Cover	20	71323017
21	Kit cover, blind, Alu, Non-haz/Exde	Cover	21	71323018
22	Kit cover, blind, Alu,-50oC,Non-haz/Exde	Cover	21	71323019
23	Kit cover, sight glass, Alu, Exd	Cover	20	71323020
24	Kit cover, sight glass, Alu, -50oC, Exd	Cover	20	71323021
25	Kit cover, blind, Alu, Exd	Cover	21	71323022
26	Kit cover, blind, Alu, -50oC, Exd	Cover	21	71323023
27	Kit cover gasket, sight glass/blind	Sealing	70	71323026
28	Kit cover gasket,sight glass/blind,-50oC	Sealing	70	71323027
29	Kit cover, electr.compart., Alu, Non-haz	Cover	22	71323028
30	Kit cover,electronic, Alu,- 50oC,Non-haz	Cover	22	71323029
31	Kit cover gasket,electr.compart.,Non-haz	Sealing	74	71323030
32	Kit cover gasket,electr., -50oC, Non-haz	Sealing	74	71323031
33	Kit cover, electronic compart., Alu, Ex	Cover	22	71323032
34	Kit cover, electr.compart., Alu,-50oC,Ex	Cover	22	71323033
35	Kit cover gasket, electronic compart.,Ex	Sealing	74	71323036
36	Kit cover gasket,elect.compart.,-50oC,Ex	Sealing	74	71323037
37	Kit cover, remote display, Alu	Cover	28	71323044
38	Kit cover, remote display, Alu, -50oC	Cover	28	71323045
39	Kit cover gasket, remote display	Sealing	76	71323048
40	Kit cover gasket, remote display, -50oC	Sealing	76	71323049
41	Kit interface gaskets, 300/500	Sealing	71	71323071
42	Kit interface gaskets, 300/500, -50oC	Sealing	71	71323072
43	Kit protect.cover option A,300/500,N-haz	Miscellaneous	11	71368488
44	Kit protective cover optionB,300,Non-haz	Miscellaneous	11	71368489
45	Kit protective cover option A,300/500,Ex	Miscellaneous	11	71323081
46	Kit protective cover option B,300/500,Ex	Miscellaneous	11	71323082
47	Kit plug M12, RJ45, L= 80mm	其他零件		71450719
48	Kit plug M12, RJ45, L= 175mm	其他零件		71450720
49	Seal set, Promass/Cubemass	其他零件		DKS-
50	备用RFID标签	其他零件		XPRFID-
51	Spare IEC TAG	其他零件		XPSPEC-
52	Kit weather protection cover, 300/500		87	71343505
53	Mounting plate Cubemass packed			71123816
54	Kit wireless antenna extended range			71351317
55	Transmitter Promass 300, 8X3BXX			8X3BXX-
56	Cubemass, mounting kit			DK8CS-
57	Remote Display DKX001			DKX001-
58	Connection Cable for Remote Display			DKX002-
