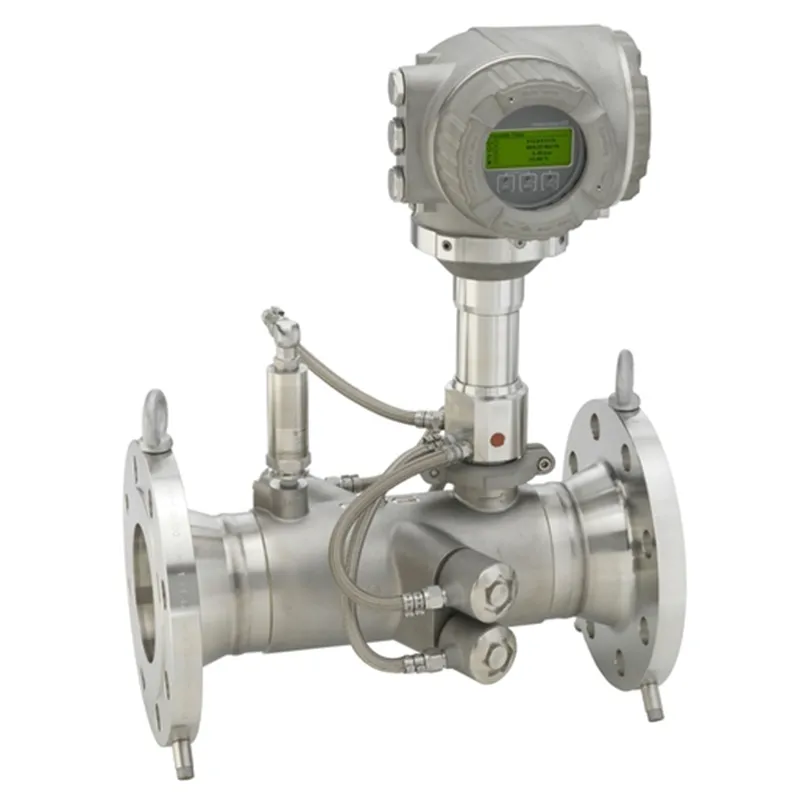

Proline Prosonic Flow G 300 ultrasonic flowmeter | Endress Hauser E+H

Proline Prosonic Flow G 300 ultrasonic flowmeter | Endress Hauser E+H

Highly robust gas specialist for fluctuating conditions with compact, easily accessible transmitter

请求报价

一目了然的规格

  • Max. measurement error Volume flow (standard): ‐ ±1.0 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±2 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Volume flow (optional calibration): ‐ ±0.5 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±1.0 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Corrected volume flow (standard): ‐ ±1.2 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±2.1 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Corrected volume flow (optional calibration): ‐ ±0.8 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±1.2 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Sound Velocity: ±0.2 % o.r.
  • Measuring range Gas: 0.3 m/s to 40 m/s
  • Medium temperature range -50 to 150 °C (-58 to +302°F) -50 to 100 °C (-58 to +212°F) with integrated pressure cell
  • Max. process pressure 0.7 to 101 bar a (10.15 to 1464.88 psi a)
  • Wetted materials Measuring tube: 1.4408/1.4409 (CF3M) Transducer: 1.4404 (316, 316L), Titan Grade 2

应用领域

For a wide range of gas applications Prosonic Flow G provides reliable flow measurement, even with wet gas and changing gas properties and compositions. A pressure-rated sensor housing with rupture disc limits safety risks. The compact transmitter offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times.

好处

  • Flexible device with user-definable gas mixtures for demanding measuring tasks
  • Maximum reliability even with humid or wet gas – sensor design insensitive to condensate
  • High-performance process control – real-time pressure- and temperature-compensated values
  • Efficient solution – multivariable, no pressure loss
  • Full access to process and diagnostic information – numerous, freely combinable I/Os
  • Reduced complexity and variety – freely configurable I/O functionality
  • Integrated verification – Heartbeat Technology

备件及配件

描述类别Drawing No.订单代码
1ISEM electr.mod.,Prosonic Flow G 300/500Electronic33XPD0048-
2I/O module, slot 1, 300/500I/O module34XPD0037-
3I/O module, slot 2/3/4, 300/500I/O module35XPD0038-
4Display module, 300/500/DKX001Display50XPD0031-
5Kit power supply, AC 100…240V, ExPower supply3171323007
6Kit power supply, DC 24V, ExPower supply3171323008
7Kit power sup.,AC100…240V/DC 24V,N-hazPower supply3171323009
8Kit T-DAT, 100/300/400/500Memory3971185788
9Kit module cartridge, 300/500, ExElectronic (periphery)3771323010
10Kit module cartridge, 300/500, Non-hazElectronic (periphery)3771323011
11Kit ISEM ribbon cable, 300/500Connection (electrical)4671459751
12Kit conn.terminal option A,300/500,N-hazTerminal module4571323073
13Kit conn.terminal option C,300/500,N-hazTerminal module4571327818
14Kit conn.terminal option A, 300/500, ExTerminal module4571323075
15Kit conn.terminal option C, 300/500, ExTerminal module4571327819
16Kit terminal, transm.,remote display,300Terminals4971323079
17Kit cover, sight glass, Alu,Non-haz/ExdeCover2071323016
18Kit cover,glass, Alu, -50oC,Non-haz/ExdeCover2071323017
19Kit cover, blind, Alu, Non-haz/ExdeCover2171323018
20Kit cover, blind, Alu,-50oC,Non-haz/ExdeCover2171323019
21Kit cover, sight glass, Alu, ExdCover2071323020
22Kit cover, sight glass, Alu, -50oC, ExdCover2071323021
23Kit cover, blind, Alu, ExdCover2171323022
24Kit cover, blind, Alu, -50oC, ExdCover2171323023
25Kit cover, sight glass, cast, ExCover2071323024
26Kit cover, sight glass, cast, -50oC, ExCover2071323025
27Kit cover, blind, cast, ExCover2171327102
28Kit cover, blind, cast, -50oC, ExCover2171327103
29Kit cover gasket, sight glass/blindSealing7071323026
30Kit cover gasket,sight glass/blind,-50oCSealing7071323027
31Kit cover, electr.compart., Alu, Non-hazCover2271323028
32Kit cover,electronic, Alu,- 50oC,Non-hazCover2271323029
33Kit cover gasket,electr.compart.,Non-hazSealing7471323030
34Kit cover gasket,electr., -50oC, Non-hazSealing7471323031
35Kit cover, electronic compart., Alu, ExCover2271323032
36Kit cover, electr.compart., Alu,-50oC,ExCover2271323033
37Kit cover, electronic compart., cast, ExCover2271323034
38Kit cover, electr.compart.,cast,-50oC,ExCover2271323035
39Kit cover gasket, electronic compart.,ExSealing7471323036
40Kit cover gasket,elect.compart.,-50oC,ExSealing7471323037
41Kit cover, remote display, AluCover2871323044
42Kit cover, remote display, Alu, -50oCCover2871323045
43Kit cover, remote display, castCover2871323046
44Kit cover, remote display, cast, -50oCCover2871323047
45Kit cover gasket, remote displaySealing7671323048
46Kit cover gasket, remote display, -50oCSealing7671323049
47Kit interface gaskets, 300/500Sealing7171323071
48Kit interface gaskets, 300/500, -50oCSealing7171323072
49Kit protect.cover option A,300/500,N-hazMiscellaneous1171368488
50Kit protective cover option A,300/500,ExMiscellaneous1171323081
51Kit plug M12, RJ45, L= 175mm其他零件71450720
52备用RFID标签其他零件XPRFID-
53Spare IEC TAG其他零件XPSPEC-
54Kit weather protection cover, 300/5008771343505
55Kit wireless antenna extended range71351317
56Transmitter Prosonic Flow 300, 9X3BXX9X3BXX-
57Remote Display DKX001DKX001-
58Connection Cable for Remote DisplayDKX002-
