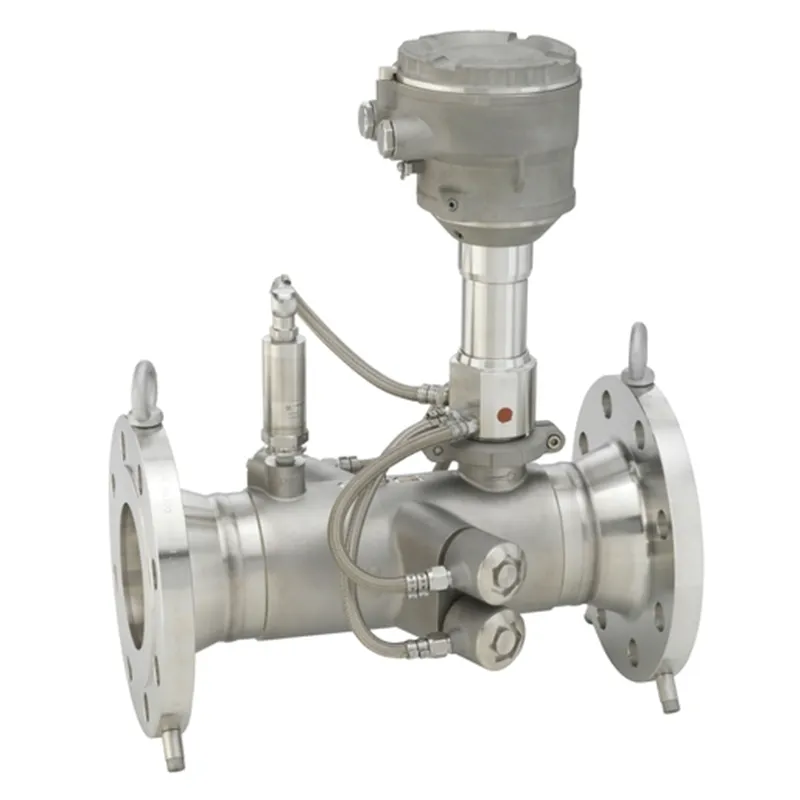

Proline Prosonic Flow G 500 ultrasonic flowmeter | Endress Hauser E+H

Highly robust gas specialist for fluctuating process conditions as remote version with up to 4 I/Os

一目了然的规格

Max. measurement error Volume flow (standard): ‐ ±1.0 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±2 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Volume flow (optional calibration): ‐ ±0.5 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±1.0 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Corrected volume flow (standard): ‐ ±1.2 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±2.1 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Corrected volume flow (optional calibration): ‐ ±0.8 % o.r. for 3 to 40 m/s (9.84 to 131.23 ft/s) ‐ ±1.2 % o.r. for 0.3 to 3 m/s (0.98 to 9.84 ft/s) Sound Velocity: ±0.2 % o.r.

Measuring range Gas: 0.3 m/s to 40 m/s
Medium temperature range -50 to 150 °C (-58 to +302°F) -50 to 100 °C (-58 to +212°F) with integrated pressure cell
Max. process pressure 0.7 to 101 bar a (10.15 to 1464.88 psi a)
Wetted materials Measuring tube: 1.4408/1.4409 (CF3M) Transducer: 1.4404 (316, 316L, Titan Grade 2

应用领域

For a wide range of gas applications Prosonic Flow G provides reliable flow measurement, even with wet gas and changing gas properties and compositions. A pressure-rated sensor housing with rupture disc limits safety risks. The innovative remote transmitter maximizes installation flexibility and operational safety in demanding environments. Heartbeat Technology enables compliance and process safety at all times.

好处

Flexible device with user-definable gas mixtures for demanding measuring tasks

Maximum reliability even with humid or wet gas – sensor design insensitive to condensate

High-performance process control – real-time pressure- and temperature-compensated values

Efficient solution – multivariable, no pressure loss
Full access to process and diagnostic information – numerous, freely combinable I/Os

Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology

备件及配件

	描述	类别	Drawing No.	订单代码
1	ISEM electr.mod.,Prosonic Flow G 300/500	Electronic	33	XPD0048-
2	I/O module, slot 1, 300/500	I/O module	34	XPD0037-
3	I/O module, slot 2/3/4, 300/500	I/O module	35	XPD0038-
4	I/O module, slot 2/3/4, 300/500	I/O module	35	XPD0038-
5	Display module, 300/500/DKX001	Display	50	XPD0031-
6	Kit power sup.,AC100…240V/DC 24V,N-haz	Power supply	31	71323009
7	Kit main elec.extender,500 dig., Non-haz	Electronic (periphery)	47	71323013
8	Kit main elec. extender, 500 dig.,Ex	Electronic (periphery)	47	71323014
9	Kit ISEM extender, 500 digital, Ex	Electronic (sensor)	36	71434751
10	Kit T-DAT, 100/300/400/500	Memory	39	71185788
11	Kit ISEM ribbon cable, 500 digital	Connection (electrical)	46	71459753
12	Kit terminal option A, 500 dig., Non-haz	Terminal module	45	71323077
13	Kit terminal option C, 500 dig., Non-haz	Terminal module	45	71327820
14	Kit cover, alu, 400, 500 digital	Cover	20	71384170
15	Kit cover, polycarbonate	Cover	20	71408508
16	Kit 10 cover seals, alu, 400,500 digital	Sealing	70	71278078
17	Kit 10 cover seals, polycarbonate	Sealing	70	71278077
18	Kit cover, remote, Alu	Cover	24	71228796
19	Kit cover, remote, Alu, -50oC	Cover	24	71323050
20	Kit housing gaskets, remote, Alu	Sealing	73	71323051
21	Kit housing gaskets, remote, Alu, -50oC	Sealing	73	71323052
22	Kit cover, remote, cast, Ex	Cover	24	71323063
23	Kit cover, remote, cast, -50oC, Ex	Cover	24	71323064
24	Kit housing gaskets, remote, cast, Ex	Sealing	73	71323065
25	Kit housing gaskets,remote,cast,-50oC,Ex	Sealing	73	71323066
26	Kit securing clamp, screw	Housing/housing accessories	13	71276494
27	Kit plug M12, RJ45, L= 80mm	其他零件		71450719
28	备用RFID标签	其他零件		XPRFID-
29	Spare IEC TAG	其他零件		XPSPEC-
30	Kit display protection, 400, 500 digital		82	71228792
31	Kit weather prot.cover, 400/800/500 dig.		87	71343504
32	Pipe mounting kit, 400/800/500 digital			71346427
33	Kit wireless antenna extended range			71351317
34	Transmitter Prosonic Flow 500, 9X5BXX			9X5BXX-
35	Sensor cable set, Prosonic Flow 500			DK9012-
