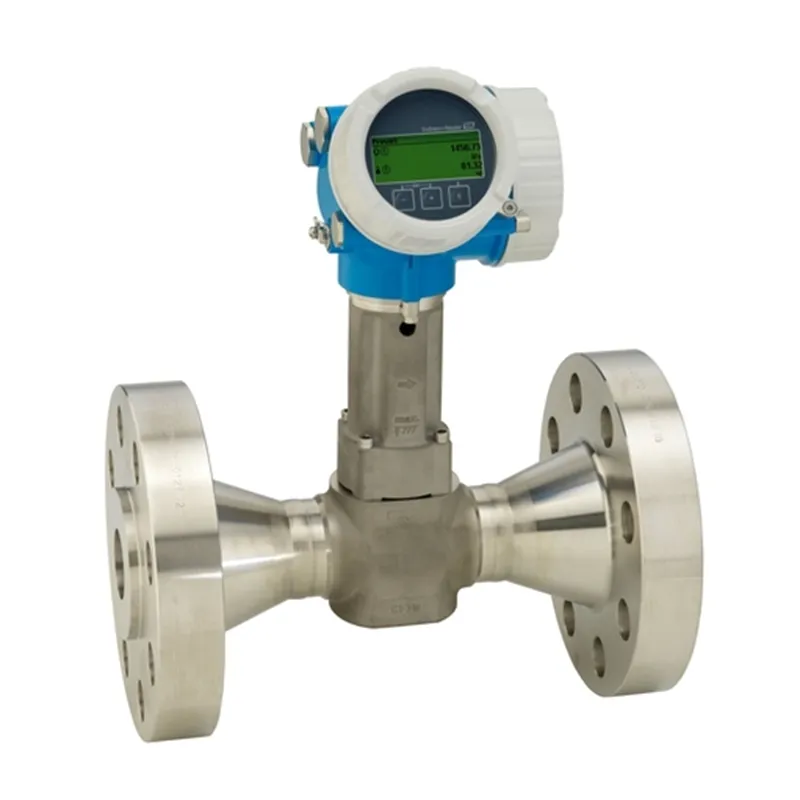

Proline Prowirl O 200 vortex flowmeter | Endress Hauser E+H

Proline Prowirl O 200 vortex flowmeter | Endress Hauser E+H

Flowmeter optimized for requirements of high-pressure mating pipes

请求报价

一目了然的规格

  • Max. measurement error Volume flow (liquid): ±0.75 % Volume flow (steam, gas): ±1.00 % Mass flow (saturated steam): ±1.7% (temperature compensated); ±1.5% (temperature/pressure compensated) Mass flow (superheated steam, gas): ±1.5 (temperature/pressure compensated); ±1.7% (temperature compensated + external pressure compensation) Mass flow (liquid): ±0.85%
  • Measuring range Liquid: 0.2 to 1895 m³/h (0.15 to 1115 ft³/ min) depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F) Steam, gas: 1.5 to 25285 m³/h (0.9 to 14880 ft³/min) depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)
  • Medium temperature range Standard: –40 to +260 °C (–40 to +500 °F) High/low temperature (option): –200 to +400 °C (–328 to +752 °F)
  • Max. process pressure PN 250, Class 1500, 40K
  • Wetted materials Measuring tube: 1.4408 (CF3M) DSC sensor: UNS N07718 similar to Alloy 718, 2.4668 Process connection: 1.4404/F316/F316L

应用领域

Prowirl O is ideally suited for reliable process control in demanding gas and steam applications with high process pressure. Moreover, its design ensures maximum safety in main and ancillary processes. With genuine loop-powered technology, Prowirl O 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas. Heartbeat Technology enables process safety at all times.

好处

  • Better process control – integrated temperature and pressure measurement for steam and gases
  • Increased mechanical integrity for flow measurement – special sensor design
  • Same accuracy down to Re 10 000 – most linear Vortex meter body
  • Long-term stability – robust drift-free capacitive sensor
  • Convenient device wiring – separate connection compartment, various output options including Ethernet
  • Safe operation – no need to open the device
  • Integrated verification – Heartbeat Technology

备件及配件

序号名称 / 零部件描述 (Description)分类 (Category)图号 (Drawing No.)订货号 (Order Code)
1Electronic, Prowirl 200 Index CElectronic30XPD0043-
2I/O module Flow, 2-wr. 2×4-20mA,HART, ExI/O module3471108602
3I/O module, 2-wire, 4-20mA, HART, ExI/O module34XPD0015-
4I/O module, 2-wire, 4-20mA,HART, PFS, ExI/O module34XPD0016-
5I/O,2-wire,4-20mA,HART,PFS,4-20mA inputI/O module34XPD0018-
6I/O,2-wire,PROFINET w. Ethernet-APL/SPEI/O module34XPD0093-
7I/O,2-wire,Modbus TCP o.Ethernet-APL/SPEI/O module34XPD0094-
8I/O module, 2-wire, PA/FF, PFS, Ex, V2I/O module3471164940
9Kit pre-amplifier, Prowirl 200Electronic3671222996
10Overvoltage protection (OVP10),1-Channel其他零件71128617
11Overvoltage protection (OVP20),2-Channel其他零件71128619
12Display module, SD02, push buttonsDisplay40XPD0024-
13Display module, SD03, Touch ControlDisplay40XPD0025-
14Transmitter electronics FHX50其他零件71197334
15M12-female plug connector, VA其他零件71296840
16Cable FHX50, FHX50B, 5m其他零件71206552
17Cable FHX50, FHX50B, 10m其他零件71206554
18Cable FHX50, FHX50B, 20m其他零件71206555
19Cable FHX50, FHX50B, 30m其他零件71206556
20Kit cable harness, PW200, compact,remoteCable/cable accessories4671222998
21Kit cable harness, PW200, remote,electr.Cable/cable accessories4771377445
22Kit connection board, remote, electronicConnection (electrical)4371223001
23Kit connection board, remote, sensorConnection (electrical)4471223003
24Kit connection board, remote, electronicConnection (electrical)4871377446
25Kit connection board, remote, sensorConnection (electrical)4971377447
26Terminal set 2-wire, I/O moduleTerminals3771110280
27Cover GT18 316L, HNBRCover2071110281
28Cover GT18 316L, sight glass, HNBRCover2071110282
29Cover GT18 316L, terminal Ex, HNBRCover2571110291
30Cover GT18 316L, terminal Ex d, HNBRCover2571110284
31Cover GT18 316L, Terminal, OVP, HNBRCover2571185516
32Cover GT20 Alu, HNBRCover2071110299
33Cover GT20 Alu, sight glass, HNBRCover2071110297
34Cover GT20 Alu, Terminal Ex, HNBRCover2571110301
35Cover GT20 Alu, Terminal Ex d, HNBRCover2571110302
36Cover GT20 Alu, Terminal, OVP, HNBRCover2571185517
37Kit cover, Alu, remote, sensorCover2471223005
38Kit cover,Alu,remote,sensor, -50掳C/-58掳FCover2471223006
39Kit cover, 316L, remote, sensorCover2471223009
40Kit cover,316L,remote,sensor,-50掳C/-58掳FCover2471223011
41Sealing set GT18/GT19/GT20, EPDM, HNBRSealing6571110303
42Kit gaskets housing, remote, sensorSealing7371223053
43Kit gaskets housing,remote,sensor, -50掳CSealing7371223054
44Housing filter 316L, GT18, 1 setFilter1971115174
45Housing filter Brass/Ni GT19/20, 1 setFilter1971115175
46Set housing securing clampsHousing/housing accessories1771115176
47Kit cable, PW200, remote, 5m, bl, M12Cable/cable accessories6171223055
48Kit cable, PW200, remote, 5m, bk, M12Cable/cable accessories6171223056
49Kit cable, PW200, remote, 10m, bl, M12Cable/cable accessories6171223057
50Kit cable, PW200, remote, 10m, bk, M12Cable/cable accessories6171223058
51Kit cable, PW200, remote, 20m, bl, M12Cable/cable accessories6171223059
52Kit cable, PW200, remote, 20m, bk, M12Cable/cable accessories6171223060
53Kit cable, PW200, remote, 30m, bl, M12Cable/cable accessories6171223061
54Kit cable, PW200, remote, 30m, bk, M12Cable/cable accessories6171223062
55Kit cable, PW200, remote, 5m, blCable/cable accessories6171223063
56Kit cable, PW200, remote, 5m, bkCable/cable accessories6171223064
57Kit cable, PW200, remote, 10m, blCable/cable accessories6171223065
58Kit cable, PW200, remote, 10m, bkCable/cable accessories6171223067
59Kit cable, PW200, remote, 20m, blCable/cable accessories6171223068
60Kit cable, PW200, remote, 20m, bkCable/cable accessories6171223069
61Kit cable, PW200, remote, 30m, blCable/cable accessories6171223070
62Kit cable, PW200, remote, 30m, bkCable/cable accessories6171223071
63Kit cable,PW200, remote,armoured,10m, bkCable/cable accessories6171223073
64Kit cable,PW200, remote,armoured,20m, bkCable/cable accessories6171223074
65Kit cable,PW200, remote,armoured,30m, bkCable/cable accessories6171223075
66Kit cable, PW200 Index C, remote 5mCable/cable accessories6171478281
67Kit cable, PW200 Index C, remote 10mCable/cable accessories6171377465
68Kit cable, PW200 Index C, remote 30mCable/cable accessories6171377466
69备用RFID标签其他零件XPRFID-
70Spare IEC TAG其他零件XPSPEC-
71Weather prot. cover GT18/GT19/GT20, 316L71162242
72Transmitter Prowirl 200, 7X2CXX7X2CXX-
73Transmitter Prowirl, mounting setDK8WM-
