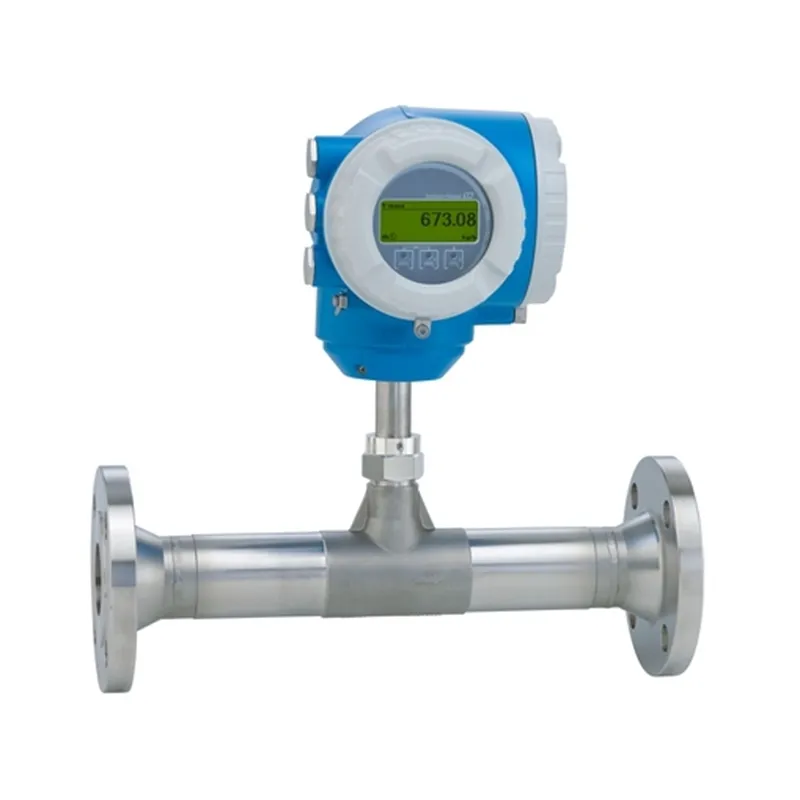

Proline t-mass F 300 thermal mass flowmeter | Endress Hauser E+H

Inline flowmeter with long-term stability and a compact, easily accessible transmitter

一目了然的规格

Max. measurement error Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)

Measuring range 0.5 to 3750 kg/h (1.1 to 8250 lb/h)
Medium temperature range -40 °C to +180°C (-40 °F to +356 °F)
Max. process pressure PN40 / Cl. 300 / 20K
Wetted materials Measuring tubes DN 15 to 50 (½ to 2″): stainless cast steel, CF3M/1.4408 DN 65 to 100 (2½ to 4″): stainless steel, 1.4404 (316/316L) Process connections Flange connections Stainless steel, 1.4404 (F316/F316L) Threaded connections Stainless steel, 1.4404 (316/316L) Sensing element Unidirectional Stainless steel, 1.4404 (316/316L) Alloy C22, 2.4602 (UNS N06022); Bidirectional Stainless steel, 1.4404 (316/316L) Reverse flow detection Stainless steel, 1.4404 (316/316L)

应用领域

好处

Flexible, convenient programming based on 21 standard gases or freely definable gas mixtures thereof

High level of process control – premium measurement accuracy and repeatability

Reliable monitoring – detection of process disturbances and reverse flow

Easy maintenance – removable sensor
Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses

Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology

备件及配件

	描述	类别	Drawing No.	订单代码
1	ISEM electr.mod., t-mass 300/500 digital	Electronic	33	XPD0052-
2	ISEM electr.mod., t-mass 300	Electronic	33	XPD0053-
3	I/O module, slot 1, 300/500	I/O module	34	XPD0037-
4	I/O module, slot 2/3/4, 300/500	I/O module	35	XPD0038-
5	Display module, 300/500/DKX001	Display	50	XPD0031-
6	Kit power supply, AC 100…240V, Ex	Power supply	31	71323007
7	Kit power supply, DC 24V, Ex	Power supply	31	71323008
8	Kit power sup.,AC100…240V/DC 24V,N-haz	Power supply	31	71323009
9	Kit T-DAT, 100/300/400/500	Memory	39	71185788
10	Kit module cartridge, 300/500, Ex	Electronic (periphery)	37	71323010
11	Kit module cartridge, 300/500, Non-haz	Electronic (periphery)	37	71323011
12	Kit ISEM ribbon cable, 300/500	Connection (electrical)	46	71323005
13	Kit conn.terminal option A,300/500,N-haz	Terminal module	45	71323073
14	Kit conn.terminal option C,300/500,N-haz	Terminal module	45	71327818
15	Kit conn.terminal option A, 300/500, Ex	Terminal module	45	71323075
16	Kit conn.terminal option C, 300/500, Ex	Terminal module	45	71327819
17	Kit terminal, transm.,remote display,300	Terminals	49	71323079
18	Kit cover, sight glass, Alu,Non-haz/Exde	Cover	20	71323016
19	Kit cover,glass, Alu, -50oC,Non-haz/Exde	Cover	20	71323017
20	Kit cover, blind, Alu, Non-haz/Exde	Cover	21	71323018
21	Kit cover, blind, Alu,-50oC,Non-haz/Exde	Cover	21	71323019
22	Kit cover, sight glass, Alu, Exd	Cover	20	71323020
23	Kit cover, sight glass, Alu, -50oC, Exd	Cover	20	71323021
24	Kit cover, blind, Alu, Exd	Cover	21	71323022
25	Kit cover, blind, Alu, -50oC, Exd	Cover	21	71323023
26	Kit cover gasket, sight glass/blind	Sealing	70	71323026
27	Kit cover gasket,sight glass/blind,-50oC	Sealing	70	71323027
28	Kit cover, electr.compart., Alu, Non-haz	Cover	22	71323028
29	Kit cover,electronic, Alu,- 50oC,Non-haz	Cover	22	71323029
30	Kit cover gasket,electr.compart.,Non-haz	Sealing	74	71323030
31	Kit cover gasket,electr., -50oC, Non-haz	Sealing	74	71323031
32	Kit cover, electronic compart., Alu, Ex	Cover	22	71323032
33	Kit cover, electr.compart., Alu,-50oC,Ex	Cover	22	71323033
34	Kit cover gasket, electronic compart.,Ex	Sealing	74	71323036
35	Kit cover gasket,elect.compart.,-50oC,Ex	Sealing	74	71323037
36	Kit cover, remote display, Alu	Cover	28	71323044
37	Kit cover, remote display, Alu, -50oC	Cover	28	71323045
38	Kit cover gasket, remote display	Sealing	76	71323048
39	Kit cover gasket, remote display, -50oC	Sealing	76	71323049
40	Kit interface gaskets, 300/500	Sealing	71	71323071
41	Kit interface gaskets, 300/500, -50oC	Sealing	71	71323072
42	Kit protect.cover option A,300/500,N-haz	Miscellaneous	11	71368488
43	Kit protective cover option A,300/500,Ex	Miscellaneous	11	71323081
44	Kit plug M12, RJ45, L= 175mm	其他零件		71450720
45	备用RFID标签	其他零件		XPRFID-
46	Spare IEC TAG	其他零件		XPSPEC-
47	Kit weather protection cover, 300/500		87	71343505
48	Kit wireless antenna extended range			71351317
49	Transmitter t-mass 300, 6X3BXX			6X3BXX-
50	Remote Display DKX001			DKX001-
51	Connection Cable for Remote Display			DKX002-
