Radar measurement Time-of-Flight Micropilot FMR54 | Endress Hauser E+H

Radar measurement Time-of-Flight Micropilot FMR54 | Endress Hauser E+H - 图片 2

Radar measurement Time-of-Flight Micropilot FMR54 | Endress Hauser E+H

For level measurement in liquids where strong steam or ammonia can occur

一目了然的规格

Accuracy +/- 6 mm (0.24 in)
Process temperature -60…+400°C (-76…+752°F)
Process pressure / max. overpressure limit Vacuum…160 bar (Vacuum…2320 psi)
Max. measurement distance Standard: 20 m (65 ft) Planar antenna in stilling well: 38 m (125 ft)
Main wetted parts 316L

应用领域

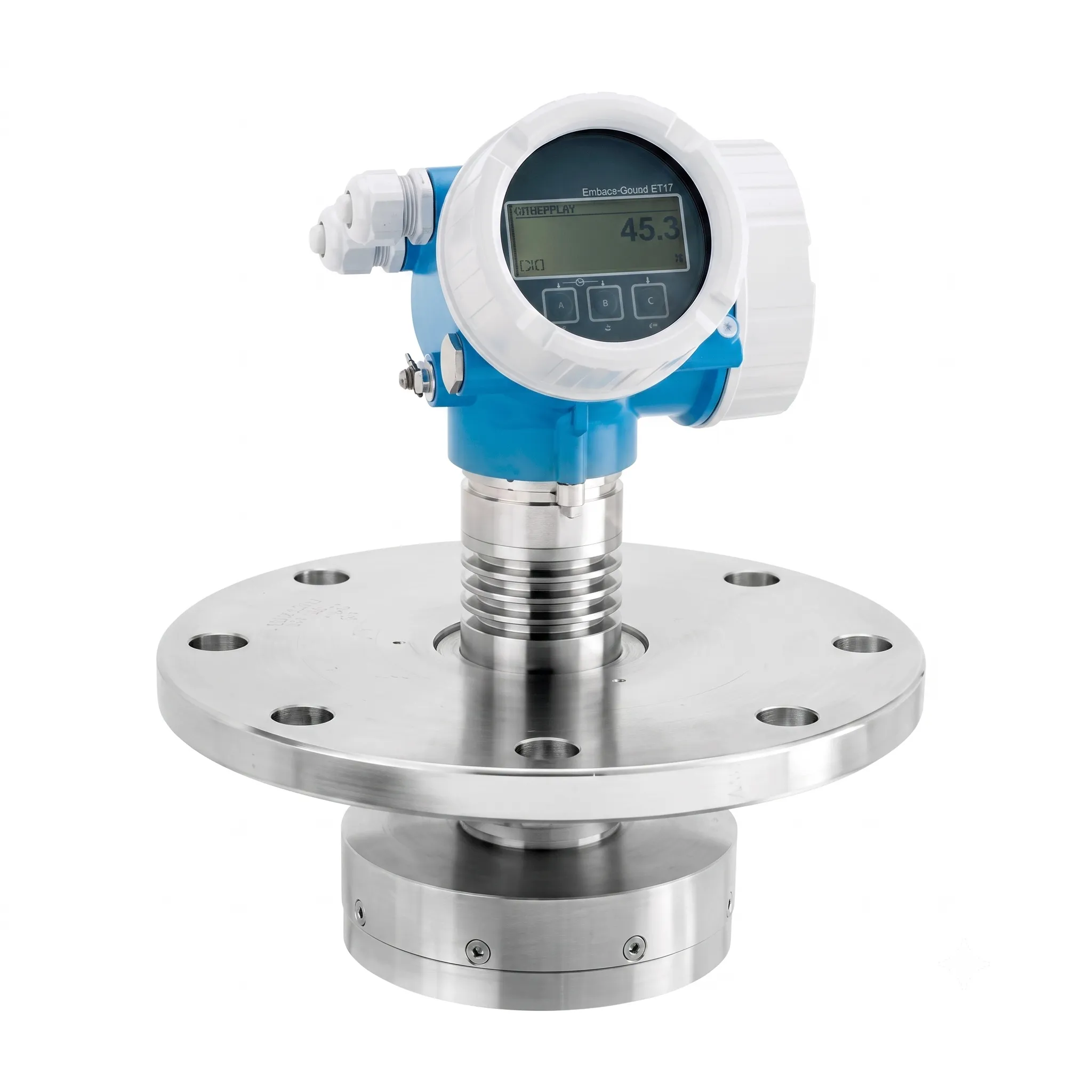

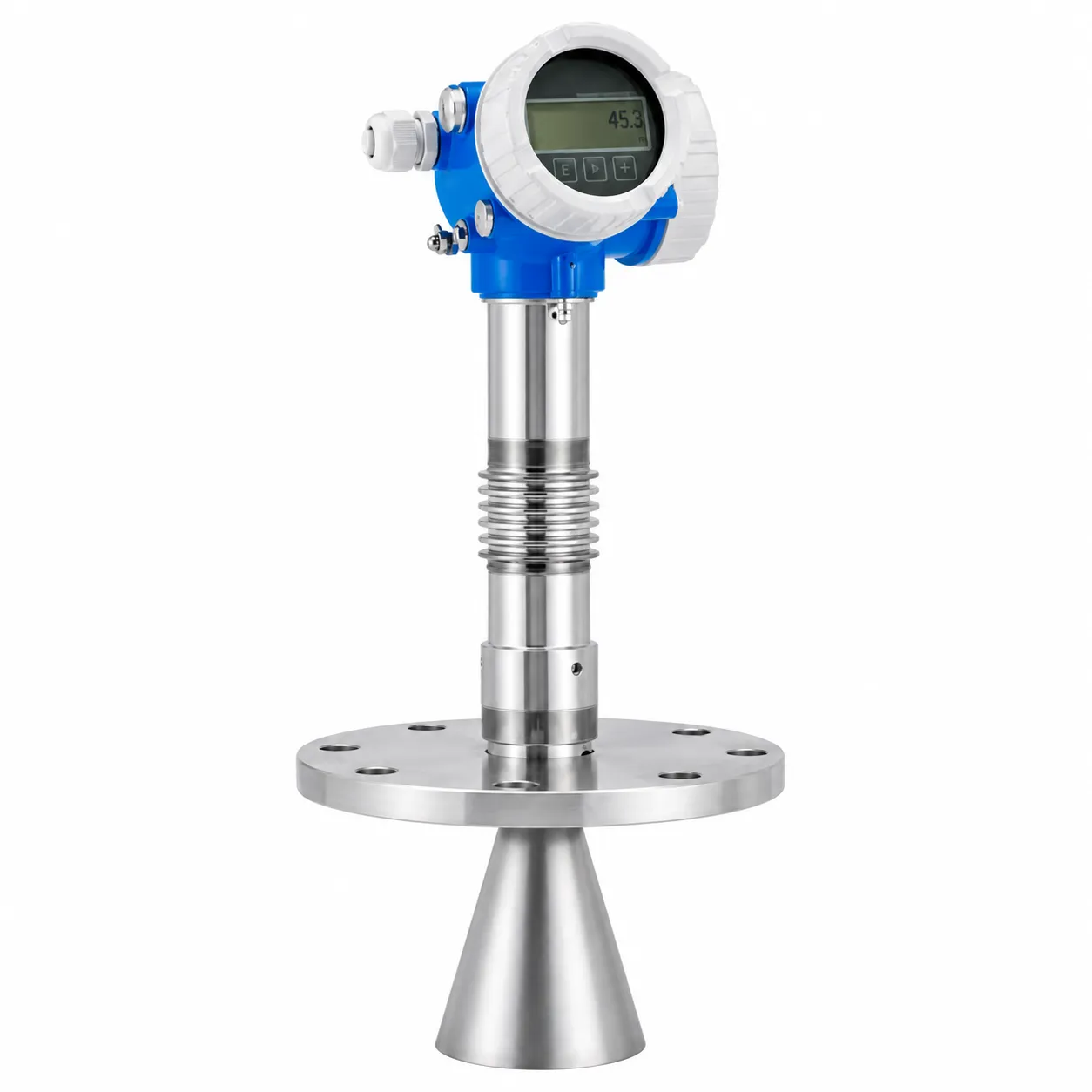

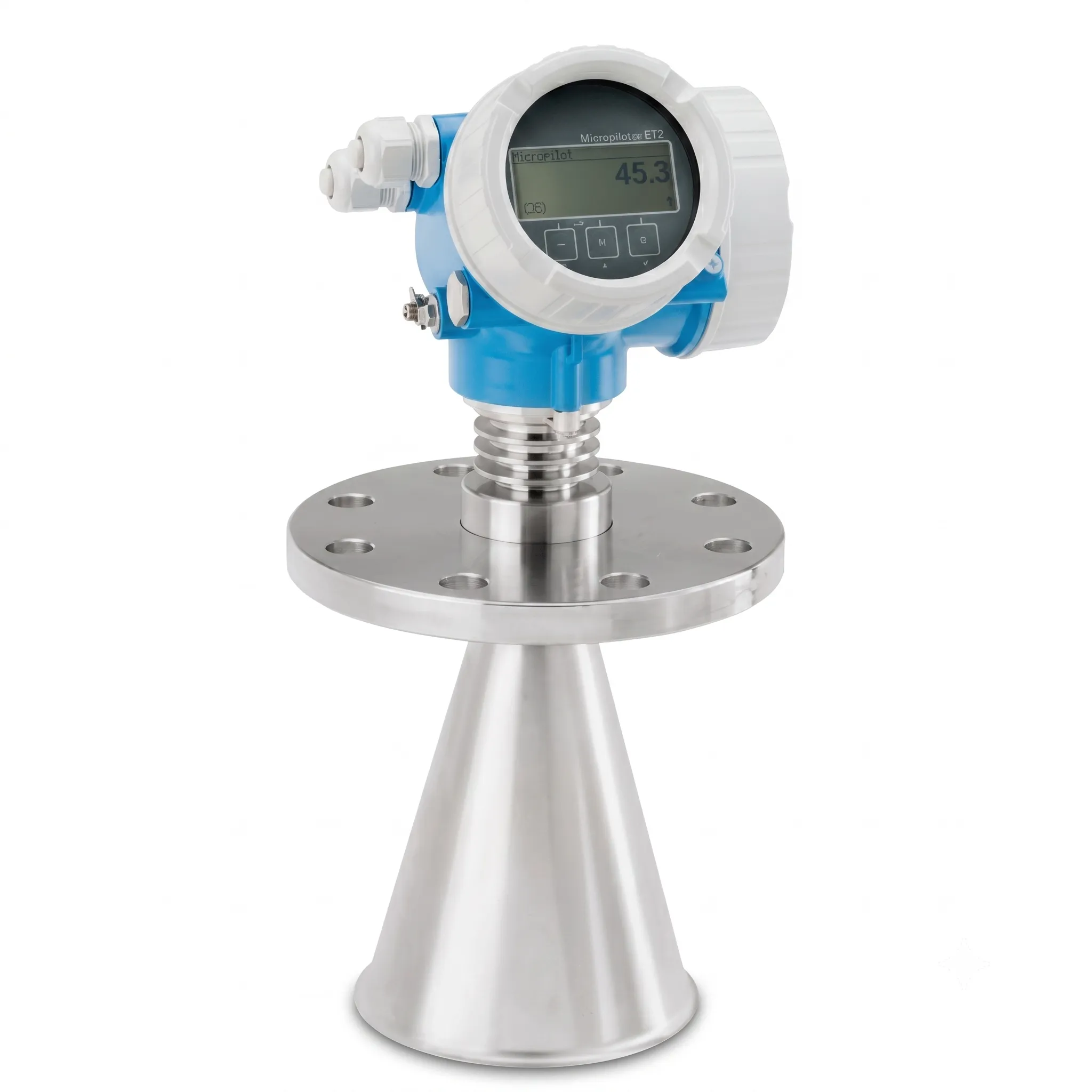

Micropilot FMR54 is prepared for the use in high temperature and high pressure applications and with the specially designed planar antenna it is particularly suited for stilling well applications. The FMR54 free space radar is used for continuous, non contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

好处

Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)

HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation

Reliable measurement even for changing product and process conditions

Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

World’s easiest proof test concept for SIL and WHG saves time and cost

备件及配件

	76 spare parts & accessories		订单代码
1	Housing filter 316L, GT18, 1 set	Filter	71115174
2	Housing filter Brass/Ni GT19/20, 1 set	Filter	71115175
3	Set housing securing clamps	Housing/housing accessories	71115176
4	Cover GT18 316L, HNBR	Cover	71110281
5	Cover GT18 316L, FVMQ	Cover	71383631
6	Cover GT18 316L, sight glass, HNBR	Cover	71110282
7	Cover GT18 316L, sight glass, FVMQ	Cover	71383666
8	Cover GT18 316L, terminal Ex d, HNBR	Cover	71110284
9	Cover GT18 316L, terminal Ex d, FVMQ	Cover	71383670
10	Cover GT18 316L, terminal Ex, HNBR	Cover	71110291
11	Cover GT18 316L, terminal Ex, FVMQ	Cover	71383668
12	Cover GT19 PBT, EPDM	Cover	71110293
13	Cover GT19 PBT, sight glass, EPDM	Cover	71110292
14	Cover GT19 PBT, Terminal Ex, EPDM	Cover	71110295
15	Cover GT20 Alu, sight glass, HNBR	Cover	71110297
16		Cover
17	Cover GT20 Alu, sight glass, FVMQ	Cover	71383675
18	Cover GT20 Alu, HNBR	Cover	71110299
19	Cover GT20 Alu, FVMQ	Cover	71383674
20	Cover GT18 316L, Terminal, OVP, HNBR	Cover	71185516
21	Cover GT18 316L, Terminal, OVP, FVMQ	Cover	71383671
22	Cover GT19 PBT, Terminal, OVP, EPDM	Cover	71185518
23	Cover GT20 Alu, Terminal Ex, HNBR	Cover	71110301
24	Cover GT20 Alu, Terminal Ex, FVMQ	Cover	71383679
25	Cover GT20 Alu, Terminal Ex d, HNBR	Cover	71110302
26	Cover GT20 Alu, Terminal Ex d, FVMQ	Cover	71383680
27	Cover GT20 Alu, Terminal, OVP, HNBR	Cover	71185517
28	Cover GT20 Alu, Terminal, OVP, FVMQ	Cover	71383682
29	Sealing set GT18/GT19/GT20, EPDM, HNBR	Sealing	71110303
30	Sealing set GT18/20, FVMQ	Sealing	71384797
31	Plug M12, IP66/68 NEMA4X/6P, ProToF	其他零件	71450381
32	Blind plug M20, Alu, Ex d	其他零件	71679714
33	Blind plug M20, 316L, Ex d	其他零件	71679712
34	Electronics Micropilot FMR5x	Electronic	XPF0020-
35	I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2	I/O module	71187812
36	I/O module 2-wire, 4-20mA, HART, Ex, V2	I/O module	71108594
37	I/O module, 2-wr.,4-20mA,HART,PFS,Ex,V1	I/O module	71108599
38	I/O mod. Level, 2-wr.2×4-20mA,HART,Ex,V2	I/O module	71207474
39	I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2	I/O module	71207473
40	I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2	I/O module	71207475
41	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	71164940
42	Terminal set 4-wire, I/O module	Terminals	71110279
43	Terminal set 2-wire, I/O module	Terminals	71110280
44	Display module, SD02, push buttons	其他零件	XPD0024-
45	Display module, SD03, Touch Control	其他零件	XPD0025-
46	Cable FHX50, FHX50B, 5m	其他零件	71206552
47	Cable FHX50, FHX50B, 10m	其他零件	71206554
48	Cable FHX50, FHX50B, 20m	其他零件	71206555
49	Cable FHX50, FHX50B, 30m	其他零件	71206556
50	Spare parts set – retrofit kit FHX50	其他零件	71248380
51	Transmitter electronics FHX50	其他零件	71197334
52	Horn FMR54, DN80/3″, 316L	Antenna module	71187625
53	Horn FMR54, DN80/3″, 316L, 3.1	Antenna module	71187639
54	Horn FMR54, DN80/3″, 316L, 3.1+ PMI test	Antenna module	71273165
55	Horn FMR54, DN100/4″, 316L	Antenna module	71187628
56	Horn FMR54, DN100/4″, 316L, 3.1	Antenna module	71187641
57	Horn FMR54, DN100/4″, 316L, 3.1+PMI test	Antenna module	71273164
58	Horn FMR54, DN150/6″, 316L	Antenna module	71187631
59	Horn FMR54, DN150/6″, 316L, 3.1	Antenna module	71187643
60	Horn FMR54, DN150/6″,316L, 3.1+ PMI test	Antenna module	71273168
61	Horn FMR54, DN200/8″, 316L	Antenna module	71187633
62	Horn FMR54, DN200/8″, 316L, 3.1	Antenna module	71187648
63	Horn FMR54, DN200/8″,316L, 3.1+ PMI test	Antenna module	71273171
64	Horn FMR54, DN250/10″, 316L	Antenna module	71187636
65	Horn FMR54, DN250/10″, 316L, 3.1	Antenna module	71187650
66	Horn FMR54, DN250/10″,316L, 3.1+PMI test	Antenna module	71273173
67	备用RFID标签	其他零件	XPRFID-
68	Overvoltage protection (OVP10),1-Channel		71128617
69	Overvoltage protection (OVP20),2-Channel		71128619
70	Weather prot. cover GT18/GT19/GT20, 316L		71162242
71	Bluetooth module (BT10)		71377355
