Radiometric Level/density measurement Source Container FQG60 | Endress Hauser E+H

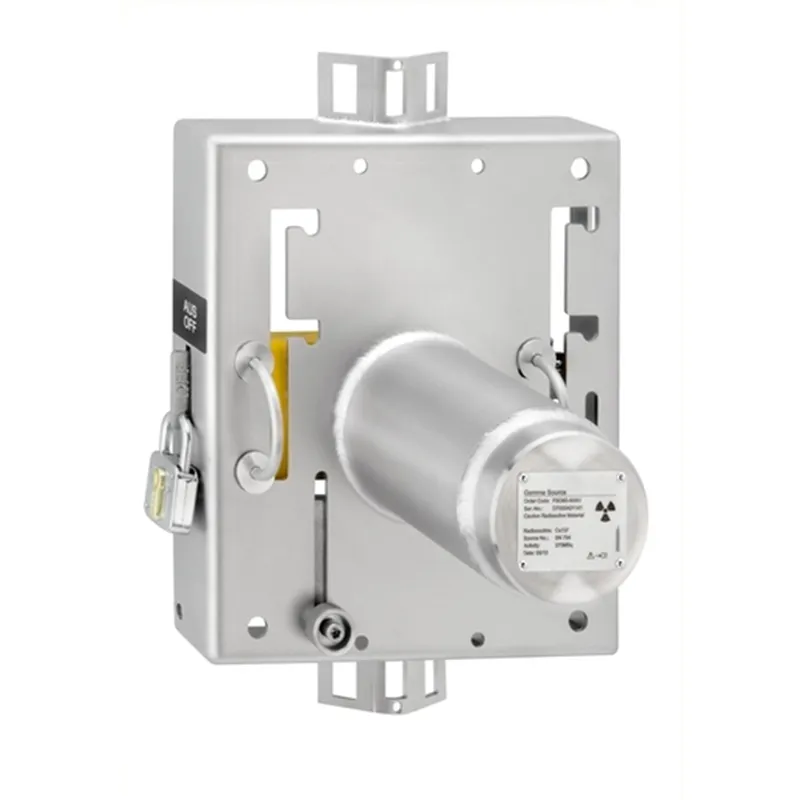

Radiation source container with radiation source insert with manual switch-on and switch-off

一目了然的规格

Process temperature Any
Process pressure / max. overpressure limit Any
Main wetted parts Non-contact

应用领域

The FQG60 source container is designed to hold the radioactive source during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.

好处

High safety level thanks to highest classification for the source supplied (DIN 25426/ISO 2919, typically classification C66646) and safe and easy source replacement

Reliable measurement due to small-size, lightweight container which provides optimized screening

Compact, easy-to-mount device with the possibility of various angles of emission for optimum adaptation to the application

Manual switching on/off and padlock to fix switching positions (on/ off), or snap hook to fix switching position; on-switch status easily identified

Integrated mounting device for density measurement on pipes
Optional: Calibration plate for quick and easy density recalibration

备件及配件

	描述	类别	Drawing No.	订单代码
1	Set of nameplate FQG6x	其他零件		71099421
2	Padlock FQG6x	其他零件	22	71301302
3	Snap hook, retaining element FQG60	其他零件	23	71130944
4	Label “caution radiation” _SS			916497-0000
