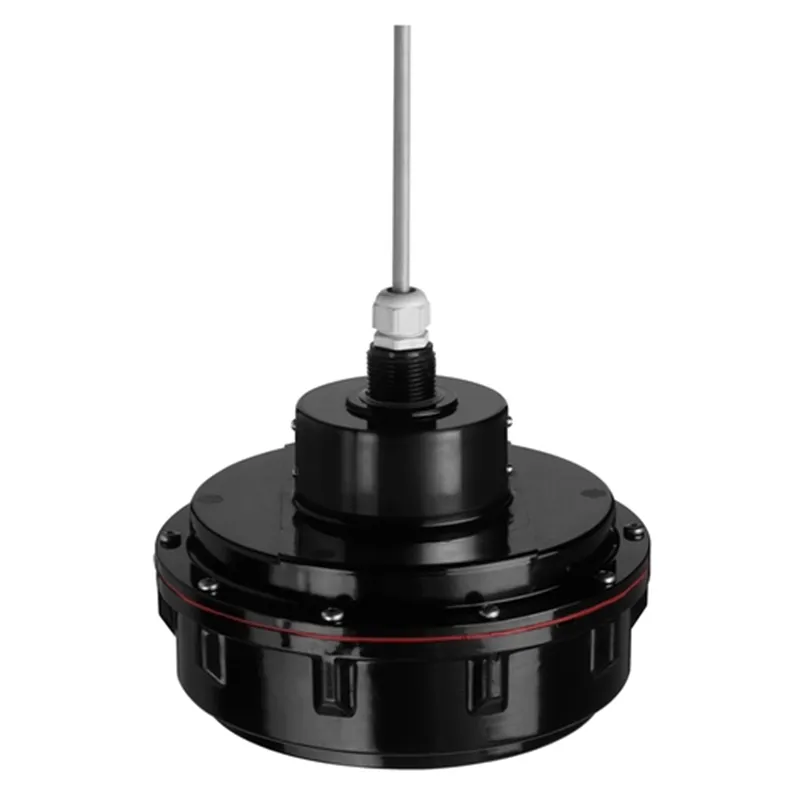

Ultrasonic measurement Time-of-Flight Prosonic FDU95 | Endress Hauser E+H

Ultrasonic sensor for level measurement for connection to FMU9x (measuring range up to 45m)

一目了然的规格

Accuracy +/- 2mm + 0.17% of measured distance
Process temperature -40 °C … 80 °C or 150 °C (-40 °F … 176 °F or 302 °F)

Process pressure / max. overpressure limit 0.7 bar…1.5 bar abs (10 psi…22 psi)

Max. measurement distance 45 m (148 ft)
Main wetted parts UP (unsaturated polyester)

应用领域

The FDU95 ultrasonic sensor for continuous, non contact and maintenance-free level measurement of powdery to coarse bulk materials. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in solids 45m (148ft).

好处

Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present

Suited for rough ambient conditions thanks to separate installation from the transmitter (up to 300m)

Reduced build-up formation because of the self-cleaning effect
Integrated automatic sensor detection for transmitters FMU90/ FMU95 for simple commissioning

Weather resistant and flood-proof (IP 68)
Non-contact measurement method minimizes service requirements
International Dust-Ex and Gas-Ex certificates available

备件及配件

	描述	类别	Drawing No.	订单代码
1	Sensor support 500mm, 316L			71452315
2	Sensor support 1000mm, 316L, US-sensor			71452316
3	Mounting bracket Prosonic S, Micropilot			71093130
4	Bracket 700mm, 316L			71452327
5	Bracket 1400mm, 316L			71452326
6	Wall bracket for sensor support, 316L			71452323
7	Extension cable FDU91F/93/95, PVC			71027743
8	Extension cable FDU95/FDU96, silicone HT			71027745
9	Screw in flange FAX50			FAX50-
10	Alignment device TTP FAU40			FAU40-
