Vibronic Point level detection Soliphant FTM52 | Endress Hauser E+H

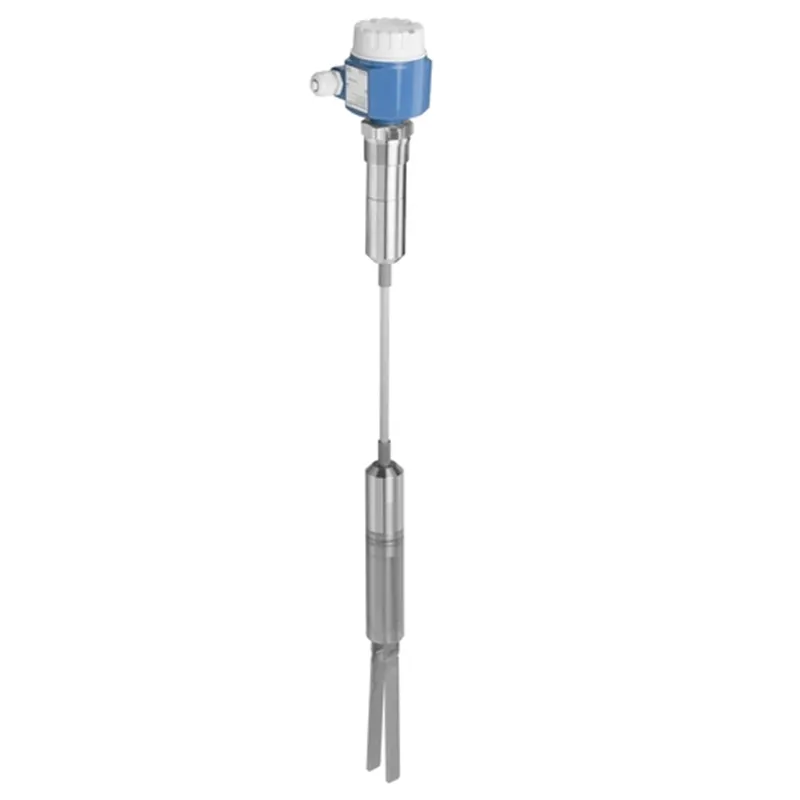

Robust point level switch with rope extension for fine-grained bulk solids also for hazardous areas

一目了然的规格

Process temperature -40°C …80 °C (-40°F … 170°F)
Process pressure / max. overpressure limit Vacuum … 2 bar (Vacuum … 30 psi) max. 6 bar / 80 psi for EExd/EExde

Min. density of medium Standard fork: 10 g/l Short fork: 50 g/l

应用领域

Soliphant FTM52 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.

好处

SIL2 in accordance with IEC 61508
No mechanically moved parts, free of maintenance
Measurement not affected by build-up or external vibration
Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system

Build-up and abrasion display selectable, density setting and switching delay selectable

Choice of coated or polished sensor
Build-up and corrosion detection

备件及配件

	描述	类别	Drawing No.	订单代码
1	O-ring 26.57×3.53 EPDM, 5 pieces	Sealing	11	52004276
2	Adapter set housing/electronics FTM5x	Fixing	12	52028204
3	Adapter set cable entry NPT1/2	Adapter housing/cable entry	15	52004133
4	Adapter set cable gland M20	Adapter housing/cable entry	15	52004134
5	Adapter set cable entry G1/2	Adapter housing/cable entry	15	52004135
6	Cover F16 transparent, gasket	Cover	20	52025790
7	O-ring 71.0×3.55 EPDM, 5 pieces	Sealing	21	52004137
8	Cover F13 Ex Alu, gasket	Cover	20	52002698
9	Cover F13/17/18 Alu,sight glass,gasket	Cover	20	52027693
10	Cover F17 Alu, gasket	Cover	20	52002699
11	Cover F15 316L, gasket	Cover	20	52027000
12	Cover F15 316L, claw, gasket	Cover	20	52027708
13	Cover F15 316L, sight glass, gasket	Cover	20	52027002
14	Cover F15 316L,claw,sight glass,gasket	Cover	20	52027709
15	Cover F27 316L, gasket FVQM	Cover	20	71185025
16	Cover T13 Alu, gasket EPDM	Cover	20	52006903
17	Cover T13 Alu,Ex d,high,sight glass,gas.	Cover	20	52028271
18	Sealing set EPDM,cover F13/17/18/27,5pc	Sealing	21	52004277
19	Gasket 67.5×2.9×1.5 VMQ/PTFE, 5 pieces	Sealing	21	52028179
20	Sealing set EPDM 73.0×3.0, 10 pieces	Sealing	21	52008495
21	Cable entry G1/2, gasket, FTM5x	Adapter housing/cable entry	15	52028180
22	Cable entry NPT1/2, gasket, FTM5x	Adapter housing/cable entry	15	52028181
23	Cable gland M20, gasket, FTM5x	Adapter housing/cable entry	15	52028182
24	Cable gland M20 metal, gasket, FTM5x	Adapter housing/cable entry	15	52028183
25	Cover T13 “Terminal” Alu, gasket EPDM	Cover	25	52007103
26	M12 plug, 316L, APL, housing side	其他零件		71435139
27	Electronics FEM51, AC	Electronic	30	52026497
28	Electronics FEM52, DC	Electronic	30	52026498
29	Electronics FEM54, DPDT	Electronic	30	52026499
30	Electronics FEM55, 8/16mA	Electronic	30	52026500
31	Electronics FEM57, PFM	Electronic	30	52026501
32	Electronics FEM58, NAMUR	Electronic	30	52026502
33	Sensor FTM52, process connection	Sensoric	50	FTM52X-
34	Mounting set (2″/pipe 38_V4A	其他零件		919806-1000
35	Cable, F15/16/17 sep.	其他零件		71035208
36	Cable, amoured, F15/16/17 sep.	其他零件		71035209
37	Cable, F13/T13 sep.	其他零件		71035210
38	Cable, amoured, F13/T13 sep.	其他零件		71035211
39	Cable Exd/Exde/XP, F13/T13 sep.	其他零件		71035212
40	Cable amoured Exd/Exde/XP, F13/T13 sep.	其他零件		71035213
41	Diagnostics plug FTL5x,FTL7x,FTL8x,FTM5x	其他零件		71036514
42	Removing tool FTM50/FTM51/FTM52			71026213
43	Rope shortening kit FTM52			52024632
44	Weather protection cover F13/F17/F18/F27			71040497
45	Protection cover F16 housing			71127760
