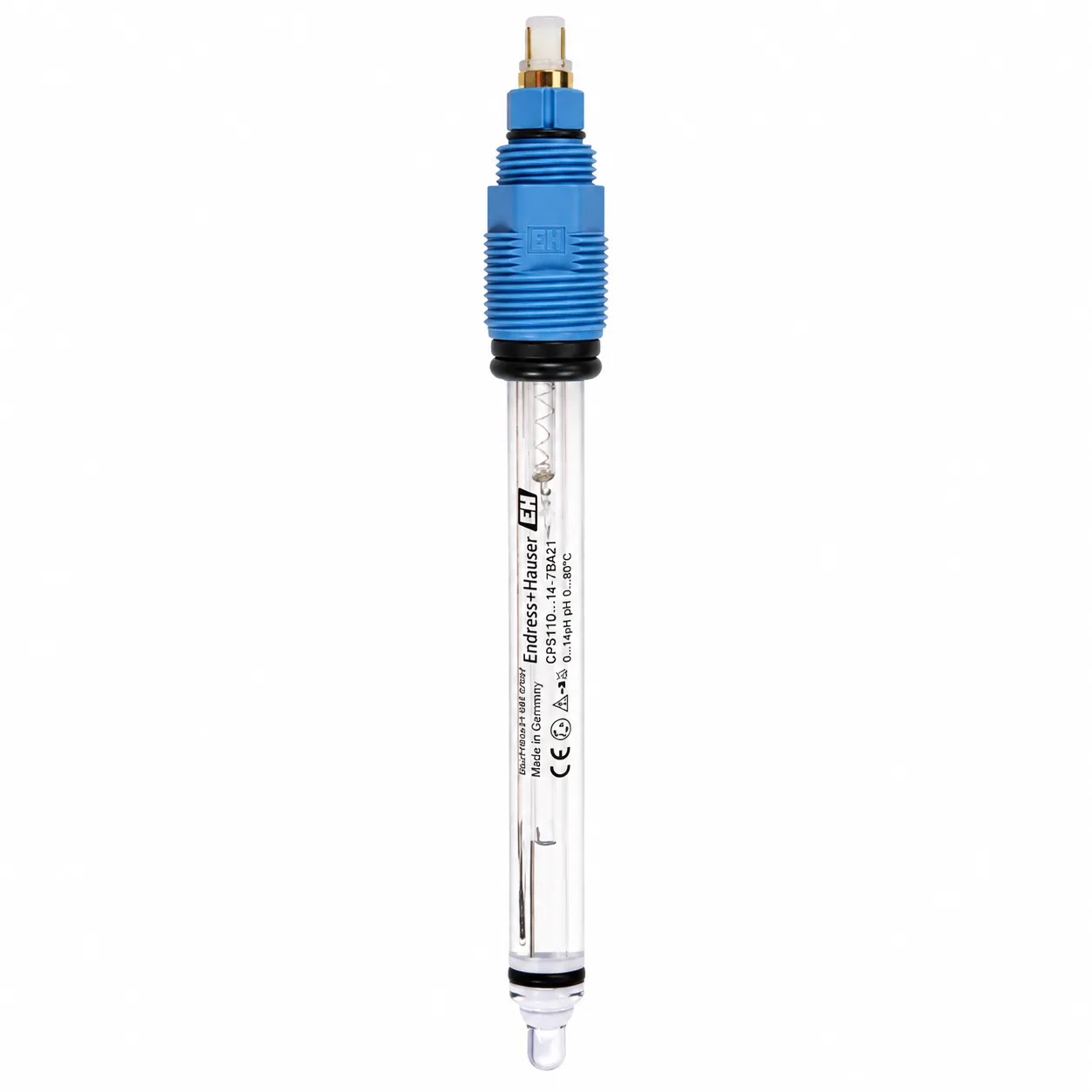

Analog pH sensor Orbisint CPS11 | Endress Hauser E+H

Glass electrode for standard applications

Specs at a glance

  • Measuring range pH 0-14
  • Process temperature max. 135°C (274°F)
  • Process pressure max. 16 bar (230 psi)

Field of application

Orbisint CPS11 is the all-rounder for pH measurement in process and environmental applications. It performs reliably and accurately even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the sensor offers you best value for money.

Benefits

  • Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm
  • Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 16 bar (232 psi)
  • Optional salt ring for low conductivity applications such as boiler feed water and water for injection

Spare parts & accessories

DescriptionCategoryOrder Code
1Kit CPSxx protective capsfurther parts71538217
2KCL-Electrolyte solution CPY4CPY4-
3Technical buffer solution CPY20CPY20-
