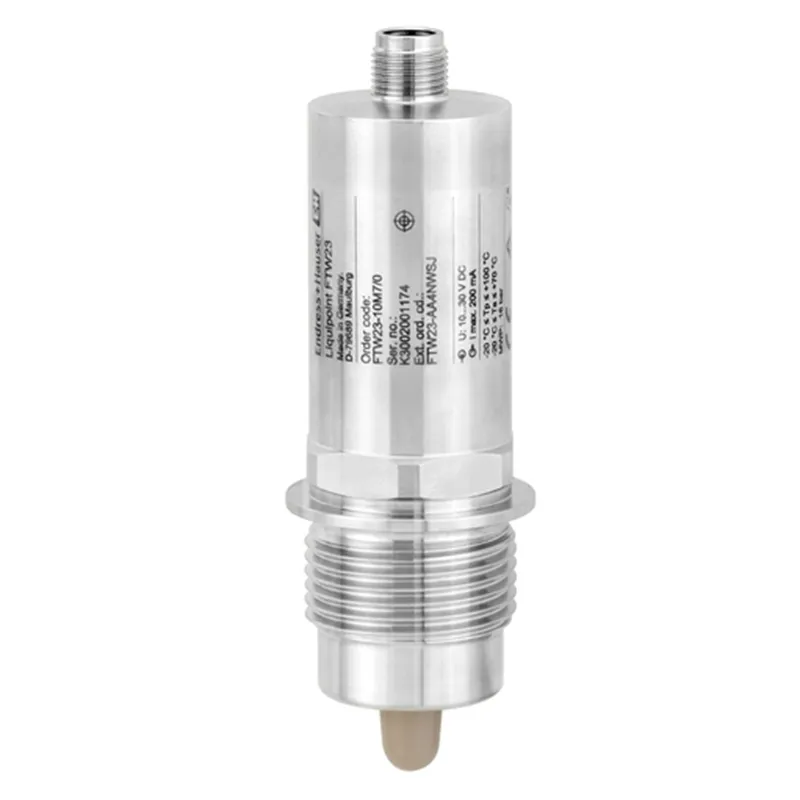

Cost effective point level switch for water based liquids
The Liquipoint FTW23 is developed and built for the food industry and meets all international hygiene requirements. The device also fits perfectly for industrial applications in all industries. It is intended for use in applications in liquid media without build-up. The IOLink capability allows easy parameter setting.
| Description | Category | Drawing No. | Order Code | |
| 1 | Sealing ring G1/2, 21×26, FA, 5 pcs. | further parts | 57 | 71194296 |
| 2 | Sealing ring G3/4, 27×32, FA, 5 pcs. | further parts | 57 | 71185027 |
| 3 | Sealing ring G1, 33×39 FA, 5 pcs. | further parts | 57 | 52014048 |
| 4 | Sealing ring 15,08×2,62 EPDM, 5 pcs | further parts | 71529759 | |
| 5 | O-ring 14.9×2.7 VMQ, FDA, 5 pcs. | further parts | 52021717 | |
| 6 | O-ring 14.9×2.7 VMQ, FDA, USP, 3 pcs. | further parts | 71086117 | |
| 7 | O-ring 28.17×3.53 VMQ, FDA, 5 pcs. | further parts | 52014472 | |
| 8 | O-ring 28.17×3.53 VMQ, FDA, USP, 3 pcs. | further parts | 71086102 | |
| 9 | O-ring 28.17×3.53 EPDM, FDA, USP, 3 pcs. | further parts | 71140668 | |
| 10 | Profile gasket 29x36x3.7, FDA, 5 pcs. | further parts | 52014424 | |
| 11 | M12-female plug connector, cable side | 52006263 | ||
| 12 | M12-female plug connec., 90deg, 5m cable | 52024216 | ||
| 13 | Cable M12-plug to 90o M12-fem.plug,LED | 52018763 | ||
| 14 | M12-female plug connec., 100deg,5m cable | 52010285 | ||
| 15 | Socket wrench 32AF | 52010156 | ||
| 16 | Test magnet | 71267011 | ||
| 17 | Weld-in adapter G3/4, d=29, 316L | 71258357 | ||
| 18 | Weld-in adapter G3/4, d=29, 316L, 3.1 | 52028295 | ||
| 19 | Weld-in adapter G3/4 d=50, 316L | 71258355 | ||
| 20 | Weld-in adapter G3/4 d=50, 316L, 3.1 | 52018765 | ||
| 21 | Blind plug for weld-in adap. G3/4, 316L | 71675412 | ||
| 22 | Welding dummy for weld-in ad. G3/4,brass | 71675415 | ||
| 23 | O-Ring 15,08×2,62 FKM, 5 pcs | 71675404 | ||
| 24 | O-ring 15,08×2,62 EPDM, 5 pcs | 71675405 | ||
| 25 | Weld-in adapter G1, d=53, 316L | 71258358 | ||
| 26 | Weld-in adapter G1, d=53, 316L, 3.1 | 71093129 | ||
| 27 | Weld-in adapter G1, d=60, 316L | 52001051 | ||
| 28 | Weld-in adapter G1, d=60, 316L, 3.1 | 52011896 | ||
| 29 | Blind plug for weld-in adap.G1, 316L.3.1 | 71675413 | ||
| 30 | Welding dummy for weld-in adap. G1,brass | 71675410 | ||
| 31 | O-Ring 28,17×3,53 FKM, 5 pcs | 71675402 | ||
| 32 | Weld-in adapter M24 D65, 316L | 71041381 | ||
| 33 | Weld-in adapter M24 D65, 316L, 3.1 | 71041383 | ||
| 34 | Proc. adap. M24 Variv N DN50 PN40 316L | 52023997 | ||
| 35 | Proc.adap.M24 Variv N DN50 PN40 316L 3.1 | 52024004 | ||
| 36 | Process adap. M24 Variv F DN25 PN40 316L | 52023996 | ||
| 37 | Proc.adap.M24 Variv.F DN25 PN40 316L 3.1 | 52024003 | ||
| 38 | Process adapter M24 DIN11851 DN50, 316L | 52023998 | ||
| 39 | Process adap. M24 DIN11851 DN50,316L,3.1 | 52024005 | ||
| 40 | Process adapter M24 SMS 1-1/2″, 316L | 52026997 | ||
| 41 | Process adapter M24 SMS 1-1/2″,316L, 3.1 | 52026999 | ||
| 42 | Process adap. M24 Clamp 1…1 1/2″, 316L | 52023994 | ||
| 43 | Process adapter M24 Clamp 2″, 316L | 52023995 | ||
| 44 | Process adapter M24 DIN11851 DN40, 316L | 52023999 | ||
| 45 | Process adapter M24 APV-Inline, 316L | 52024000 | ||
| 46 | Process adap. M24 Clamp 1 1/2, 316L, 3.1 | 52024001 | ||
| 47 | Process adapter M24 Clamp 2″, 316L, 3.1 | 52024002 | ||
| 48 | Process adap. M24 DIN11851 DN40,316L,3.1 | 52024006 | ||
| 49 | Process adapter M24 APV-Inline,316L, 3.1 | 52024007 | ||
| 50 | Pipe assembly DN25, flush mount | 71477801 | ||
| 51 | Pipe assembly DN32, flush mount | 71477803 | ||
| 52 | Pipe assembly DN40, flush mount | 71477807 | ||
| 53 | Pipe assembly DN50, flush mount | 71477808 | ||
| 54 | Pipe assembly Clamp DN25, flush mount | 71477812 | ||
| 55 | Pipe assembly Clamp DN32, flush mount | 71477813 | ||
| 56 | Pipe assembly Clamp DN40, flush mount | 71477816 | ||
| 57 | Pipe assembly Clamp DN50, flush mount | 71477817 | ||
| 58 | EPDM O-rings process adapter M24 | 52024267 |
