Capacitance Point level detection Solicap FTI55 | Endress Hauser E+H

Point level detection for fine-grained to coarse-grained bulk solids

Request a Quote

Flow measurement

أجهزة قياس المستوى السائل/الصلب

أجهزة تحليل السوائل

أجهزة قياس درجة الحرارة

أجهزة قياس الضغط

System products

قطع غيار الأتمتة الصناعية

Specs at a glance

Process temperature -50°C … 180°C (-58°F … 356°F)
Process pressure / max. overpressure limit Vacuum … 25 bar (Vacuum … 362 psi)

Field of application

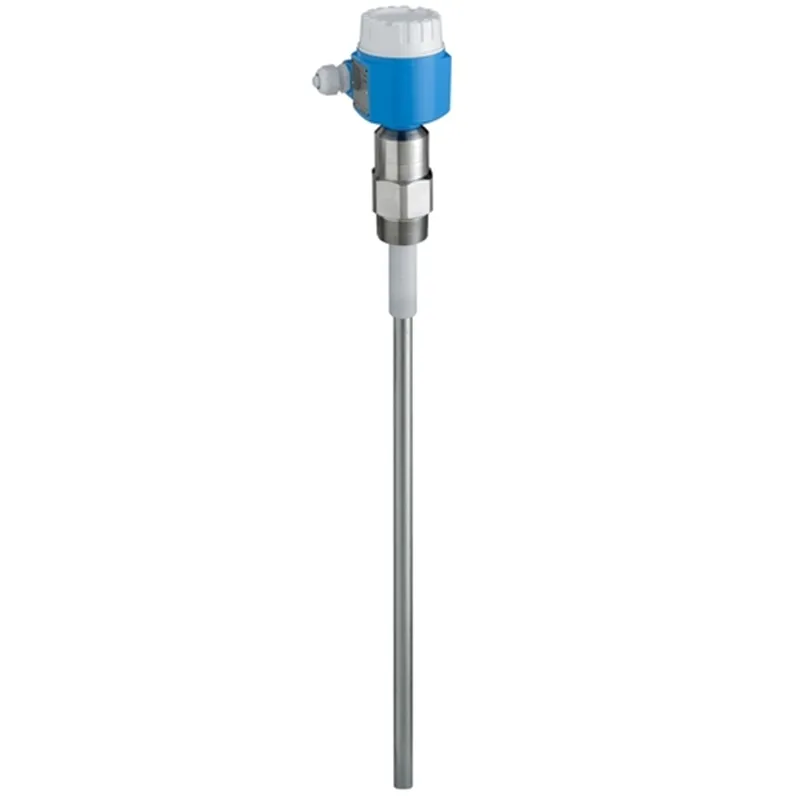

Solicap FTI55 is a fully/partly insulated and robust rod probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability due to its active build-up compensation and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used to provide accurate measurements in applications with very high lateral loads up to 300Nm.

Benefits

Highest safety and reliability due to robust design for demanding process conditions

Cost savings thanks to easy and fast commissioning as calibration is performed at the press of a button

Universal application thanks to wide range of certificates and approvals
Two-stage overvoltage protection against static discharges from the silo

Active build-up compensation for bulk solids with caking tendency (under development)

Increased safety due to permanent automatic monitoring of electronics
Reduction in storage costs thanks to easy-to-shorten rod model (for partial insulation) and rope model (for partial and full insulation)

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Cover F16 grey, PBTP, gasket	Cover	20	52025606
2	Cover F13 Ex Alu, gasket	Cover	20	52002698
3	Cover F17 Alu, gasket	Cover	20	52002699
4	Cover F15 316L, gasket	Cover	20	52027000
5	Cover T13 Alu, gasket EPDM	Cover	20	52006903
6	Cover T13 “Terminal” Alu, gasket EPDM	Cover	25	52007103
7	O-ring 71.0×3.55 EPDM, 5 pieces	Sealing	21	52004137
8	Sealing set EPDM,cover F13/17/18/27,5pc	Sealing	21	52004277
9	Gasket 67.5×2.9×1.5 VMQ/PTFE, 5 pieces	Sealing	21	52028179
10	Sealing set EPDM 73.0×3.0, 10 pieces	Sealing	21	52008495
11	Cable F15/F16/F17 separate, FTIxx	further parts		71084478
12	Electronics FEI51, 19-253VAC	Electronic	30	71042887
13	Electronics FEI52, PNP, 10-55VDC	Electronic	30	71025819
14	Electronics FEI53, 3-12V, signal	Electronic	30	71025820
15	Electronics FEI54, relay DPDT, AC/DC	Electronic	30	71025814
16	Electronics FEI55, 8/16mA, 11-36VDC	Electronic	30	71025815
17	Electronics FEI57S, 2-wire PFM	Electronic	30	71025816
18	Electronics FEI58 Namur	Electronic	30	71100895
19	Mounting set (2″/pipe 38_V4A	further parts		919806-1000
20	Sealing ring G1, 33×39 FA, 5 pcs.	further parts	57	52014048
21	Sealing ring G1-1/2, 48×55 FA, 5 pcs.	further parts	57	52014047
22	Weather protection cover F13/F17/F18/F27			71040497
23	Protection cover F16 housing			71127760
24	Screw in flange FAX50			FAX50-
