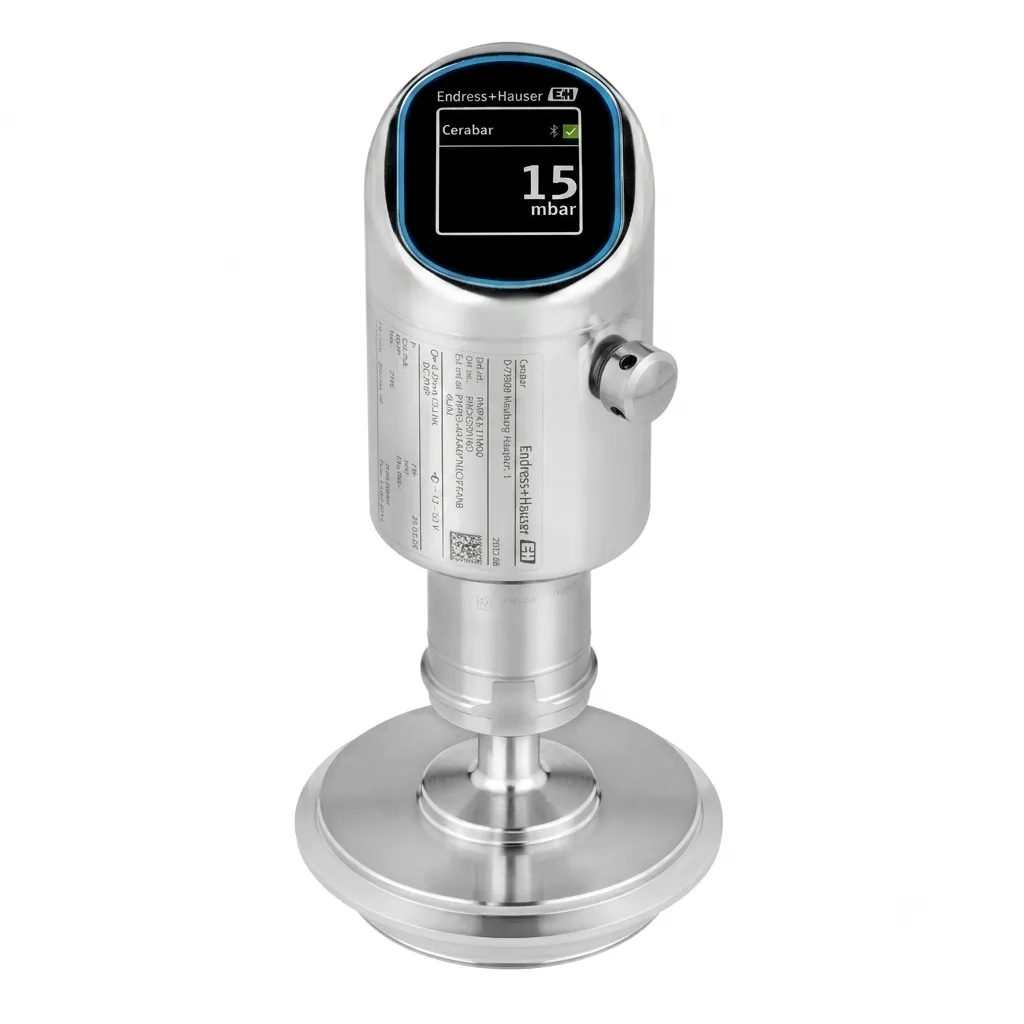

Cerabar PMP43 – hygienic pressure transmitter | Endress Hauser E+H

Particularly compact, highly reliable and the perfect fit for demanding hygienic applications

Request a Quote

Flow measurement

أجهزة قياس المستوى السائل/الصلب

أجهزة تحليل السوائل

أجهزة قياس درجة الحرارة

أجهزة قياس الضغط

System products

قطع غيار الأتمتة الصناعية

Specs at a glance

Accuracy Standard 0.1% Platinum 0.075%
Process temperature -40°C…+130°C (-40°F…+266°F) -20°C…

+200°C (-4°F…+392°F)

Pressure measuring range 400 mbar…100 bar (6 psi…1450 psi)
Material process membrane 316L
Measuring cell 400 mbar…100 bar (6 psi…1450 psi)

Field of application

The Cerabar PMP43 is a pressure transmitter and part of the Compact Line. The product line is especially developed for hygienic applications and combines a compact design with full performance. The proven technology is suitable for the measurement and monitoring of absolute and gauge pressure in liquids and gases. Thanks to the compact sensor design and small process connections, the device is flexible in scale and can be installed in tight space conditions.

Benefits

Outstanding ease of use due to easy setup and operation with guided wizards and intuitive touch display

Improved process and product safety through configuration integrity – a checksum algorithm (CRC) ensures that safety relevant parameters remain unchanged

Increased productivity thanks to traceable and documented on demand verification without process interruption and permanent monitoring of process anomalies or blocked impulse lines with Heartbeat Technology

360-degree hygienic design and IP69 ingress protection class enable efficient cleaning and avoid contamination

Documented compliance through certified hygienic design as well as proven material conformity and traceability

Spare parts & accessories

	Description	Category	Order Code
1	Profile gasket silicone, 5 pieces	Seals	52023572
2	Profile gasket EPDM, 5 pieces	Seals	71100719
3	EPDM O-ring, EHEDG, 5 pieces	Seals	71545801
4	EPDM O-ring + 316L backring, EHEDG, 1 piece	Seals	71431380
5	TAG-holder metal	Accessories	71655762
6	O-ring 28.17×3.53 VMQ, FDA, USP, 3 pcs.	Seals	71086102
7	O-ring 28.17×3.53 VMQ, FDA, 5 pcs.	Seals	52014472
8	O-ring 28.17×3.53 EPDM, FDA, USP, 3 pcs.	Seals	71140668
9	O-Ring 28,17×3,53 FKM, 5 pcs	Seals	71675402
10	Profile gasket 29x36x3.7, FDA, 5 pcs.	Seals	52014424
11	Profile gasket 29x36x3.7, FDA, USP, 5 pcs.	Seals	71075662
12	Spare IEC TAG	Accessories	XPSPEC-
13	M12-female plug connection, 90 deg, IP69	Connectors	71638253
14	M12-female plug connection, straight, IP69	Connectors	71638191
15	M12-female plug connection, 90 deg, 5m cable	Connectors	52024216
16	M12-female plug connection, 100deg, 5m cable	Connectors	52010285
17	Weld-in adapter G1/2, 316L	Adapters & Plugs	52002643
18	Weld-in adapter G1/2, 316L, 3.1	Adapters & Plugs	52010172
19	Weld-in adapter G1/2, 316L, A DIN 3852	Adapters & Plugs	71389241
20	Weld-in adapter G1/2, 316L, 3.1, A DIN3852	Adapters & Plugs	71389243
21	Weld-in dummy, adapter G1/2	Adapters & Plugs	52005082
22	Weld-in adapter G1, d=53, 316L	Adapters & Plugs	71258358
23	Weld-in adapter G1, d=53, 316L, 3.1	Adapters & Plugs	71093129
24	Weld-in adapter G1, d=60, 316L	Adapters & Plugs	52001051
25	Weld-in adapter G1, d=60, 316L, 3.1	Adapters & Plugs	52011896
26	Weld-in adapter G1, 316L	Adapters & Plugs	52005087
27	Weld-in adapter G1, 316L, 3.1	Adapters & Plugs	52010171
28	O-ring 28.17×3.53 EPDM, FDA, USP, 3 pcs.	Seals	71140668
29	Weld-in adapter G1, adjustable, 316L	Adapters & Plugs	52001221
30	Weld-in adapter G1, adjustable, 316L, 3.1	Adapters & Plugs	52011898
31	Weld-in dummy, adapter G1	Adapters & Plugs	52005272
32	Welding dummy for weld-in adap. G1, brass	Adapters & Plugs	71675410
33	Blind plug for weld-in adap. G1, 316L, 3.1	Adapters & Plugs	71675413
34	Weld-in dummy, adapter G1-1/2	Adapters & Plugs	52024471
35	Weld-in adapter UNI D65, 316L, 3.1	Adapters & Plugs	52010174
36	Weld-in adapter UNI D85, 316L, 3.1	Adapters & Plugs	52010173
37	Process adapter G1 > DIN11851 DN50	Adapters & Plugs	71722782
38	Process adapter G1 > SMS 1-1/2″	Adapters & Plugs	71722783
39	Process adapter G1 > SMS 2″	Adapters & Plugs	71722784
40	Process adapter G1 > Clamp 1-1/2″	Adapters & Plugs	71722785
41	Process adapter G1 > Varivent F DN25	Adapters & Plugs	71722786
42	Process adapter G1 > Varivent N DN50/40	Adapters & Plugs	71722787
43	Process adapter G1 > DIN11851 DN32	Adapters & Plugs	71722788
44	Process adapter G1 > DIN11851 DN40	Adapters & Plugs	71722789
45	Process adapter G1 > Clamp 2″	Adapters & Plugs	71722790
46	Process adapter G1 > NEUMO BioControl DN50	Adapters & Plugs	71722791
47	Process adapter G1 > NEUMO BioControl DN80	Adapters & Plugs	71722792
48	Welding dummy for weld-in ad. RD52, brass	Adapters & Plugs	71675411
49	Blind plug for weld-in ad. RD52, 316L, 3.1	Adapters & Plugs	71675414
