Specs at a glance

Field of application

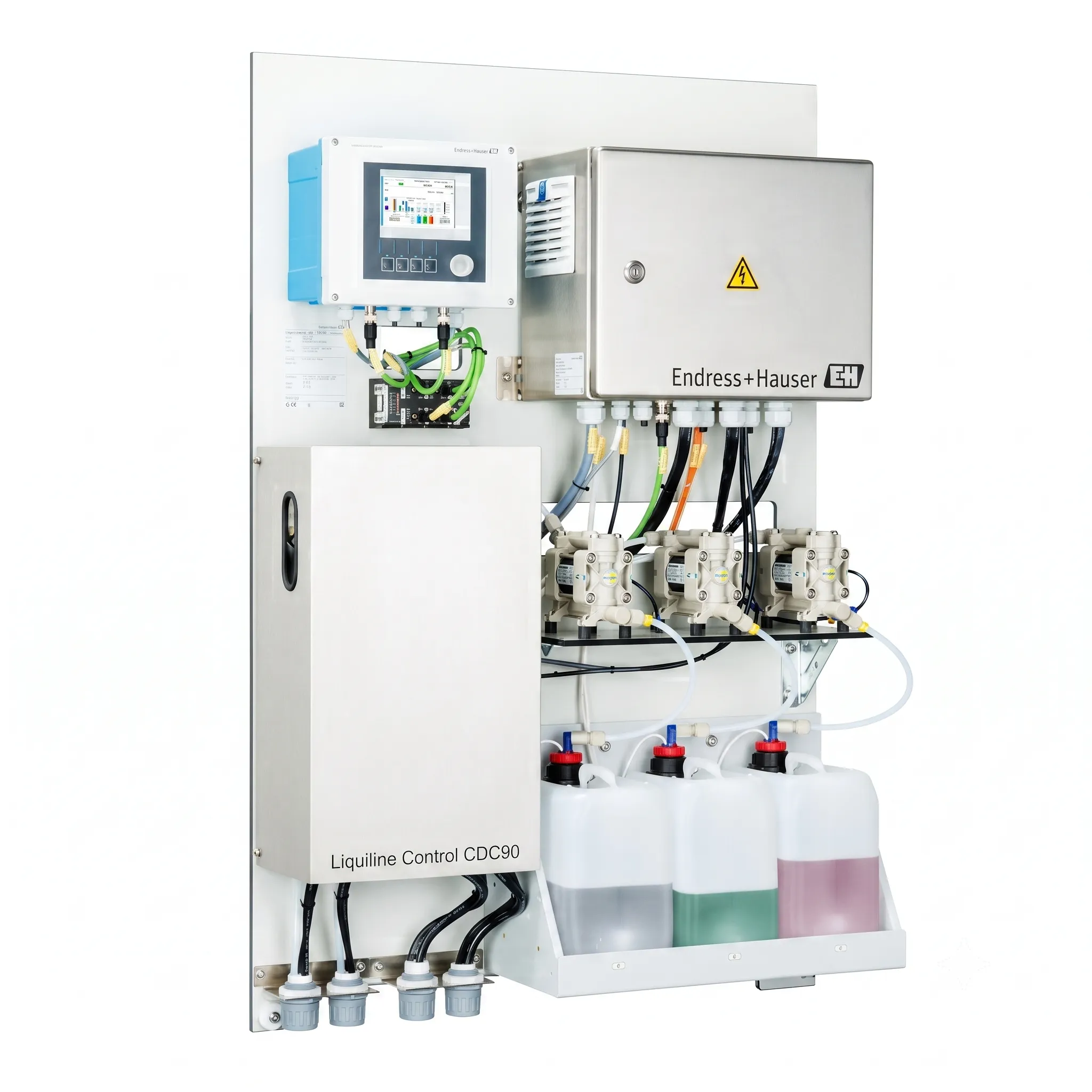

The Liquiline Control CDC90 plug & play system automates Memosens pH and ORP measuring points in many industries. It cleans, calibrates and adjusts up to two sensors automatically, reducing maintenance effort, improving working safety in harmful areas and helping to ensure the yield and quality of your product. It can easily be integrated into existing plant infrastructures and allows a convenient connection to any process control system.

Benefits

Increased occupational safety for your employees: Liquiline Control CDC90 reduces maintenance and servicing measures to a minimum – a decisive advantage, especially in difficult-to-access and hazardous environments.

With customizable cleaning and calibration cycles for up to two sensors, you can achieve high process reliability, product quality and optimum product yield. Blockages and soiling of the sensors are removed in good time.

Intelligent media distribution and dosing guarantees reproducible calibration results and ensures reliable measured values at all times.

Minimize operating costs by optimizing buffer and cleaning agent consumption at both measuring points. This is ensured by the sophisticated hydraulics of the Liquiline Control CDC90.

Seamless integration into your process control system with certified communication standards. Includes analog or digital signals as well as fieldbus: 0/4 … 20 mA, PROFIBUS DP, Modbus TCP, EtherNet/IP, PROFINET, and web server technology.

Spare parts & accessories

	Title	Category	Order Code
1	Kit CDC90 Cover without electronic	further parts	71361216
2	Kit CDC90 interface Board	further parts	71379312
3	Kit CDC90 PROFINET cable M12 – RJ45	further parts	71379315
4	Kit CDC90 Gateway module Profibus	further parts	71379318
5	Kit CDC90 Gateway module Profinet	further parts	71379319
6	Kit CDC90 Gateway EtherNet/IP	further parts	71518246
7	Kit CDC90 Ethernet cable M12-RJ45 90掳	further parts	71518244
8	Kit CDC90 USB Stick 64 GB	further parts	71518248
9	Kit CDC90 Cable glands control unit	further parts	71518249
10	Kit CDC90 air filter	further parts	71361218
11	Kit CDC90 wall holder V4A	further parts	71361219
12	Kit CDC90 wall holder steel coated	further parts	71379320
13	Kit CDC90 valveblock 8 valves	further parts	71361221
14	Kit CDC90 valveblock 16 valves	further parts	71361222
15	Kit CDC90 valve module 2x (NC)	further parts	71361223
16	Kit CDC90 valve modul 2x (NO)	further parts	71361225
17	Kit CDC90 Valve module 5/2-way	further parts	71481481
18	Kit CDC90 Pressure monitor pneumatic	further parts	71361230
19	Kit CDC90 remote IO	further parts	71361232
20	Kit CDC90 fuse 6A	further parts	71361233
21	Kit CDC90 power supply	further parts	71361234
22	Kit Sensor output interface	further parts	71361237
23	Kit CDC90 Cable glands pneu control unit	further parts	71518250
24	Kit CDC90 membrane pump	further parts	71361240
25	Kit CDC90 canister with pump/fittings	further parts	71361241
26	Kit CDC90 Level switch	further parts	71481484
27	Kit CDC90 multihose air 5m	further parts	71361242
28	Kit CDC90 multihose air 10m	further parts	71361244
29	Kit CDC90 multihose medium 5m	further parts	71361247
30	Kit CDC90 multihose medium 10m	further parts	71361248
31	Kit CDC90 2 channel multihose 5m	further parts	71379323
32	Kit CDC90 2 channel multihose 10m	further parts	71379325
33	Kit CDC90 changeover valve PVDF/FKM	further parts	71379326
34	Kit CDC90 check valves PVDF/FKM	further parts	71361249
35	Kit CDC90 bracket rinsing bl. assembly	further parts	71361254
36	Kit CDC90 rinsing block 4x, PVDF/FKM	further parts	71361264
37	Kit CDC90 Water valve for rinsing block	further parts	71481482
38	Kit CDC90 fittings	further parts	71361228
39	Texts from BDIH missing (71537584)	further parts	71537584
40	Kit strainer element for water filter	further parts	71390990
41	Kit base module BASE-E	further parts	71141336
42	Kit: base module BASE2-E	further parts	71431302
43	Kit: module ETH	further parts	71272410
44	Kit: Connecting cable power supply	further parts	71155580
45	Kit: module 4AO	further parts	71135633
46	Kit: module 2AI	further parts	71135639
47	Kit: module DIO	further parts	71135638
48	Kit: power distribution terminals	further parts	71101461
49	Kit: Mounting plate	further parts	71101763
50	Kit: field housing lower part plastic	further parts	71101734
51	KitThreaded inserts M4 f.field device	further parts	71321820
52	Kit: mechanical inner housing parts	further parts	71101765
53	Kit: set cable glands M complete	further parts	71101768
54	Kit: Set cable glands NPT complete	further parts	71101770
55	Kit: Set cable glands G complete	further parts	71101771
56	Kit: 6x closing plugs for cable entry	further parts	71104942
57	Kit: 1x set of terminals basic module	further parts	71107452
58	Kit: 1x set of terminals module 4AO	further parts	71155582
59	Kit: 1x set of terminals module 2xAI,485	further parts	71155583
60	Kit: 1x set of terminals module DIO	further parts	71219784
61	Kit: Set 10x hinges for housingcover	further parts	71107454
62	Kit: set 5end and blind cover	further parts	71107455
63	Kit CA8x/CDC90 Wall tray reagents	—	71422095
64	Kit water filter	—	71390988
65	Kit pressure reducer with manometer	—	71390993
66	SD-Card, 1GB, Industrial Flash Drive	—	71110815
67	Kit: M12 external jack f. digital sensor	—	71107456
68	Kit: M12 external jack for Ethernet	—	71140893
