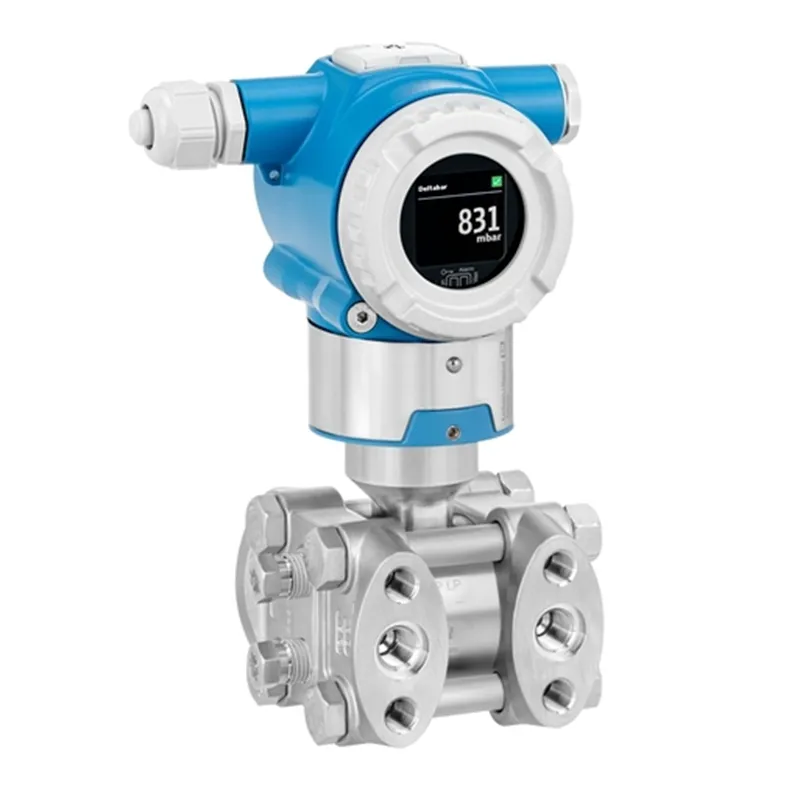

Deltabar PMD50 – differential pressure transmitter | Endress Hauser E+H

Transmitter with metal membrane for measuring differential pressure, level and flow in liquids and gases

Request a Quote

Flow measurement

أجهزة قياس المستوى السائل/الصلب

أجهزة تحليل السوائل

أجهزة قياس درجة الحرارة

أجهزة قياس الضغط

System products

قطع غيار الأتمتة الصناعية

Specs at a glance

Accuracy Standard: up to 0.065 % Platinum: up to 0.055 %
Process temperature -40°C…+110°C (-40°F…+230°F)
Material process membrane 316L, AlloyC, Gold
Measuring cell 100 mbar…40 bar (1.45 psi…580 psi)

Field of application

The Deltabar PMD50 is a differential pressure transmitter with metal membrane for measurement of liquids and gases. It is optimized for standard applications and offers intuitive operating functions.

Benefits

Software wizard enables fast and easy commissioning
Devices developed in accordance with IEC 61508
Flexible write protection via hardware and/or software wizard
Pre-assembled manifolds (pressure and leakage-tested) for faster installation

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Blind plug, M20, 316L, o-ring EPDM	further parts	14	71487198
2	Blind plug M20, Alu, Ex d	further parts	14	71679714
3	Blind plug, M20, Alu, o-ring EPDM	further parts	14	71487199
4	Blind plug M20, 316L, Ex d	further parts	14	71679712
5	Blind plug, NPT1/2, Alu	further parts	14	71487201
6	Blind plug NPT1/2, Alu, Ex d	further parts	14	71679718
7	Blind plug, NPT1/2, 316L	further parts	14	71487203
8	Blind plug NPT1/2, 316L, Ex d	further parts	14	71679715
9	Cable gland M20, plastic	further parts	15	71435135
10	Cable gland M20, brass nickel plated	further parts	15	71435136
11	Cable gland M20, 316L	further parts	15	71435137
12	Ground terminal Housing L+P	further parts	18	71474251
13	Cover Alu, closed	further parts	20,25	71652584
14	Cover Alu, sight glass	further parts	20	71652585
15	Cover Alu, closed, Ex d	further parts	20,25	71652587
16	Cover Alu, sight glass, Ex d	further parts	20	71652606
17	Cover red Alu, sight glass, Ex d	further parts	20	71652609
18	Cover 316L, sight glass, Ex d	further parts	20	71652610
19	Cover 316L, closed, Ex d	further parts	20,25	71652611
20	Cover red Alu, closed, Ex d	further parts	20,25	71652607
21	Cover sealing HNBR, 5 pieces	further parts	21	71652612
22	Electronics PMx50	further parts	30	71652583
23	Terminal unit TU300A, 4-20mA	further parts	35	71652576
24	Terminal unit TU301A, 4-20mA, OVP	further parts	35	71652580
25	O-ring 44.0×3.0 FKM 70, 4 pieces	further parts	57	52020733
26	O-ring 44.0×3.0 EPDM 70, 4 pieces	further parts	57	71343401
27	O-Ring , 44.2 x 3.0 FFKM 75, 2 pcs.	further parts	57	71498076
28	Locking screw (2x), NPT1/4, 316L	further parts	63	71485122
29	Spare RFID TAG	further parts		XPRFID-
30	Spare IEC TAG	further parts		XPSPEC-
31	Weather protect. cov., 316L, PMP50,PMD50	further parts		71697753
32	Mount.bracket 3/5 valve, stainless steel			71372499
33	Mounting bracket standard, 7/16-20 UNF			71381907
34	Manifold / Block&Bleed valve, DA63M			DA63M-
35	Cutting ring screw (Ermeto 12S)			71773235
