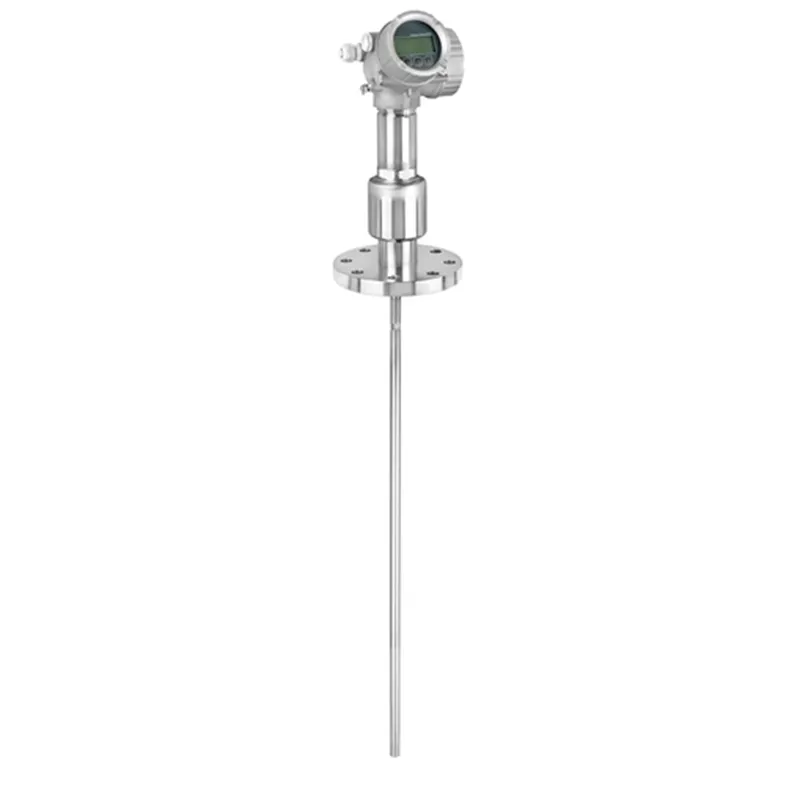

Guided radar measurement Time-of-Flight Levelflex FMP54 | Endress Hauser E+H

For high temperature and high pressure applications in the oil & gas, chemical and power industry

Request a Quote

Flow measurement

أجهزة قياس المستوى السائل/الصلب

أجهزة تحليل السوائل

أجهزة قياس درجة الحرارة

أجهزة قياس الضغط

System products

قطع غيار الأتمتة الصناعية

Specs at a glance

Accuracy Rod probe: +/- 2 mm (0.08 in) Rope probe <= 15 m (49 ft): +/- 2 mm (0.08 in) Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in) Coaxial probe: +/- 2 mm (0.08 in)

Process temperature XT: -196…+280 °C (-321…+536 °F) HT: -196…+450 °C (-321…+842 °F)

Process pressure / max. overpressure limit Vacuum…400 bar (Vacuum…5800 psi)

Max. measurement distance Rod: 10 m (33 ft) Min DK>1.6 Rope: 25 m…30 m (82 ft…98 ft) Min DK>1.6; 30 m…45 m (98 ft…148 ft) Min DK >1,9 Coaxial probe: 6 m (20 ft) Min DK>1.4

Main wetted parts Rod probe: 304, 316L, Alloy C, Ceramic Rope probe: 304, 316, 316L, Alloy C, Ceramic Coaxial probe: 304, 316L, Alloy C, Ceramic

Field of application

Levelflex FMP54 for continuous level measurement in liquids under extreme conditions. The process connection with its ceramic-graphite seal safeguards high temperature and high pressure applications as they occur in steam boilers and toxic media like ammonia. The gas tight feedthrough guarantees additional safety. Only the gas phase compensation of the FMP54 gives reliable results in case of gas and steam phases. Reliable measurement in case of moving surface and foam or in changing medias.

Benefits

Reliable measurement even for changing product and process conditions

HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

Highest reliability due to new Multi-Echo Tracking evaluation
Hardware and software developed according to IEC 61508 up to SIL3
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

World’s easiest proof test for SIL and WHG saves time and costs

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Housing filter 316L, GT18, 1 set	Filter	19	71115174
2	Housing filter Brass/Ni GT19/20, 1 set	Filter	19	71115175
3	Set housing securing clamps	Housing/housing accessories	17	71115176
4	Cover GT18 316L, HNBR	Cover	20	71110281
5	Cover GT18 316L, FVMQ	Cover	20	71383631
6	Cover GT18 316L, sight glass, HNBR	Cover	20	71110282
7	Cover GT18 316L, sight glass, FVMQ	Cover	20	71383666
8	Cover GT19 PBT, sight glass, EPDM	Cover	20	71110292
9	Cover GT19 PBT, EPDM	Cover	20	71110293
10	Cover GT20 Alu, sight glass, HNBR	Cover	20	71110297
11	Cover GT20 Alu, sight glass, FVMQ	Cover	20	71383675
12	Cover GT20 Alu, HNBR	Cover	20	71110299
13	Cover GT20 Alu, FVMQ	Cover	20	71383674
14	Cover GT18 316L, terminal Ex d, HNBR	Cover	25	71110284
15	Cover GT18 316L, terminal Ex d, FVMQ	Cover	25	71383670
16	Cover GT18 316L, terminal Ex, HNBR	Cover	25	71110291
17	Cover GT18 316L, terminal Ex, FVMQ	Cover	25	71383668
18	Cover GT18 316L, Terminal, OVP, HNBR	Cover	25	71185516
19	Cover GT18 316L, Terminal, OVP, FVMQ	Cover	25	71383671
20	Cover GT19 PBT, Terminal Ex, EPDM	Cover	25	71110295
21	Cover GT19 PBT, Terminal, OVP, EPDM	Cover	25	71185518
22	Cover GT20 Alu, Terminal Ex, HNBR	Cover	25	71110301
23	Cover GT20 Alu, Terminal Ex, FVMQ	Cover	25	71383679
24	Cover GT20 Alu, Terminal Ex d, HNBR	Cover	25	71110302
25	Cover GT20 Alu, Terminal Ex d, FVMQ	Cover	25	71383680
26	Cover GT20 Alu, Terminal, OVP, HNBR	Cover	25	71185517
27	Cover GT20 Alu, Terminal, OVP, FVMQ	Cover	25	71383682
28	Sealing set GT18/GT19/GT20, EPDM, HNBR	Sealing	65	71110303
29	Sealing set GT18/20, FVMQ	Sealing	65	71384797
30	Plug M12, IP66/68 NEMA4X/6P, ProToF	further parts		71450381
31	Electronics Levelflex FMP5x	Electronic	30	XPF0001-
32	Electronics Levelflex FMP5x	Electronic	30	XPF0001-
33	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
34	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
35	I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2	I/O module	34	71187812
36	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
37	I/O mod.Lev,2wr.4-20mA,HART,Ex,LP,V1	I/O module	34	71108591
38	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
39	I/O module 2-wire, 4-20mA, HART, Ex, V2	I/O module	34	71108594
40	I/O module 2-wire, 4-20mA, HART, Ex, V2	I/O module	34	71108594
41	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
42	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
43	I/O module Level, 2-wr.4-20mA,HART,Ex,V1	I/O module	34	71108595
44	I/O module, 2-wr.,4-20mA,HART,PFS,Ex,V1	I/O module	34	71108599
45	I/O mod.Level,2-wr2x4-20mA,HART,Ex,V1	I/O module	34	71108601
46	I/O mod. Level, 2-wr.2×4-20mA,HART,Ex,V2	I/O module	34	71207474
47	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
48	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
49	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
50	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
51	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
52	I/O module, 2-wire, PA, PFS, Ex, V1	I/O module	34	71108603
53	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
54	I/O module, 2-wire, PA/FF, PFS, Ex, V2	I/O module	34	71164940
55	I/O modLevel,4-wrDC,4-20mA,HART,Ex,V1	I/O module	34	71108604
56	I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2	I/O module	34	71207473
57	I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2	I/O module	34	71207475
58	Terminal set 2-wire, I/O module	Terminals	37	71110280
59	Terminal set 4-wire, I/O module	Terminals	37	71110279
60	Kit Display module,SD02,push buttons	Display	40	71109658
61	Kit Display module,SD03,Touch Control	Display	40	71162152
62	Display module, SD02, push buttons	Display	40	XPD0024-
63	Display module, SD03, Touch Control	Display	40	XPD0025-
64	Transmitter electronics FHX50	further parts		71197334
65	Spare parts set – retrofit kit FHX50	further parts		71248380
66	M12-female plug connector, VA	further parts		71296840
67	Cable FHX50, FHX50B, 5m	further parts		71206552
68	Cable FHX50, FHX50B, 10m	further parts		71206554
69	Cable FHX50, FHX50B, 20m	further parts		71206555
70	Cable FHX50, FHX50B, 30m	further parts		71206556
71	Kit Display module,SD02,push buttons	Display	40	71109658
72	Kit Display module,SD03,Touch Control	Display	40	71162152
73	Probe FMP54 w/o process connection	Sensoric	55	XPF0011-
74	Probe FMP54 w/o process connection	Sensoric	55	XPF0011-
75	Weight FMP5x, rope 4mm 1/6″, 316L	Weights	56	71114452
76	Rope centering disc d=75mm/2,95″, 316L	further parts		71536664
77	Rope centering weight d=45mm,h=60mm,316L	further parts		71536668
78	Rope centering weight d=75mm,h=30mm,316L	further parts		71536671
79	Rope centering weight d=95mm,h=30mm,316L	further parts		71536672
80	Nordlock washer DIN25201-A4, M10, 5 pcs.	Fixing	59	71023427
81	Nut, wrench size 14, M10 316L	Fixing	58	71114458
82	Threaded pin M10x1, AlloyC22	Fixing	54	71156686
83	HF-Coax cable L=3m/9ft, plug	Cable/cable accessories	70	71114823
84	HF-Coaxcable L=6m/18ft, plug	Cable/cable accessories	70	71235564
85	HF-Coaxcable L=9m/27ft, plug	Cable/cable accessories	70	71235578
86	Weather prot. cover GT18/GT19/GT20, 316L	further parts		71162242
87	Spare RFID TAG	further parts		XPRFID-
88	Blind plug M20, 316L, Ex d	further parts		71679712
89	Blind plug M20, Alu, Ex d	further parts		71679714
90	Overvoltage protection (OVP10),1-Channel			71128617
91	Overvoltage protection (OVP20),2-Channel			71128619
92	Rope centering star, PEEK, 48-95mm, 1 pc			71373490
93	Rope centering star, PEEK, 48-95mm, 5 pc			71373492
94	Rod centering star d=48-95mm, PEEK			71381909
95	Bluetooth module (BT10)			71377355
96	Weather protection cov.GT18/GT19/GT20			71132889
97	Mountingset for remote sensor			71102216
98	Centering star PEEK 48-95mm/1.89-3.74in			71069064
99	Centering star PFA 37mm/16mm			71069065
100	Isolation tie down of the 4mm rope probe			52014249
101	Screw in flange FAX50			FAX50-
