Universal assembly for the water and wastewater industry

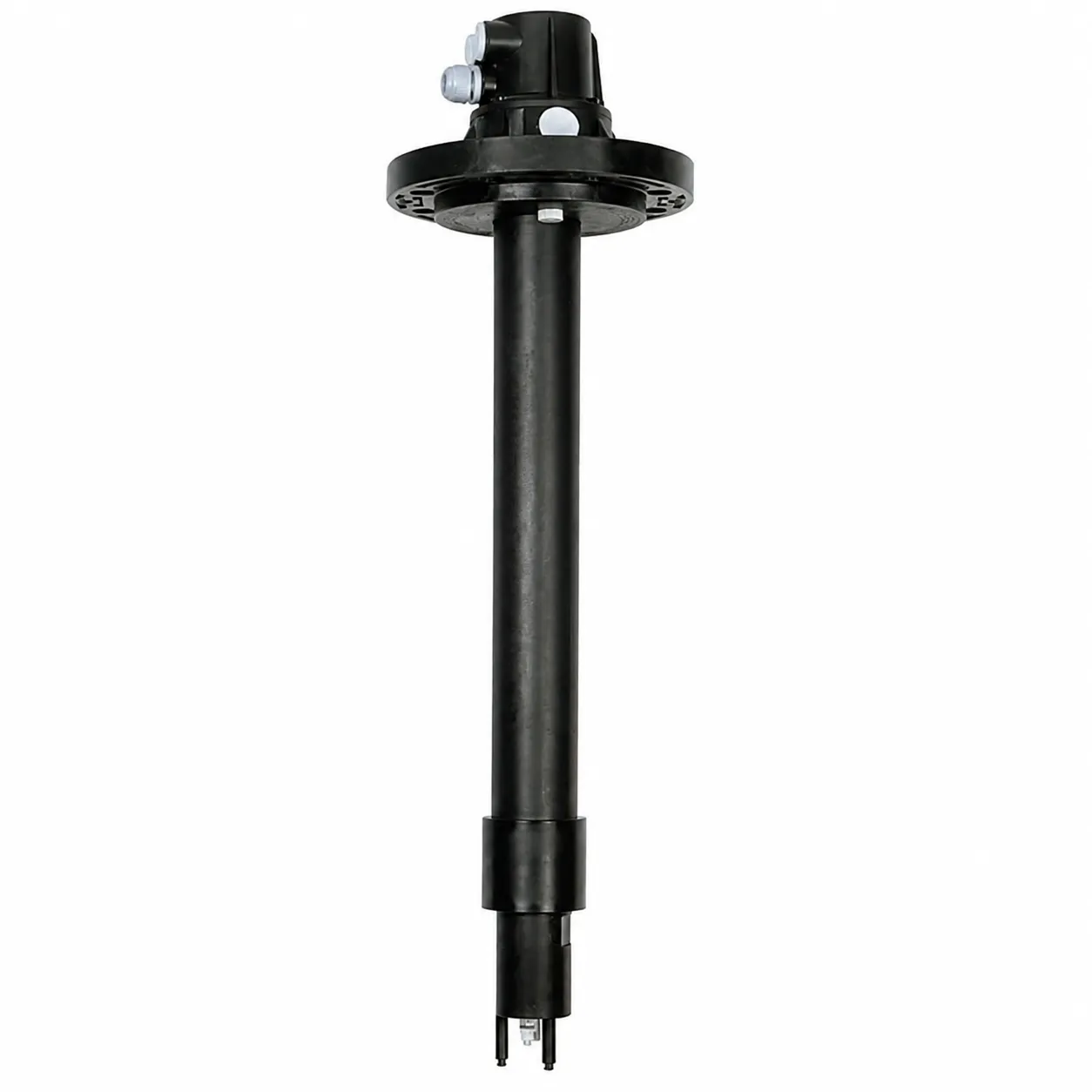

The Dipfit CPA111 immersion assembly is designed for applications in open and closed tanks. It offers space for three sensors that can be easily mounted and removed via the bayonet lock. The adjustable flange gives you the required flexibility for universal use. Dipfit is the time- and cost-efficient solution for standard water and wastewater treatment.
| Description | Category | Order Code | |
| 1 | Kit CPA111 Sealing set EPDM | further parts | 71467082 |
| 2 | Kit CPA111 Sealing set FKM | further parts | 71467083 |
| 3 | Kit CXA111/140 cover complete | further parts | 51500400 |
| 4 | Kit CxA111/140 Small parts | further parts | 71467085 |
| 5 | Kit CxA111 Star handle screws (2x) | further parts | 71467090 |
| 6 | Kit CxA111 adapter for adj. flange | further parts | 71467087 |
| 7 | Kit CxA111 adjustable flange | further parts | 71467086 |
| 8 | pressure flange DN100 | further parts | 50066593 |
| 9 | Kit CPA111 electr. holder small parts | further parts | 71467077 |
| 10 | Kit CPA111 electrode holder | further parts | 71467078 |
| 11 | Kit CPA111 potential matching pin | further parts | 71467080 |
| 12 | Suspension bracket assembly | further parts | 50075422 |
| 13 | Kit CxA111 Additional weights | further parts | 71467089 |
| 14 | o-ring set EPDM | further parts | 50091993 |
| 15 | O-ring set Viton for CPA111 | further parts | 50072145 |
| 16 | Calibration cap for CPA111 | 50066570 | |
| 17 | Wet bucket for CPA111 | 50066569 | |
| 18 | Mounting frame | 50066561 |
