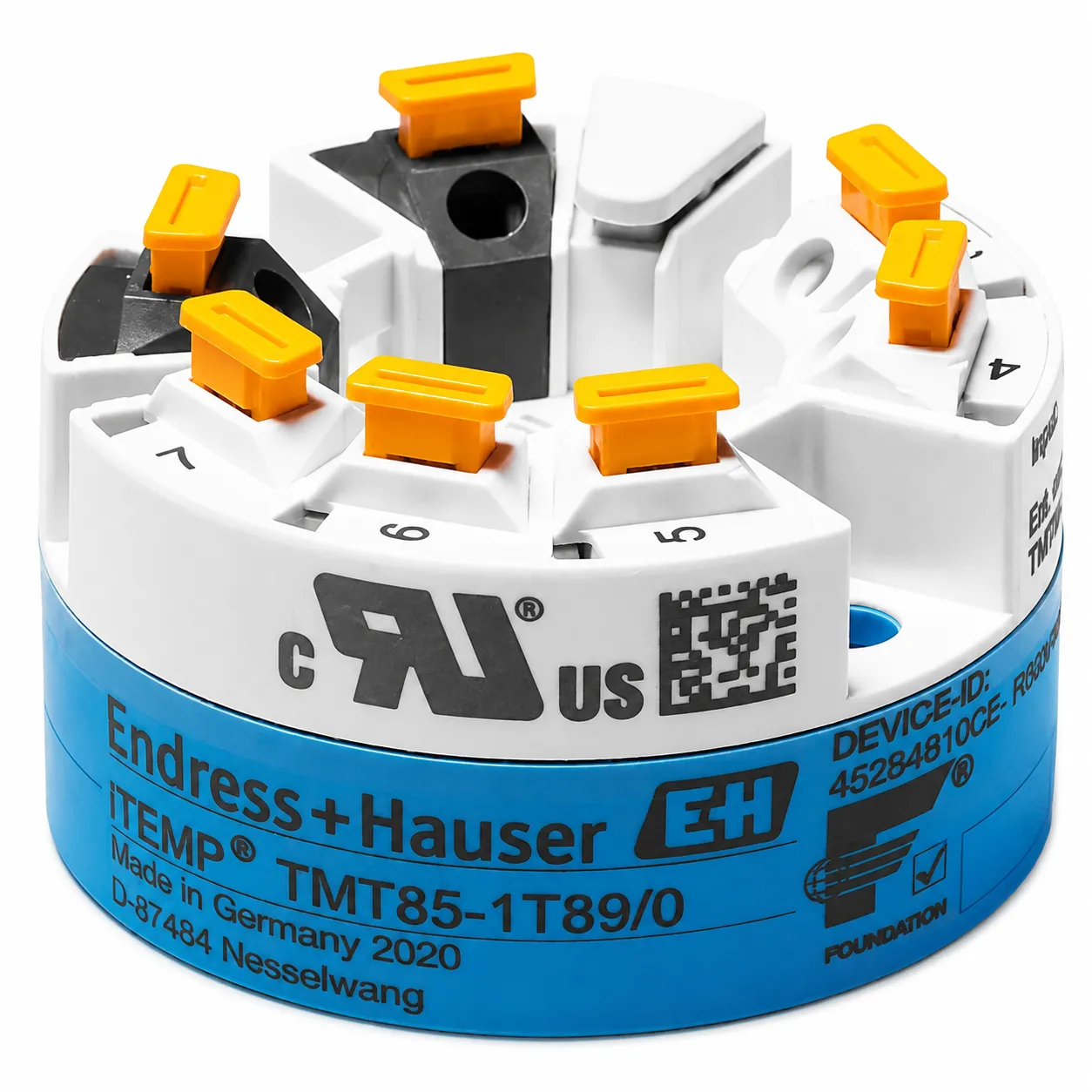

FOUNDATION Fieldbus™ temperature transmitter as head or field device with two universal sensor inputs suitable for use in hazardous areas
Accuracy (Pt100) <= 0,1 K (Pt100) <= 0,18 °F
Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers digital converted signals from RTD and TC sensors, it also transfers resistance and voltage signals using FOUNDATION Fieldbus™ communication. High measurement point availability by means of sensor monitoring functions and device hardware fault recognition. Optimization of the measurement accuracy by sensor transmitter matching.
| Description | Category | Order Code | |
| 1 | Terminal Head TA30A | further parts | TA30A- |
| 2 | Terminal Head TA30D | further parts | TA30D- |
| 3 | Terminal Head TA30H | further parts | TA30H- |
| 4 | Set O-ring 74×3 75o VMQ Silicon (5 pcs.) | further parts | 71600564 |
| 5 | Cover latch spares kit field housing | further parts | 51004948 |
| 6 | iTEMP TMT85, Transmitter FF | further parts | TMT85- |
| 7 | Fixing kit cpl. TMT8x/7x USA(american) | further parts | 71044062 |
| 8 | Fixing kit cpl. TMT8x/7x (european) | further parts | 71044061 |
| 9 | TID10 Service cable | further parts | 71086650 |
| 10 | Cable gland M20x1.5 ATEX/IECEx | further parts | 71638066 |
| 11 | Spare RFID TAG | further parts | XPRFID- |
| 12 | Spare parts kit sealing TA30A/TA30D | 71182602 | |
| 13 | Display Unit Head Transmitter | TID10- | |
| 14 | Adapter DIN rail mounting | 71528231 | |
| 15 | Cable gland NPT1/2, D4.5-8.5 IP68 | 51006845 | |
| 16 | Set mounting bracket pipe W06 neutral | 71274384 | |
| 17 | Set mounting bracket wall cpl. W06 neutr | 71274372 |
