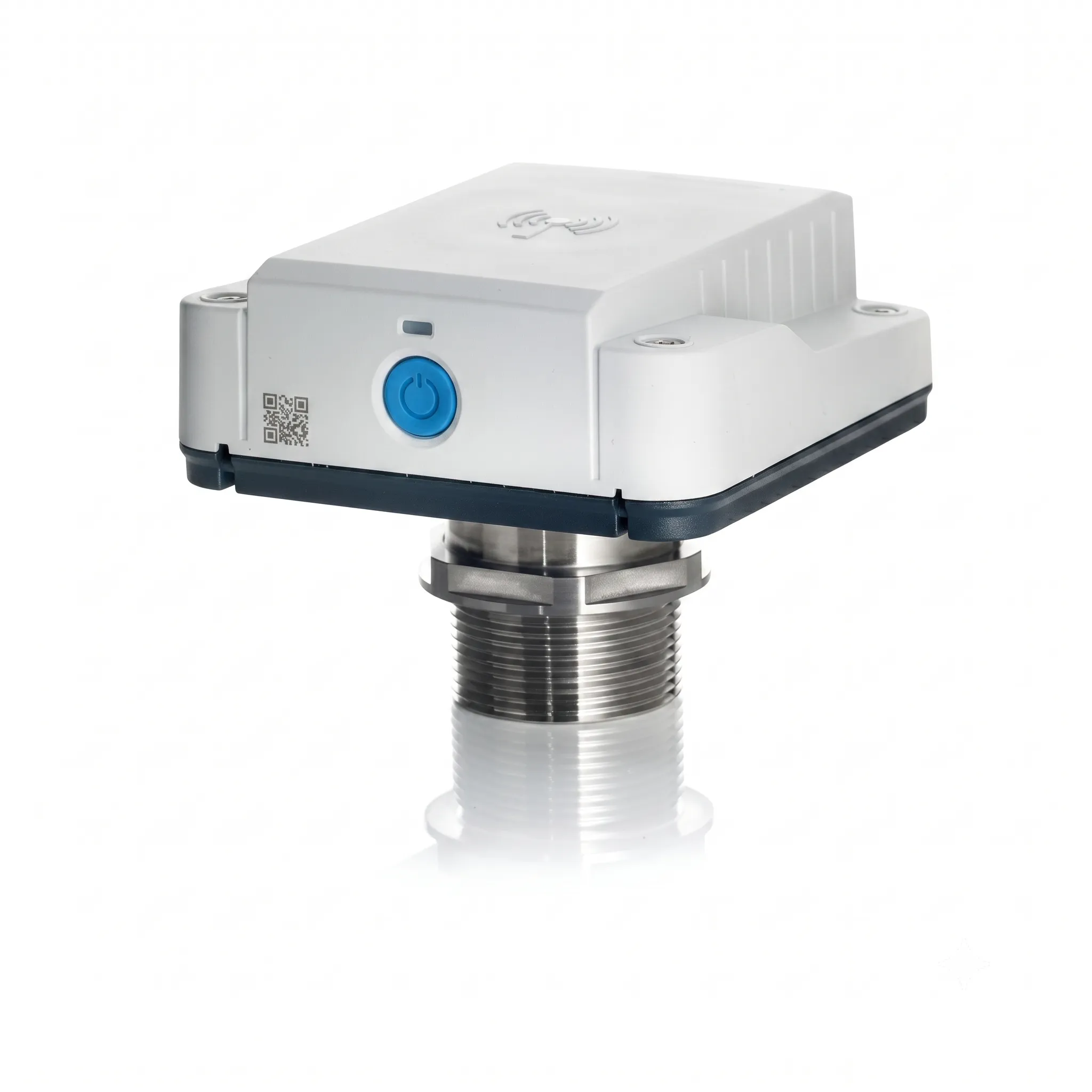

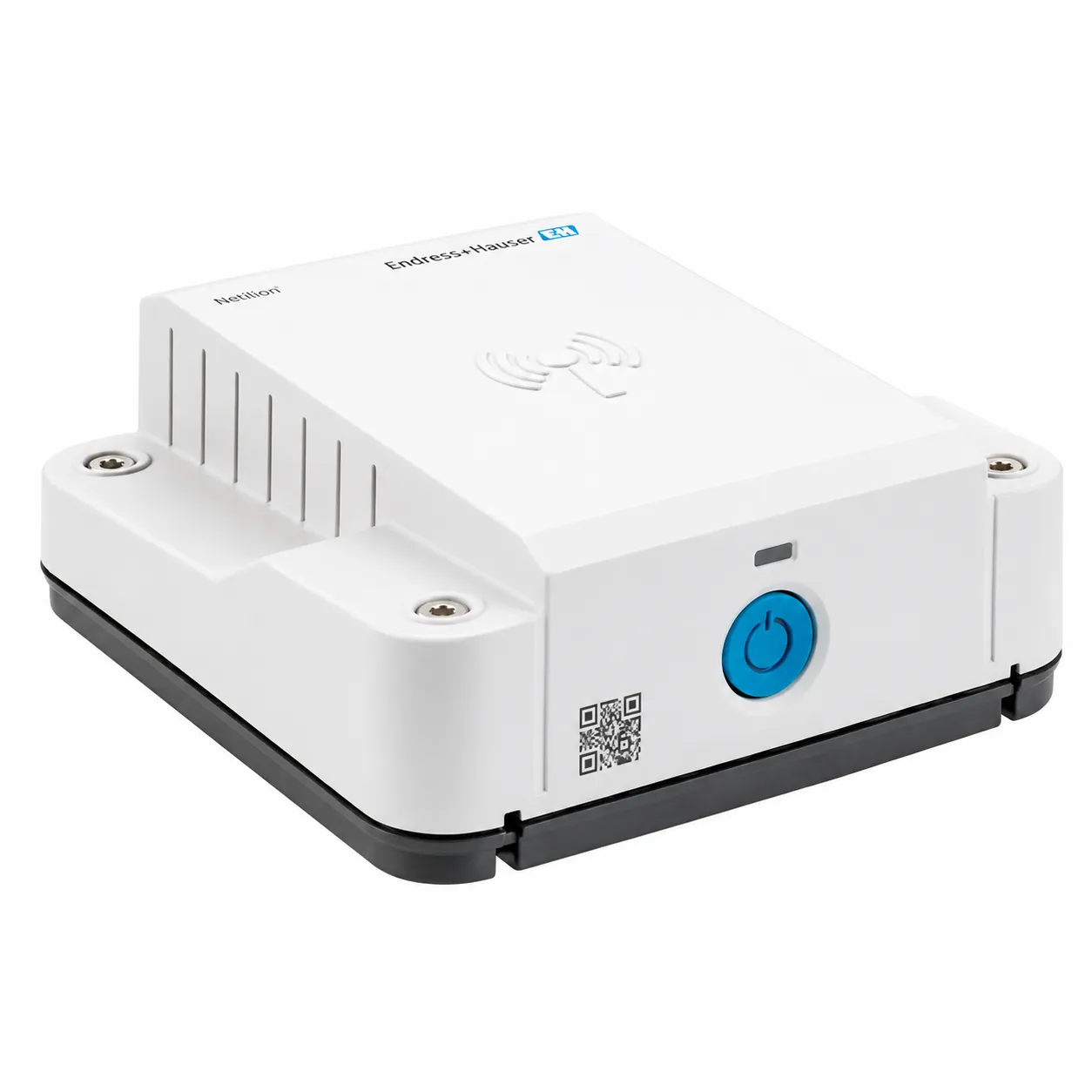

Micropilot FWR30 – cloud connected radar level sensor | Endress Hauser E+H

Reliable non-contact level measurement in IIoT applications

Request a Quote

Specs at a glance

  • Accuracy ±5 mm (0.20 in)
  • Process temperature -20°C…+60°C (-4°F…+140°F)
  • Max. measurement distance 30 m (98 ft)
  • Main wetted parts Housing: plastic PBT/ PC

Field of application

Micropilot FWR30 is a battery-powered 80 GHz radar sensor for reliable non-contact level measurement in IIoT applications. Combined with cloud services Netilion or SupplyCare Hosting, Micropilot FWR30 enables digital inventory management, logistics operation and environmental monitoring. Measurement data is securely transmitted to the cloud, where it can be accessed at any time via mobile device or desktop computer. Its integrated GPS function supports location verification of measuring points.

Benefits

  • Full transparency for the storage and transportation of liquids and bulk solids
  • Fast, cable‑free installation with long‑life battery power
  • Remote monitoring even at hard-to-reach measuring points via reliable wireless connectivity
  • Cloud-based secure data transmission through the certified Netilion or SupplyCare cloud platform
  • GPS tracking for location verification of mobile tanks or outdoor installations

Spare parts & accessories

2 spare parts & accessoriesOrder code
1Mounting bracket IBC/pipe vertical71447849
2Mounting bracket adjustable wall/ceiling71447853
