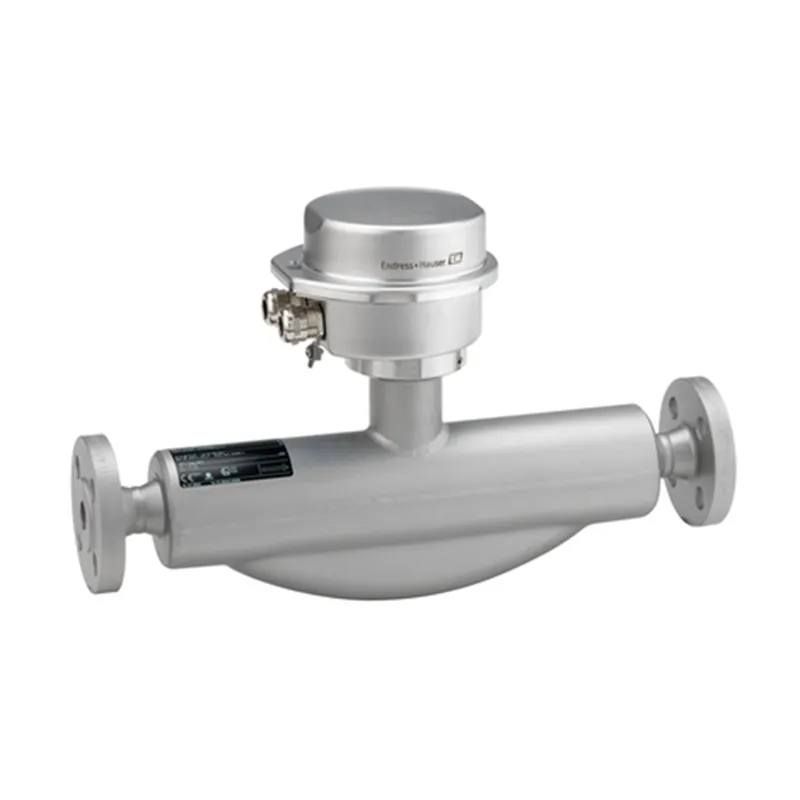

Proline Promass F 100 Coriolis flowmeter | Endress Hauser E+H

The flowmeter with premium accuracy, robustness and an ultra-compact transmitter

Request a Quote

Flow measurement

أجهزة قياس المستوى السائل/الصلب

أجهزة تحليل السوائل

أجهزة قياس درجة الحرارة

أجهزة قياس الضغط

System products

قطع غيار الأتمتة الصناعية

Specs at a glance

Max. measurement error Mass flow (liquid): ±0.1 % (standard), 0.05 % (option) Volume flow (liquid): ±0.1 % Mass flow (gas): ±0.25 % Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 2 200 000 kg/h (0 to 80 840 lb/min)
Medium temperature range Standard: –50 to +150 °C (–58 to +302 °F) Option: –50 to +240 °C (–58…+464 °F)

Max. process pressure PN 100, Class 600, 63K
Wetted materials Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022) Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)

Field of application

Promass F has a long standing reputation as a highly accurate device under varying process conditions. It is suited for broadest range of applications. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Promass F 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers. Available with an extra-compact stainless steel hygienic housing it can be placed even into the most compact rigs.

Benefits

Highest process safety – immune to fluctuating and harsh environments

Fewer process measuring points – multivariable measurement (flow, density, temperature)

Space-saving installation – no in/outlet run needs
Space-saving transmitter – full functionality on smallest footprint
Time-saving local operation without additional software and hardware – integrated web server

Integrated verification – Heartbeat Technology

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Electronic Promass/Cubemass 100	Electronic	30	XPD0005-
2	Display module, 4-wire, 100	Display	50	XPD0023-
3	Kit Ex-i barrier	Electronic (periphery)	47	71185785
4	Kit connection terminal for Ex-i barrier	Terminals	45	71185787
5	Kit T-DAT, 100/300/400/500	Memory	39	71185788
6	Kit cover, compact, Alu	Cover	21	71185789
7	Kit cover, compact, stainless 1.4301	Cover	21	71185790
8	Kit cover,ultra compact,stainless 1.4301	Cover	21	71185793
9	Kit cover, sight glass, compact, Alu	Cover	20	71266334
10	Kit cover, sight glass, compact, 1.4301	Cover	20	71266335
11	Kit cover,sight glass,ultra comp.,1.4301	Cover	20	71266337
12	Kit housing gaskets, compact, Alu	Sealing	70	71185795
13	Kit housing gaskets, compact, stainless	Sealing	70	71185797
14	Kit hous.gaskets,ultra compact,stainless	Sealing	70	71185799
15	Kit 10 cable glands M20x1.5 Ex	Adapter housing/cable entry	15	50098036
16	Kit 2 cable glands M20x1.5 INOX Ex	Adapter housing/cable entry	15	71069285
17	Kit 10 ext. M20x1.5/G 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098041
18	Kit 2 cable glands G1/2″ INOX Ex	Adapter housing/cable entry	15	71185802
19	Kit 10 ext. M20x1.5/NPT 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098042
20	Kit 2 cable glands NPT1/2″ INOX Ex	Adapter housing/cable entry	15	71185800
21	Kit securing clamp, screw	Housing/housing accessories	12	71276494
22	Spare RFID TAG	further parts		XPRFID-
23	Spare IEC TAG	further parts		XPSPEC-
24	Promass sensor, heating jacket, DK8003			DK8003-
