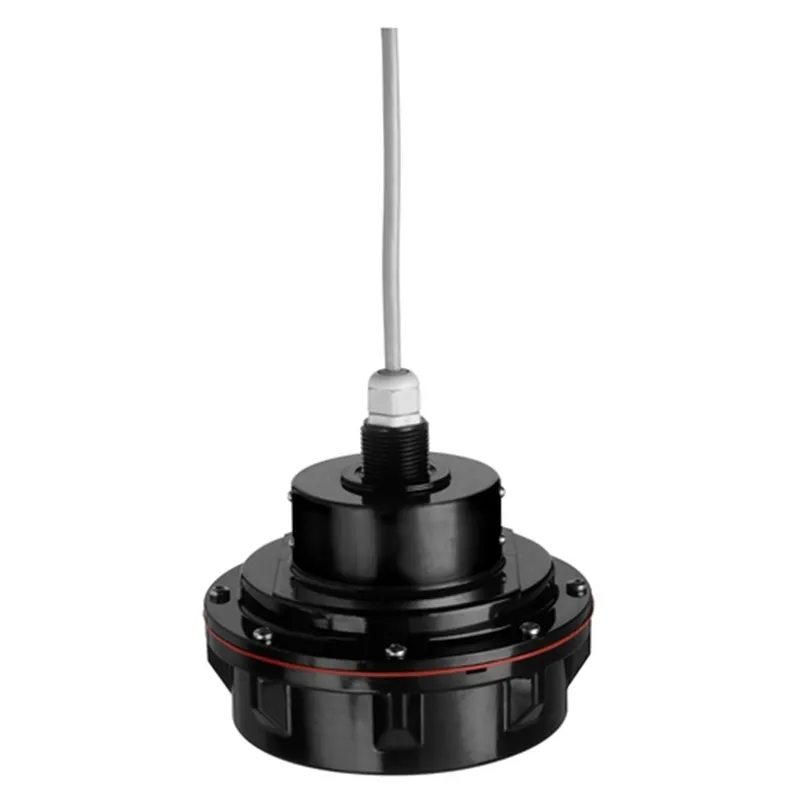

Ultrasonic sensor for level and flow measurement for connection to FMU9x (measuring range up to 25m)
The FDU93 ultrasonic sensor for continuous, non contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. But also for flow measurement in open channels and measuring weirs. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in liquids 25m (85ft), solids 15m (50ft).
| Description | Category | Drawing No. | Order Code | |
| 1 | Sensor support 500mm, 316L | 71452315 | ||
| 2 | Sensor support 1000mm, 316L, US-sensor | 71452316 | ||
| 3 | Mounting bracket Prosonic S, Micropilot | 71093130 | ||
| 4 | Bracket 700mm, 316L | 71452327 | ||
| 5 | Bracket 1400mm, 316L | 71452326 | ||
| 6 | Wall bracket for sensor support, 316L | 71452323 | ||
| 7 | Extension cable FDU91F/93/95, PVC | 71027743 | ||
| 8 | Screw in flange FAX50 | FAX50- | ||
| 9 | Alignment device TTP FAU40 | FAU40- |
