Conductive Point level detection Liquipoint FTW33

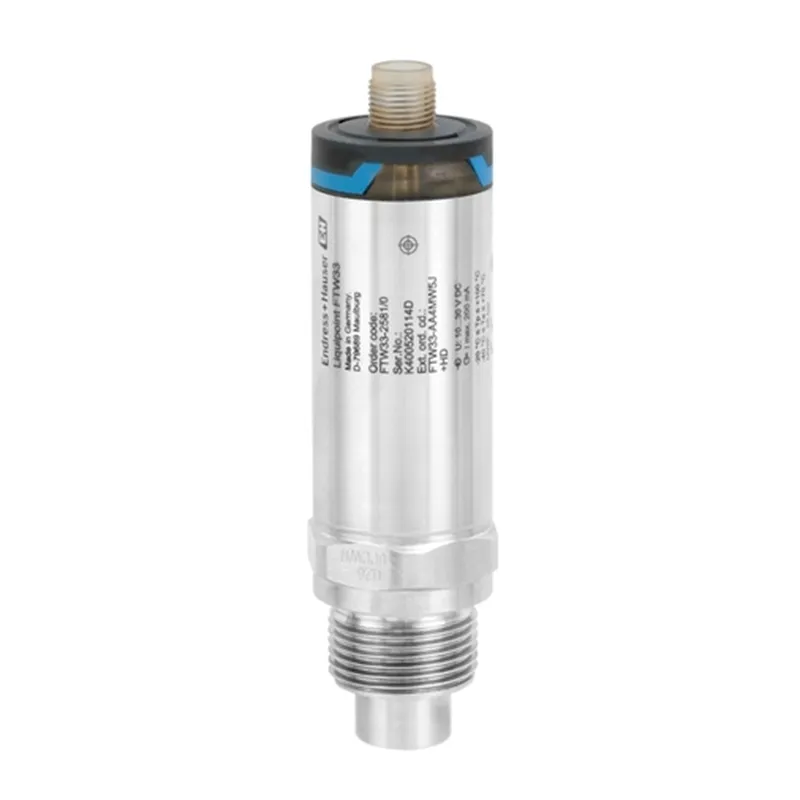

Very compact flush-mounted probe for liquid and pasty media

Automation Components

Specs at a glance

Process temperature Standard: -20 … 100°C Cleaning: -20 … 150°C for 1h ( -4 … 302°F for 1h)

Process pressure / max. overpressure limit Vacuum … 25 bar (Vacuum … 362,5 psi)

Field of application

The Liquipoint FTW33 is developed for the food industry and meets all international hygiene requirements. The device also fits perfectly for applications in all industries. For use in pasty and sticky media and media with heavy build-up.

Benefits

Perfect fit to the hygienic industry thanks to flush-mounted design, which allows pigging of pipes

Safe and reliable measurement due to build-up compensation, ensuring reliable switching; IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems

Individual adjustment to each medium not necessary
Easy installation thanks to compact design, even in tight conditions or where access is restricted

Broad range of process connections for installation in new and existing plants

CIP and SIP cleanability ensured – up to protection class IP 69
LED display for on-site function check

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Valve Plug ISO4400 M16, 4-pole	further parts		71280307
2	Valve plug ISO4400 NPTF1/2, 4-pole	further parts		71280349
3	Valve plug ISO4400 QUICKON, 4-pole	further parts		71280350
4	Sealing ring G1/2, 21×26, FA, 5 pcs.	further parts	57	71194296
5	Sealing ring G3/4, 27×32, FA, 5 pcs.	further parts	57	71185027
6	Sealing ring G1, 33×39 FA, 5 pcs.	further parts	57	52014048
7	Sealing ring 15,08×2,62 EPDM, 5 pcs	further parts		71529759
8	O-ring 14.9×2.7 VMQ, FDA, 5 pcs.	further parts		52021717
9	O-ring 14.9×2.7 VMQ, FDA, USP, 3 pcs.	further parts		71086117
10	O-ring 28.17×3.53 VMQ, FDA, 5 pcs.	further parts		52014472
11	O-ring 28.17×3.53 VMQ, FDA, USP, 3 pcs.	further parts		71086102
12	O-ring 28.17×3.53 EPDM, FDA, USP, 3 pcs.	further parts		71140668
13	Profile gasket 29x36x3.7, FDA, 5 pcs.	further parts		52014424
14	M12-female plug connector, cable side			52006263
15	M12-female plug connec., 90deg, 5m cable			52024216
16	Cable M12-plug to 90o M12-fem.plug,LED			52018763
17	M12-female plug connec., 100deg,5m cable			52010285
18	Socket wrench 32AF			52010156
19	Test magnet			71267011
20	Protection cover F16 housing			71127760
21	Weld-in adapter G3/4, d=29, 316L			71258357
22	Weld-in adapter G3/4, d=29, 316L, 3.1			52028295
23	Weld-in adapter G3/4 d=50, 316L			71258355
24	Weld-in adapter G3/4 d=50, 316L, 3.1			52018765
25	Weld-in adapter G1, d=53, 316L			71258358
26	Weld-in adapter G1, d=53, 316L, 3.1			71093129
27	Weld-in adapter G1, d=60, 316L			52001051
28	Weld-in adapter G1, d=60, 316L, 3.1			52011896
29	Weld-in adapter M24 D65, 316L			71041381
30	Weld-in adapter M24 D65, 316L, 3.1			71041383
31	Proc. adap. M24 Variv N DN50 PN40 316L			52023997
32	Proc.adap.M24 Variv N DN50 PN40 316L 3.1			52024004
33	Process adap. M24 Variv F DN25 PN40 316L			52023996
34	Proc.adap.M24 Variv.F DN25 PN40 316L 3.1			52024003
35	Process adapter M24 DIN11851 DN50, 316L			52023998
36	Process adap. M24 DIN11851 DN50,316L,3.1			52024005
37	Process adapter M24 SMS 1-1/2″, 316L			52026997
38	Process adapter M24 SMS 1-1/2″,316L, 3.1			52026999
39	Process adap. M24 Clamp 1…1 1/2″, 316L			52023994
40	Process adapter M24 Clamp 2″, 316L			52023995
41	Process adapter M24 DIN11851 DN40, 316L			52023999
42	Process adapter M24 APV-Inline, 316L			52024000
43	Process adap. M24 Clamp 1 1/2, 316L, 3.1			52024001
44	Process adapter M24 Clamp 2″, 316L, 3.1			52024002
45	Process adap. M24 DIN11851 DN40,316L,3.1			52024006
46	Process adapter M24 APV-Inline,316L, 3.1			52024007
47	Union nut DIN11851, F25, SS			52021715
48	Union nut DIN11851, F40, 304			71258361
49	Pipe assembly DN25, flush mount			71477801
50	Pipe assembly DN32, flush mount			71477803
51	Pipe assembly DN40, flush mount			71477807
52	Pipe assembly DN50, flush mount			71477808
53	Pipe assembly Clamp DN25, flush mount			71477812
54	Pipe assembly Clamp DN32, flush mount			71477813
55	Pipe assembly Clamp DN40, flush mount			71477816
56	Pipe assembly Clamp DN50, flush mount			71477817
57	EPDM O-rings process adapter M24			52024267
58	Blind plug for weld-in adap. G3/4, 316L			71675412
59	Blind plug for weld-in adap.G1, 316L.3.1			71675413
60	Welding dummy for weld-in adap. G1,brass			71675410
61	Welding dummy for weld-in ad. G3/4,brass			71675415
62	O-ring 15,08×2,62 EPDM, 5 pcs			71675405
63	O-Ring 15,08×2,62 FKM, 5 pcs			71675404
64	O-Ring 28,17×3,53 FKM, 5 pcs			71675402
