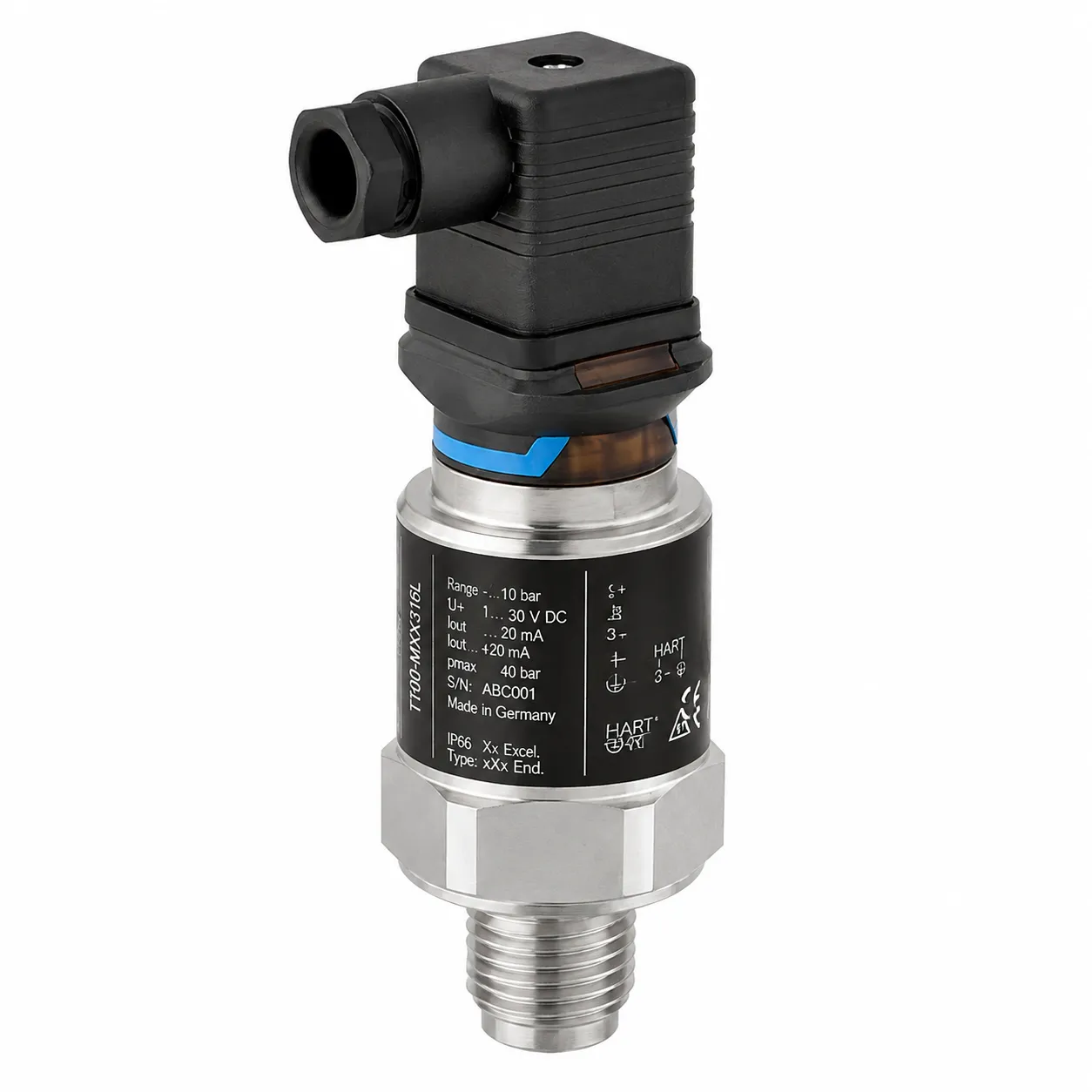

Gauge pressure Cerabar PMC11 | Endress Hauser E+H

Cost-effective pressure transducer with ceramic sensor for measurement in gases or liquids

Automation Components

Specs at a glance

Accuracy 0.5%
Process temperature -25 °C…+85 °C (-13 °F…+185 °F)
Pressure measuring range +400 mbar…+40 bar (+6 psi…+600 psi)
Measuring cell +400 mbar…+40 bar (+6 psi…+600 psi)

Field of application

The Cerabar PMC11 is the most price-attractive compact pressure transmitter in its segment. It features a capacitive, oil free ceramic sensor and is able to measure gauge pressure from 400mbar up to 40bar. The PMC11 is designed for standard applications in the process industry and to withstand the conditions with the use of high quality materials like 316L and 99,9% Al O .

Benefits

Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges

Reference accuracy of 0.5% together with high long- term stability and repeatability ensures a high quality of process monitoring in standard processes

Capacitive oil-free measuring cell with high abrasion resistance and 100% test coverage during production guarantees long process availability

Spare parts & accessories

	Description	Category	Order Code
1	Valve Plug ISO4400 M16, 4-pole	further parts	71280307
2	Valve plug ISO4400 NPTF1/2, 4-pole	further parts	71280349
3	M12-female plug connector, cable side		52006263
4	M12-female plug connec., 100deg,5m cable		52010285
