Hydrostatic Level measurement Deltapilot FMB53 | Endress Hauser E+H

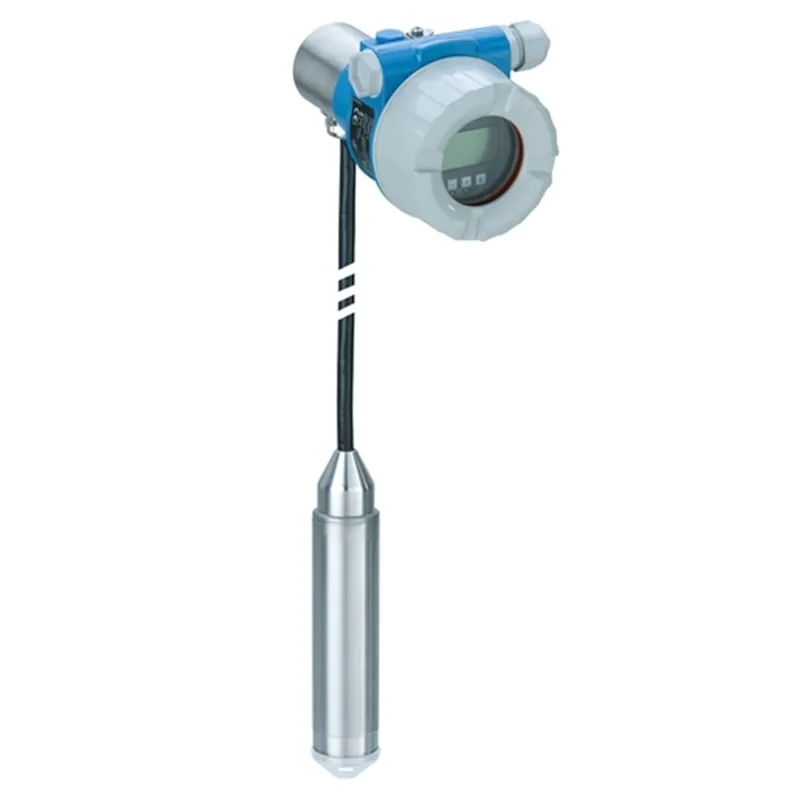

Pressure sensor with Contite measuring cell for hydrostatic level measurement

Automation Components

Specs at a glance

Accuracy Standard 0.2% Optional 0.1%
Process temperature PE cable: -10°C…70°C / 14°F…158°F FEP cable: -10°C…80°C / 14°F…176°F

Pressure measuring range 100mbar…10bar (1.5psi…150psi)
Process pressure / max. overpressure limit 40 bar (600 psi)
Main wetted parts Alloy C 316L Cable (PE/FEP) optional coating AuPt optional coating AuRh

Field of application

The Deltapilot FMB53 is a cable version with mounting clamp. This device with the Contite measuring cell is typically used in the environmental industries. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. For use in SIL2 safety systems.

Benefits

Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and minimum temperature effects

Modular concept for easy replacement of display or electronics
Seamless and independent system integration (HART/PA/FF)
Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION Fieldbus

International usage thanks to a wide range of approvals

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Housing filter VA, EPDM, 1 piece	Housing/housing accessories	19	71111056
2	Housing filter VA, VMQ, F15, T17, 1 pc.	Housing/housing accessories	19	71219639
3	Cover F15 316L, gasket	Cover	20	52027000
4	Cover F15 316L, sight glass, gasket	Cover	20	52027002
5	Cover F15, sight glass PC, 316L, gasket	Cover	20	52028207
6	Cover F15 316L,claw,sight glass,gasket	Cover	20	52028267
7	Cover F15 316L, claw, gasket	Cover	20	52028268
8	Cover F30/31/34 Alu, gasket	Cover	20	71092705
9	Cover F30/31/34 Alu, sight glass, gasket	Cover	20	71092707
10	Sealing EPDM, F30/31/34, T14/15, 5 pcs.	Sealing	21	52020429
11	Gasket 67.5×2.9×1.5 VMQ/PTFE, 5 pieces	Sealing	21	52028179
12	Cable gland M20 PA, o-ring VMQ	Adapter housing/cable entry	15	52002449
13	Plug 3p M12/M20, gasket	Adapter housing/cable entry	15	52005984
14	Plug 3-pole, M12, PA, gasket	Adapter housing/cable entry	15	52020763
15	Plug 2/7-pole, HAN7D, gasket	Adapter housing/cable entry	15	52020762
16	Cable gland M20 PA, O-ring EPDM/PTFE	Adapter housing/cable entry	15	71092709
17	Cable gland M20 Metal, gasket	Adapter housing/cable entry	15	71092711
18	Cable entry G1/2, gasket, adapter	Adapter housing/cable entry	15	71092712
19	Plug valve, F30/F31, seal NBR	Adapter housing/cable entry	15	71120017
20	Ground terminal T14/T15/T17, F30/F31	further parts		71290825
21	Electronics FMB5x, PMC51, PMP5x, PMD55	Electronic	30	XPP0001-
22	Display module VU340, Cbar/Dbar/Dpilot M	Display	40	71091670
23	Holder Display Dbar/Cbar/Dpilot M	further parts	41	71094113
24	Membran protection FMB51/52/53, 5 pieces	further parts		71220481
25	Modification name plate, non Ex	further parts		71067434
26	Spare RFID TAG	further parts		XPRFID-
27	Spare IEC TAG	further parts		XPSPEC-
28	Mountingset for remote sensor		53	71102216
29	M12-female plug connector, cable side			52006263
30	M12-female plug connec., 100deg,5m cable			52010285
31	M12-female plug connec.,90deg,cable side			71114212
32	Extension cable shortening kit FMB53			71125862
