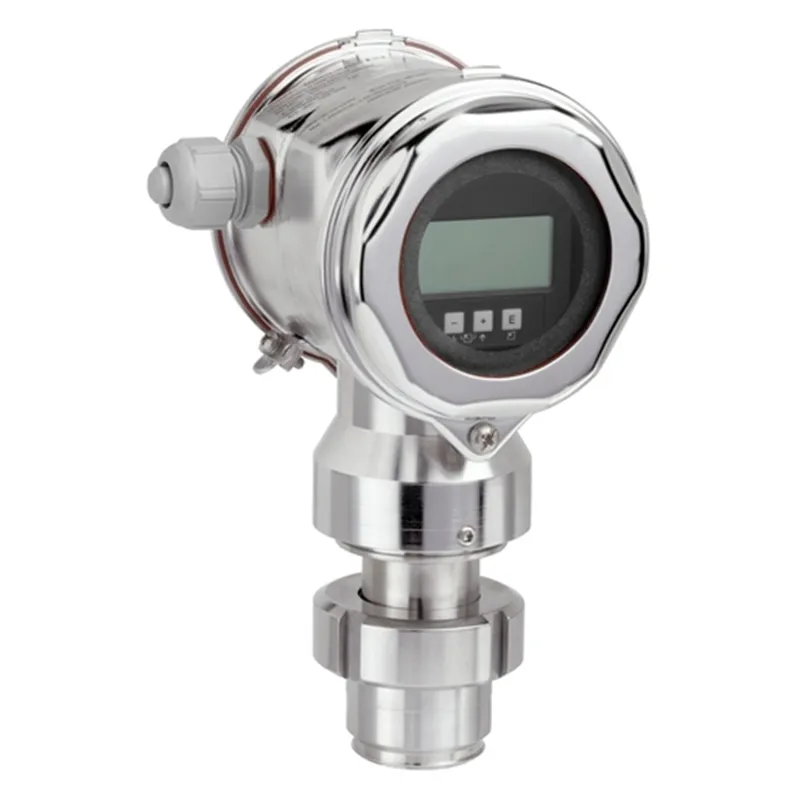

Hydrostatic Level measurement Deltapilot FMB70 | Endress Hauser E+H

Highest performance pressure sensor with the Contite cell for hydrostatic level measurement

Automation Components

Specs at a glance

Accuracy Standard 0.1% Optional 0.075%
Process temperature -10°C…+100°C (+14°F…+212°F)
Pressure measuring range 100 mbar…10 bar (1.5 psi…150 psi)
Process pressure / max. overpressure limit 40 bar (600 psi)
Main wetted parts Alloy C 316L

Field of application

The Deltapilot FMB70 with the condensate resistant Contite measuring cell and two-chamber housing is typically used in the process and hygienic applications. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. The integrated HistoROM/ M-DAT data module makes management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety systems.

Benefits

Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.1%, optionally ±0.075% and minimum temperature effects thanks to active temperature compensation

Best batch-to-batch repeatability and long-term stability
Modular concept for easy replacement of display or electronics
HistoROM/M-DAT data backup for instrument settings and measured values

Function-monitored from the measuring cell to the electronics
Seamless and independent system integration (HART/PA/FF)
International usage thanks to a wide range of approvals

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Mounting set housing T14/T15 sensor	Housing/housing accessories	12	52020440
2	Mounting set housing T17 / sensor	Housing/housing accessories	12	71020596
3	Push button housing, PA/FF	Housing/housing accessories	13	52022418
4	Push button housing, HART, version 2	Housing/housing accessories	13	52024110
5	Cable gland M20, plastic	Adapter housing/cable entry	15	71435135
6	Cable gland M20, gasket	Adapter housing/cable entry	15	52020760
7	Cable entry G1/2, gasket, adapter	Adapter housing/cable entry	15	52020761
8	Plug 2/7-pole, HAN7D, gasket	Adapter housing/cable entry	15	52020762
9	Plug 3-pole, M12, PA, gasket	Adapter housing/cable entry	15	52020763
10	M12-female plug connector, cable side	further parts		52006263
11	Housing filter plastic T15, 3 pieces	further parts		71043576
12	Housing filter VA, EPDM, 1 piece	further parts		71111056
13	Housing filter VA, VMQ, F15, T17, 1 pc.	further parts		71219639
14	Cover T14/T15 Alu, EPDM	Cover	20	52020432
15	Cover T14/T15 Alu, sight glass,gasket	Cover	20	52020492
16	Cover T17 316L, EPDM	Cover	25	71002774
17	Cover T17 316L, sight glass, EPDM	Cover	20	71002810
18	Cover T17 316L, sight glass PC, EPDM	Cover	20	71002811
19	Cover T14/T15 Alu, sight glass, EPDM	Cover	20	71245247
20	Sealing EPDM, F30/31/34, T14/15, 5 pcs.	Sealing	21	52020429
21	Ground terminal T14/T15/T17, F30/F31	further parts		71290825
22	Cover T14/T15 Alu, EPDM	Cover	25	52020432
23	Electronics HART Ex, v2.10	Electronic	30	71026358
24	Electronics HART Ex, ext. p. b., v2.10	Electronic	30	71026359
25	Electronics PA, ext.p.b.,HW1.10,SW4.0	Electronic	30	71043454
26	Electronics PA, HW1.10, SW4.0	Electronic	30	71043455
27	Electronics PA, HW02.00, SW4.0	Electronic	30	71071824
28	Electronics PA, ext. p.b., HW02.00,SW4.0	Electronic	30	71071825
29	Electronics FF, HW2.00, SW3.00	Electronic	30	71071826
30	Electronics FF, ext. p.b., HW2.00,SW3.00	Electronic	30	71071827
31	Electronic HART Ex, v2.11	Electronic	30	71196092
32	Electronics HART Ex, ext. p. b., v2.11	Electronic	30	71196093
33	Electronics FF, ext. p.b.,HW2.00, SW4.00	Electronic	30	71214890
34	Electronics FF, HW2.00, SW4.00	Electronic	30	71214892
35	Electronics PA, HW02.00, SW4.01	Electronic	30	71224775
36	Electronics PA, ext.p. b.,HW02.00,SW4.01	Electronic	30	71224776
37	Electronics HART Ex, v2.20	Electronic	30	71263933
38	Electronics HART Ex, ext. p. b., v2.20	Electronic	30	71263934
39	Elektronics HART Ex, v2.30	Electronic	30	71386147
40	Electronics HART Ex, ext. p. b., v2.30	Electronic	30	71386153
41	HistoROM / M-DAT, 16K	Memory	31	52027785
42	HistoROM / M-DAT, 16K	Memory	31	52027785
43	Terminal 2-pole, RFI, FF, Ex	Terminal module	35	52027691
44	Terminal 2-pole, RFI, PA, OVP, Ex	Terminal module	35	71028475
45	Terminal 2-pole, RFI, FF, OVP, Ex	Terminal module	35	71028476
46	Terminal 2-pole, RFI, PA, Ex	Terminal module	35	71121574
47	Terminal 3-pole,Li=0, RFI,HART,Ex ia/Exd	Terminal module	35	71191892
48	Termin.3-p.,Li=0,RFI,HART,OVP,Ex ia/Exd	Terminal module	35	71191894
49	Display module VU340, Cbar/Dbar/Dpilot S	Display	40	71002865
50	Sensor Deltapilot S FMB70	Sensoric	50	FMB70X-
51	Cable PE,80inch,sep. housing FMXXX/PMXXX	further parts		71043886
52	Cable PE,200inch,sep.housing FMXXX/PMXXX	further parts		71043888
53	Cable PE,400inch,sep.housing FMXXX/PMXXX	further parts		71043889
54	Cable FEP,200inch,sep.housingFMXXX/PMXXX	further parts		71070738
55	Flat seal 50x65x1 PTFE, FDA, 5 pieces	further parts		52024228
56	Profile gasket silicone, 5 pieces	Sealing	57	52023572
57	Profile gasket EPDM, 5 pieces	Sealing	57	71100719
58	EPDM O-ring+316L backring, EHEDG,1 piece	Sealing	57	71431380
59	EPDM O-ring, EHEDG, 5 pieces	Sealing	57	71545801
60	Spare RFID TAG	further parts		XPRFID-
61	Mounting set Cerabar S, Deltapilot S			52024612
62	Weld-in adapter UNI D65, 316L			214880-0002
63	Weld-in adapter DRD DN50, 316L			52002041
64	Weld-in adapter UNI D85, 316L			52006262
65	Weld-in adapter UNI D85, 316L, 3.1			52010173
66	Weld-in adapter UNI D65, 316L, 3.1			52010174
67	Weld-in adapter DRD DN50, 316L, 3.1			52011899
68	Weld-in adapter G1-1/2, 316L			52024469
69	Weld-in adapter G1-1/2, 316L, 3.1			52024470
70	Weld-in adapter DRD DN50, 304			916743-0000
71	Adapter UNI, DIN11851 DN40, 316L			71114172
72	Adapter UNI, DIN11851 DN50, 316L			71114173
73	Adapter UNI, DRD DN50, 65mm, 316L			71114174
74	Adapter Univ-/Variv N DN40-162 316L			71114177
75	Adapter UNI, DIN11851 DN40, 316L, 3.1			71114178
76	Adapter UNI, DIN11851 DN50, 316L, 3.1			71114205
77	Adapter UNI, DRD DN50, 65mm, 316L, 3.1			71114206
78	Adapter Univ-/Variv N DN40 316L 3.1			71114208
79	Adapter FMB50/FMB70 Clamp 2″ Rd52,304			917650-0002
80	Adapter FMB50/FMB70 pipe DN50Rd52,304			917656-0000
81	Adapter FMB50/FMB70 DRD DN65/Rd52,304			917656-0001
82	Adapter FMB50/FMB70 pipe DN40Rd52,304			917656-0002
83	Weld-in dummy, adapter G1-1/2			52024471
84	Adapter UNI, Clamp 2″, 316L			71114176
85	Adapter UNI, Clamp 2″, 316L, 3.1			71114207
86	Adapter Uni, Clamp 3″, 316L			71350315
87	Weld-in adapter UNI 6″ D85, 316L			71114160
88	Weld-in adapter UNI 6″ D85, 316L 3.1			71114171
89	Mountingset, housing T14, special			71304770
90	Flushing ring NPS 2″ Cl. 150-2500, 316L			71377370
91	Flushing ring NPS 3″ Cl. 150-2500, 316L			71377371
92	Flushing ring DN50, PN16-400, 316L			71377380
93	Flushing ring DN80, PN16-400, 316L			71377383
94	Blind plug weld-in adapter UNI D65/85			71580894
95	Mountingset for remote sensor			71102216
