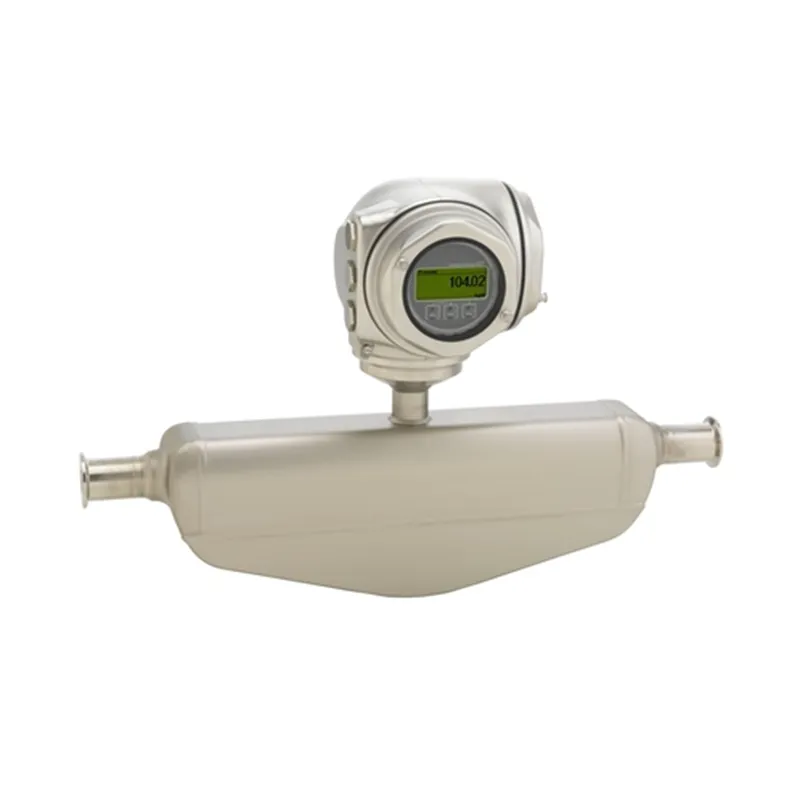

Proline Promass P 300 Coriolis flowmeter | Endress Hauser E+H

Specialist for life sciences with a compact, easily accessible transmitter

Automation Components

Specs at a glance

Max. measurement error Mass flow (liquid): ±0.1 % Volume flow (liquid): ±0.1 % Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 70 000 kg/h (0 to 2570 lb/min)
Medium temperature range Standard: –50 to +150 °C (–58 to +302 °F) Option: –50 to +205 °C (–58 to +401 °F)

Max. process pressure PN 40, Class 150, 20K
Wetted materials Measuring tube: 1.4435 (316L) Connection: 1.4435 (316L); 1.4404 (316/316L)

Field of application

Benefits

Highest process quality – fully compliant to industry requirements
Fewer process measuring points – multivariable measurement (flow, density, temperature)

Space-saving installation – no in-/outlet run needs
Full access to process and diagnostic information – numerous, freely combinable I/Os and Ethernet

Reduced complexity and variety – freely configurable I/O functionality
Integrated verification – Heartbeat Technology

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	ISEM electronic module, Promass 300/500	Electronic	33	XPD0028-
2	I/O module, slot 1, 300/500	I/O module	34	XPD0037-
3	I/O module, slot 2/3/4, 300/500	I/O module	35	XPD0038-
4	Display module, 300/500/DKX001	Display	50	XPD0031-
5	Kit power supply, AC 100…240V, Ex	Power supply	31	71323007
6	Kit power supply, DC 24V, Ex	Power supply	31	71323008
7	Kit power sup.,AC100…240V/DC 24V,N-haz	Power supply	31	71323009
8	Kit T-DAT, 100/300/400/500	Memory	39	71185788
9	Kit module cartridge, 300/500, Ex	Electronic (periphery)	37	71323010
10	Kit module cartridge, 300/500, Non-haz	Electronic (periphery)	37	71323011
11	Kit ISEM ribbon cable, 300/500	Connection (electrical)	46	71323005
12	Kit conn.terminal option A,300/500,N-haz	Terminal module	45	71323073
13	Kit conn.terminal option B, 300, Non-haz	Terminal module	45	71323074
14	Kit conn.terminal option C,300/500,N-haz	Terminal module	45	71327818
15	Kit conn.terminal option A, 300/500, Ex	Terminal module	45	71323075
16	Kit conn.terminal option B, 300/500, Ex	Terminal module	45	71323076
17	Kit conn.terminal option C, 300/500, Ex	Terminal module	45	71327819
18	Kit terminal, transm.,remote display,300	Terminals	49	71323079
19	Kit cover, sight glass, Alu,Non-haz/Exde	Cover	20	71323016
20	Kit cover,glass, Alu, -50oC,Non-haz/Exde	Cover	20	71323017
21	Kit cover, blind, Alu, Non-haz/Exde	Cover	21	71323018
22	Kit cover, blind, Alu,-50oC,Non-haz/Exde	Cover	21	71323019
23	Kit cover, sight glass, Alu, Exd	Cover	20	71323020
24	Kit cover, sight glass, Alu, -50oC, Exd	Cover	20	71323021
25	Kit cover, blind, Alu, Exd	Cover	21	71323022
26	Kit cover, blind, Alu, -50oC, Exd	Cover	21	71323023
27	Kit cover gasket, sight glass/blind	Sealing	70	71323026
28	Kit cover gasket,sight glass/blind,-50oC	Sealing	70	71323027
29	Kit cover,sight glass,polycarbonate,hyg.	Cover	20	71587949
30	Kit cover,blind/electronic compart.,hyg.	Cover	21	71587950
31	Kit cover gasket, hygienic	Sealing	70	71587951
32	Kit cover, electr.compart., Alu, Non-haz	Cover	22	71323028
33	Kit cover,electronic, Alu,- 50oC,Non-haz	Cover	22	71323029
34	Kit cover gasket,electr.compart.,Non-haz	Sealing	74	71323030
35	Kit cover gasket,electr., -50oC, Non-haz	Sealing	74	71323031
36	Kit cover, electronic compart., Alu, Ex	Cover	22	71323032
37	Kit cover, electr.compart., Alu,-50oC,Ex	Cover	22	71323033
38	Kit cover gasket, electronic compart.,Ex	Sealing	74	71323036
39	Kit cover gasket,elect.compart.,-50oC,Ex	Sealing	74	71323037
40	Kit cover, remote display, Alu	Cover	28	71323044
41	Kit cover, remote display, Alu, -50oC	Cover	28	71323045
42	Kit cover gasket, remote display	Sealing	76	71323048
43	Kit cover gasket, remote display, -50oC	Sealing	76	71323049
44	Kit interface gaskets, 300/500	Sealing	71	71323071
45	Kit interface gaskets, 300/500, -50oC	Sealing	71	71323072
46	Kit interface gaskets, Promass 300, hyg.	Sealing	71	71368491
47	Kit protect.cover option A,300/500,N-haz	Miscellaneous	11	71368488
48	Kit protective cover optionB,300,Non-haz	Miscellaneous	11	71368489
49	Kit protective cover option A,300/500,Ex	Miscellaneous	11	71323081
50	Kit protective cover option B,300/500,Ex	Miscellaneous	11	71323082
51	Kit plug M12, RJ45, L= 80mm	further parts		71450719
52	Kit plug M12, RJ45, L= 175mm	further parts		71450720
53	Spare RFID TAG	further parts		XPRFID-
54	Spare IEC TAG	further parts		XPSPEC-
55	Kit weather protection cover, 300/500		87	71343505
56	Kit wireless antenna extended range			71351317
57	Transmitter Promass 300, 8X3BXX			8X3BXX-
58	Remote Display DKX001			DKX001-
59	Connection Cable for Remote Display			DKX002-
60	Promass sensor, heating jacket, DK8003			DK8003-
