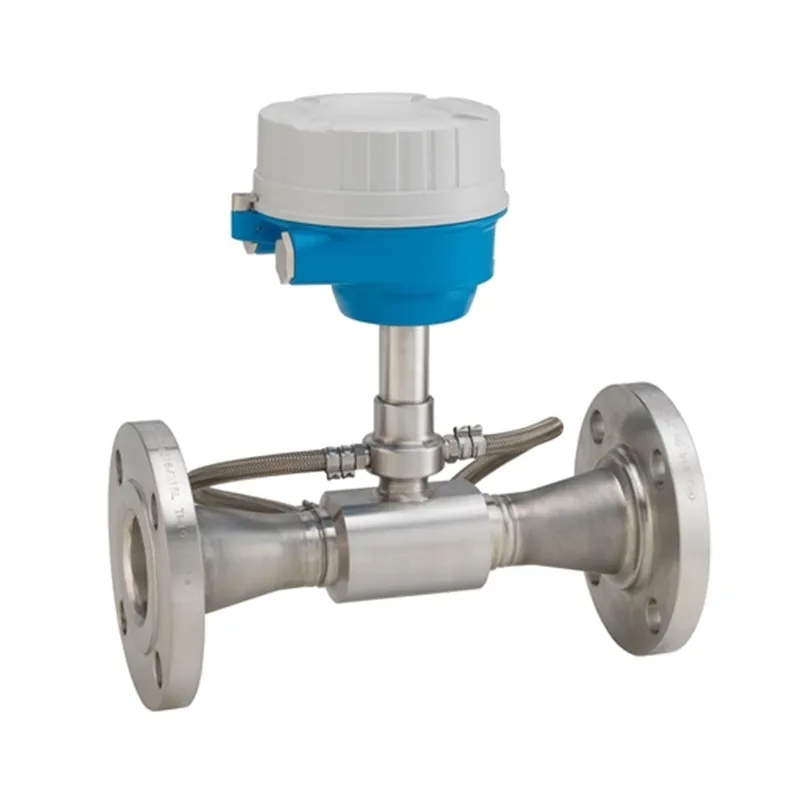

Prosonic Flow E Heat ultrasonic flowmeter | Endress Hauser E+H

Industrial, certified heat flow sensor for improved energy consumption measurement

Automation Components

Specs at a glance

Max. measurement error MID 004 accuracy class II (2%)
Measuring range 0.025 to 5 m/s (0.02 to 16.4 ft/s) 0 to 6360 dm3/min (0 to 1680 gal/min)

Medium temperature range 0 to 150° (17.8 to 302 °F)
Max. process pressure PN 25/ ASME Cl. 150
Wetted materials Measuring tube: 1.4301 (F304) Process Connection: 1.4571; 1.4404 (F316L); 1.0038 (S235JR); 1,4306 (F304L); 1.4307 (F304L); A105

Field of application

Prosonic Flow E Heat is the perfect heat flow sensor for enhanced energy management throughout all industries. It offers recognized custody transfer approvals for heating and cooling applications and is optimized for flexible industrial use.

Benefits

Full compliance with custody transfer regulations
Long-term stability – reliable sensor with robust industrial design
Energy and cost savings – optimized sensor for fully insulated pipes
Dependable flow measurement – high turndown
Effortless, safe operation – no commissioning needed, no unauthorized device access due to locked pulse output

Simple process indication – direct reading of status information via color LEDs

Increased reliability – comprehensive diagnostics

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Electronic Prosonic Flow E Heat	Electronic	30	XPD0042-
2	Kit cover, compact, Alu	Cover	21	71185789
3	Kit cover, sight glass, compact, Alu	Cover	20	71266334
4	Kit housing gaskets, compact, Alu	Sealing	70	71185795
5	Kit 10 cable glands M20x1.5 Ex	Adapter housing/cable entry	15	50098036
6	Kit 10 ext. M20x1.5/G 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098041
7	Kit 10 ext. M20x1.5/NPT 1/2″ (plug PVC)	Adapter housing/cable entry	15	50098042
8	Kit securing clamp, screw	Housing/housing accessories	12	71276494
9	Kit screw sealing, transm./sensor, alu	Housing/housing accessories	12	71276495
10	Spare RFID TAG	further parts		XPRFID-
11	Spare IEC TAG	further parts		XPSPEC-
