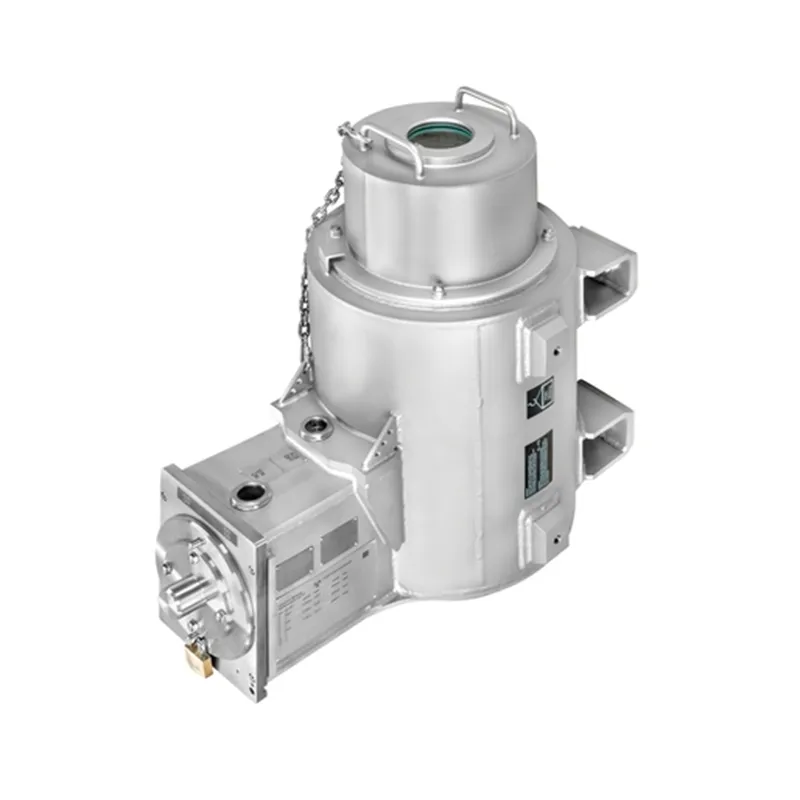

Radiometric level and density source container FQG74 | Endress Hauser E+H

Reliable, robust and easy to use radiation source container for up to 20 sources

Automation Components

Specs at a glance

Process temperature -52°C…+450°C (-61°F…+842°F)
Process pressure / max. overpressure limit Any
Main wetted parts Non-contact

Field of application

The source container FQG74 is designed to reliably hold up to 20 internal radioactive sources with highest activities during radiometric measurements. Thanks to the robust and high shielding, the source container is easy to use in straight and bent dip tube.

Benefits

Best-in-class safety (Type A approval) and radiation protection
Easy commissioning of the sources – the source position can be adjusted individually by independent ropes (maximal rope length: 30 meters)

High shielding ensures that no control areas are generally required and that installation in accessible areas is possible

A high versatility with different variants of the source container enables the use in multiple applications

Padlock for fixation the on/off switch position and to protect against theft

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Sealing Set FQG74	further parts		71677015
2	Eyelet connection M16x24, 4 pcs.	further parts		71676920
3	Sight glass, in hood Rd125x15	further parts		71677022
4	Sight glas shutter, seal	further parts		71695989
5	Cranked handle incl. Screw M8x30	further parts		71676925
6	Transportation lock, welded	further parts		71677014
7	Hood, welded, with sight glass	further parts		71677019
8	Sources safety, welded	further parts		71677023
9	Flexible Rope extension FQG63, FQG74	further parts		XPF0018-
10	Accessory source container FHG74			FHG74
