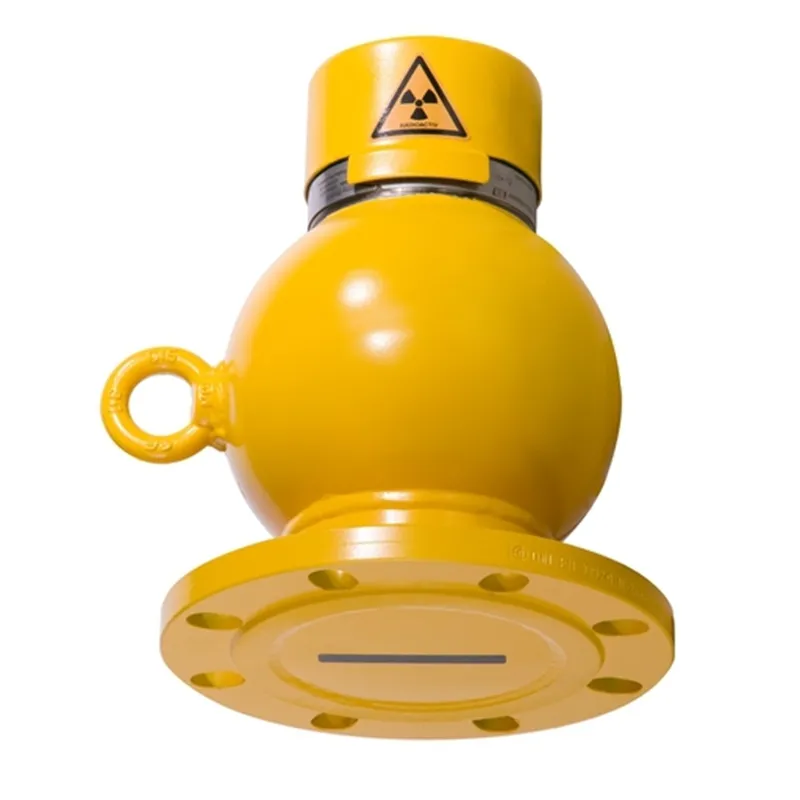

Radiometric Level/density measurement Source Container FQG61 | Endress Hauser E+H

Radiation source container with source holder for manual or pneumatic switch-on/switch-off

Automation Components

Specs at a glance

Process temperature Any
Process pressure / max. overpressure limit Any
Main wetted parts Non-contact

Field of application

The FQG61 source container is designed to hold the radioactive source during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.

Benefits

High safety level thanks to highest classification for the source supplied (DIN 25426/ISO 2919, typically classification C66646) and safe and easy source replacement

Reliable measurement due to lightweight container and almost spherical design which provides optimized screening

Compact, easy-to-mount device with the possibility of various angles of emission for optimum adaptation to the application

Manual or pneumatic switching on/off and padlock, cylinder lock or locking bolt for fixing the switching position

Switch status easily identified

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Hood FQG61/FQG62, chain, Steel	Cover	20	71099266
2	Hood FQG61/FQG62, chain, SS	Cover	20	71099267
3	Padlock FQG6x	Housing/housing accessories	22	71301302
4	Key > lock QG020/QG100, FQG6x, 2 pcs.	Sensoric	50	52018920
5	Key > lock FQG61/FQG62, FQG74, 2 pieces	Sensoric	50	71227681
6	Terminal box FQG61/FQG62	Housing/housing accessories	31	71308587
7	Set of nameplate FQG6x	further parts		71099421
8	Setting screw for density, 6x41x15mm	further parts		71383377
9	Setting screw for density, M6	further parts		71383378
10	O-ring 70,0 x 2,0 FKM 70 (-40掳C)	further parts		52013061
11	Spare RFID TAG	further parts		XPRFID-
