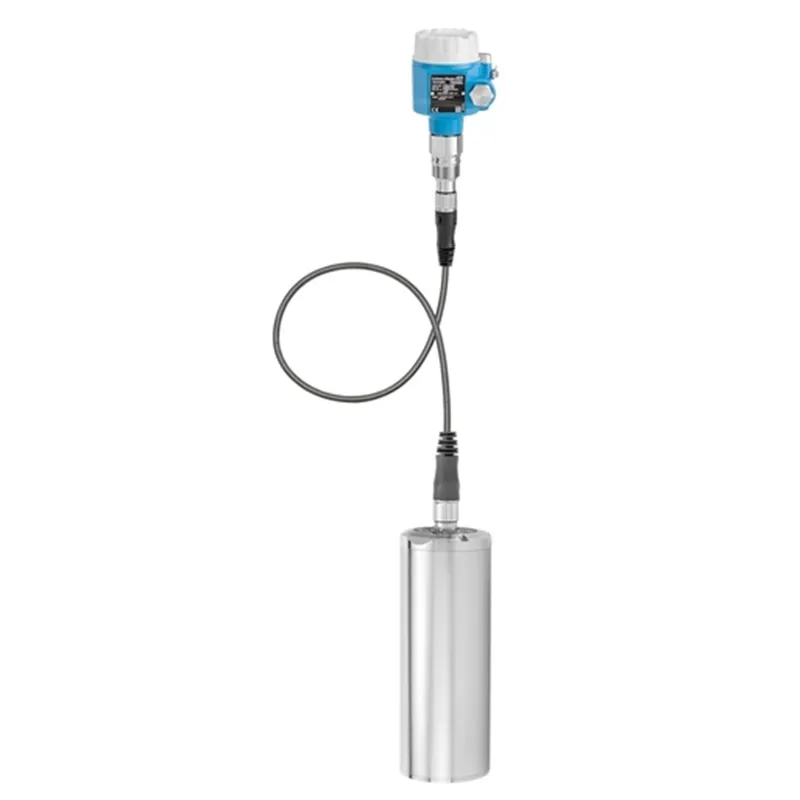

Radiometric Point level detection Gammapilot FTG20 | Endress Hauser E+H

Geiger-Mueller counter for point level detection with separate transmitter

Automation Components

Specs at a glance

Process temperature Any
Process pressure / max. overpressure limit Any
Min. density of medium Any
Min. conductivity of medium Any

Field of application

The Gammapilot FTG20 is the world’s most advanced Geiger-Mueller counter with highest available sensitivity and outstanding features. Even under extreme process conditions like high pressure, high temperature, corrosiveness, toxicity and abrasion, the radiometric measuring principle can be employed without any problems.

Benefits

Sensor and transmitter: One instrument for all measuring tasks – can be used universally due to numerous certificates and approvals

Highest availability, reliability and safety, even for extreme process and ambient conditions

No recalibration after electronics exchange because of HistoROM data management concept and automatic decay compensation

Optimum adjustment to the respective application via a variety of sensitivity versions

Relay, 8/16mA (passive – two-wire loop powered) or 4 to 20mA output for easy system integration

Aluminum or stainless steel housing for heavy-duty applications
Easy commissioning and fast, on-site operation

Spare parts & accessories

	Description	Category	Drawing No.	Order Code
1	Cover FTG20 F27 316L, gasket	Cover	20	71186946
2	Cover FTG20 F13 Ex Alu, gasket	Cover	20	71186947
3	Cover FTG20 Ex Alu, sight glass, gasket	Cover	20	71186948
4	Cover Alu, terminal comp. sensor, gask.	Cover	25	71186964
5	Cover 316L, terminal comp. sensor, gask.	Cover	25	71186965
6	Gasket sensor cover FTG20 EPDM, 5pcs.	Sealing	26	71186966
7	Sealing set EPDM,cover F13/17/18/27,5pc	Sealing	21	52004277
8	Electronics FTG20	Electronic	30	XPF0019-
9	Sensor electronics FTG20, 1x GM-tube	Electronic (sensor)	50	71186950
10	Sensor electronics FTG20, 2x GM-tube	Electronic (sensor)	50	71186951
11	Sensor electronics FTG20, 3x GM-tube	Electronic (sensor)	50	71186952
12	Cable L=5m/200inch, 2x M23, cink	Cable/cable accessories	70	71186953
13	Cable L=10m/400inch, 2x M23, cink	Cable/cable accessories	70	71186954
14	Cable L=20m/800inch, 2x M23, cink	Cable/cable accessories	70	71186955
15	Cable l=5m/200inch, 2x M23, 316L	Cable/cable accessories	70	71186956
16	Cable l=10m/400inch, 2x M23, 316L	Cable/cable accessories	70	71186957
17	Cable l=20m/800inch, 2x M23, 316L	Cable/cable accessories	70	71186958
18	Cable l=5m/200inch, 1x M23, 316L	Cable/cable accessories	70	71186959
19	Cable l=10m/400inch, 1x M23, 316L	Cable/cable accessories	70	71186960
20	Cable L=20m/800inch, 1x M23, 316L	Cable/cable accessories	70	71186963
21	Mounting set (2″/pipe 38_V4A	further parts		919806-1000
22	Spare RFID TAG	further parts		XPRFID-
23	Adapter conduit screw connection			71188127
24	Cooling tube FTG20, 316L, O-ring EPDM			71188130
25	Mounting accessory FTG20 sensor			71188131
26	Mounting accessory FTG20 cooling tube			71188133
27	Mounting accessory FTG20 Transmitter			71188134
